Automatic Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 10' cord, 115V

Automatic Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 10' cord, 115V

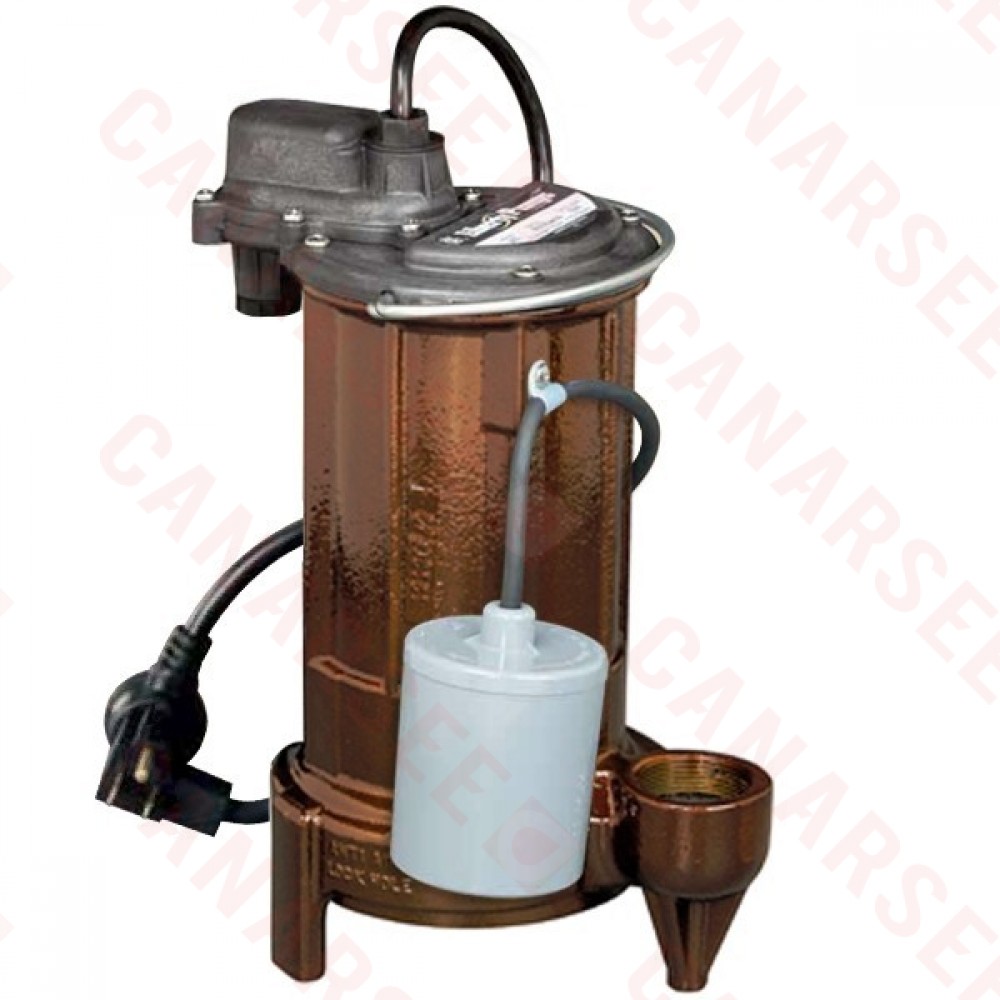

The 293 from Liberty Pumps is an Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 10' cord, 115V. This Liberty sump/effluent pump has a discharge of 1-1/2NPT and can handle solids up 3/4". The Liberty 293 will automatically turn on when the water is at 13" and automatically shut-off when it reaches 7". This effluent sump pump is best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids. The Liberty 293 automatic submersible effluent sump pump has a shut-off of 48' of head and comes with a quick disconnect 10' power cord.

The Liberty 293 provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow. Liberty's unique Uni-Body casting will provide years of reliable performance.


Features:

  • Wide-Angle Float with piggy-back Series Plug design;
  • Liberty's unique, one-piece "Uni-Body" casting;
  • Permanently lubricated upper and lower bearings;
  • Oil-filled, hermetically sealed motors with thermal overload protection;
  • Stainless steel, removable bottom screen;
  • 416 Stainless steel rotor shaft;
  • All fasteners - corrosion-resistant stainless steel;
  • Semi-Open impeller permitting passage of solids up to 3/4";
  • Epoxy powder coat finish;
  • 1-1/2" Discharge;
  • Stainless steel bottom screen - easily removable;
  • Maximum fluid temperature 140F;


Technical Specifications:

  • Discharge Size: 1 1/2" FNPT;
  • Solids Handling Capability: 3/4" dia.;
  • Listing: UL/CSA;
  • HP: 3/4;
  • Volts: 115;
  • Phase: 1;
  • Hertz: 60;
  • Amps: 10.4;
  • Flow @ 5': 78 GPM;
  • Flow @ 10': 72 GPM;
  • Flow @ 20': 58 GPM;
  • Thermal overload temp: 248F;
  • Shut-off Head: 48';
  • Cord Length: 10';
  • Minimum Sump Diameter: 14";
  • Height: 13";
  • Weight: 31 lbs;


Warranty:

  • 3 years manufacturer's warranty
Product Specs
Cord Length: 10 ft
Flow at 5 FT Head: 78 GPM
Horse Power: 3/4
Shutoff Head (ft.): 48
Type1 Automatic
Voltage 115v
