Booster Pump 3/4HP, 115V

Click Image for Gallery

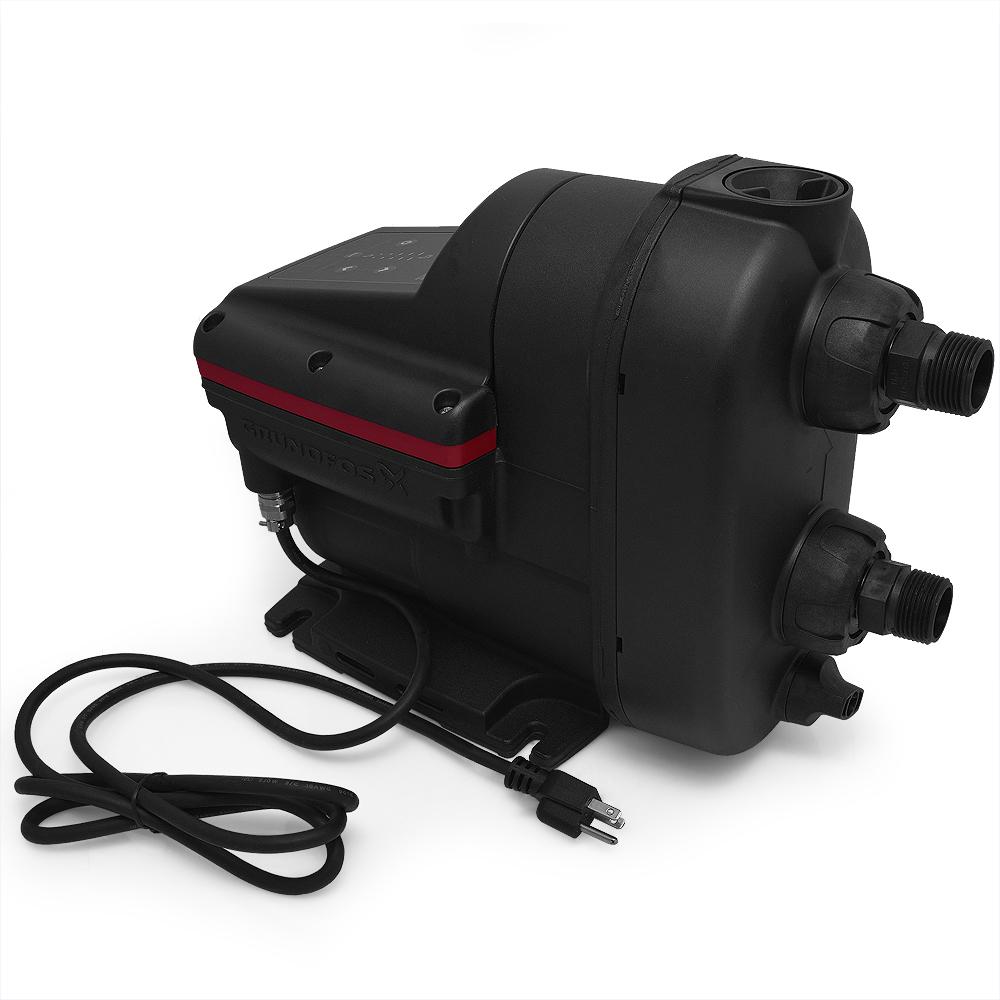

The 98562818 from Grundfos is a SCALA2 model Booster Pump, 3/4HP, 115V. It's a fully integrated water pressure booster pump designed to deliver perfect water pressure. It features pump, tank, motor, sensor, drive and non-return valve all in one compact unit that installs quickly and easily. With its water-cooled motor it offers one of the lowest noise levels in its class. Intelligent pump control adjusts performance to any demand.

Features:

Intelligent pump control;
Water-cooled, permanent magnet motor;
Dry running protection;
Self-priming;
User friendly control panel;
Outdoor-ready;
Easy sizing and selection;
Adjustable constant pressure;
Noise level of 47 dB(A) in typical use.

Technical Specifications:

Voltage: 115V;
Main frequency: 60 Hz;
Power: 560W @ 5 - 5.7A;
Connection: 1" NPT;
Maximum ambient temperature: 113°F (45°C );
Maximum liquid temperature: 113°F (45°C);
Maximum system pressure: 145 PSI (10 bar);
Maximum inlet pressure: 87 PSI (6 bar);
Maximum head: 148 ft (45 m);
Pumped liquid: Clean, fresh water and chlorinated water < 300 ppm.;
Type of cable plug: IEC type B, NEMA 5-15P;
Enclosure Rating: NEMA 3;
Factory set tank pre-charge pressure: 18 psi;
Maximum Taps: 8;
Maximum Number of Floors: 3;
Net weight: 22 lbs;
Dimension (L x W x H): 15.9" x 7.6" x 11.9" (403mm x 193mm x 302mm).

Product Specs
Connection	1" NPT
Enclosure Rating:	NEMA 3
Factory set tank pre-charge pressure:	18 psi
Horse Power	3/4 HP
Main frequency:	60 Hz
Max Inlet Pressure	87 PSI (6 bar)
Maximum Ambient Temperature:	113°F (45°C )
Maximum Head:	148 ft (45 m)
Maximum liquid temperature:	113°F (45°C)
Maximum Number of Floors:	3
Maximum system pressure:	145 PSI (10 bar)
Maximum Taps:	8
Net weight:	22 lbs
Power:	560W @ 5 - 5.7A
Type of cable plug:	IEC type B, NEMA 5-15P
Voltage	115 V

Views: 12047
Model: 98562818
MPN: 98562818
Availability: Discontinued
Usually ships: Upon availability
