Little Giant 599014 Piggyback Diaphragm Switch, 18" Cord, 110v ~ 120v

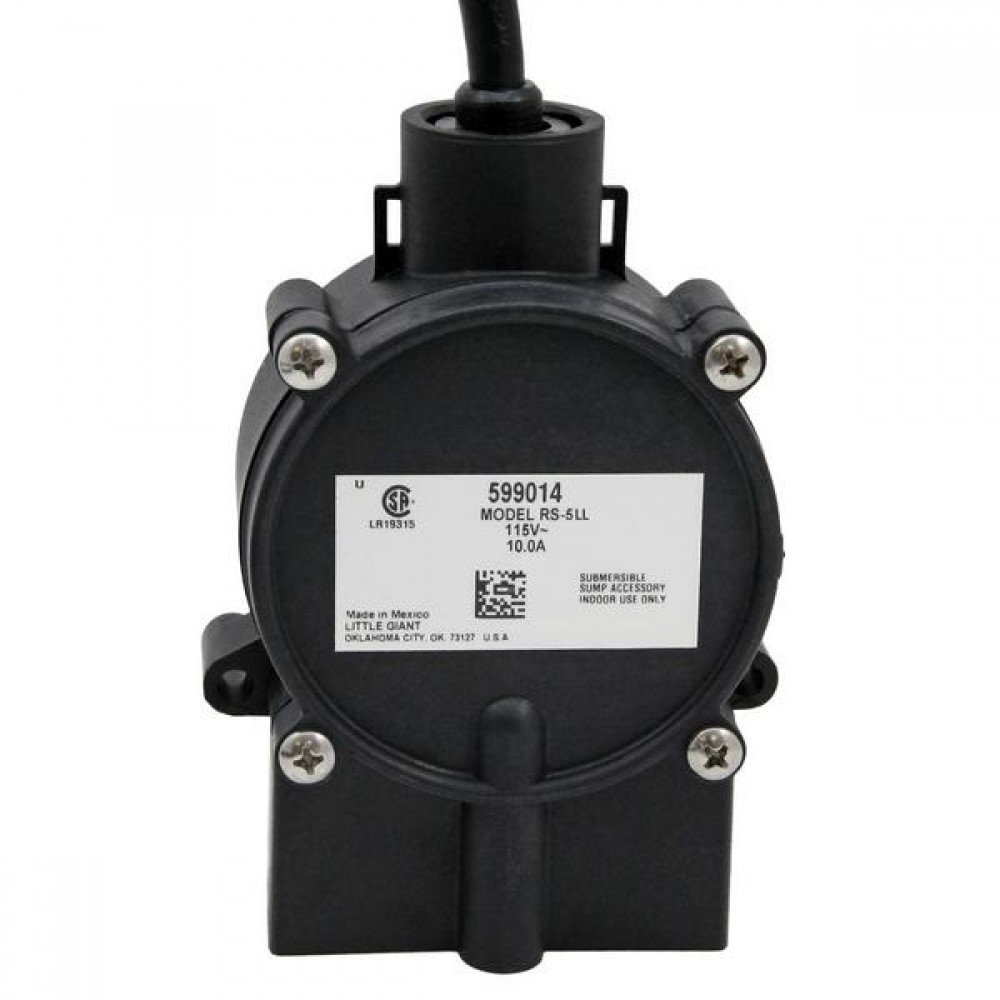

Little Giant RS-5LL (599014) Low Level Piggyback Diaphragm Switch converts any manual pump up to 1/3 HP (115V, 10 max. amps) to automatic operation. Includes 18ft power cord.
The Little Giant RS-5LL is designed to operate in water and sump applications with limited space. Can be used either by attaching it to the Little Giant 5-MSP pump or used separately with other pumps to control on-off operation of the pump. The switch is activated by pressure to a diaphragm, caused by rising water around the switch housing. When mounted to 5-MSP pump, "on" level range is 2" - 3", "off" level range is 1/2" - 1-1/2". The differential between "on-off" levels is 1-3/4" (+/- 1/2").
Little Giant Diaphragm Switches are available in a standard configuration, RS-5, and a low level RS-5LL series.
Product Specifications of Little Giant RS-5LL:
- Horsepower: up to 1/3HP;
- Cord Length: 18';
- Voltage: 115V;
- Amps: 10A;
- Weight: 1.75 lbs;
| Product Specs | |
| Amperage: | 10 |
| Application | Plumbing |
| Approvals: | UL/CSA |
| Cord Length: | 18' |
| Horse Power | 1/3 |
| Voltage | 115v |
| Weight (lbs): | 1.75 lbs |
