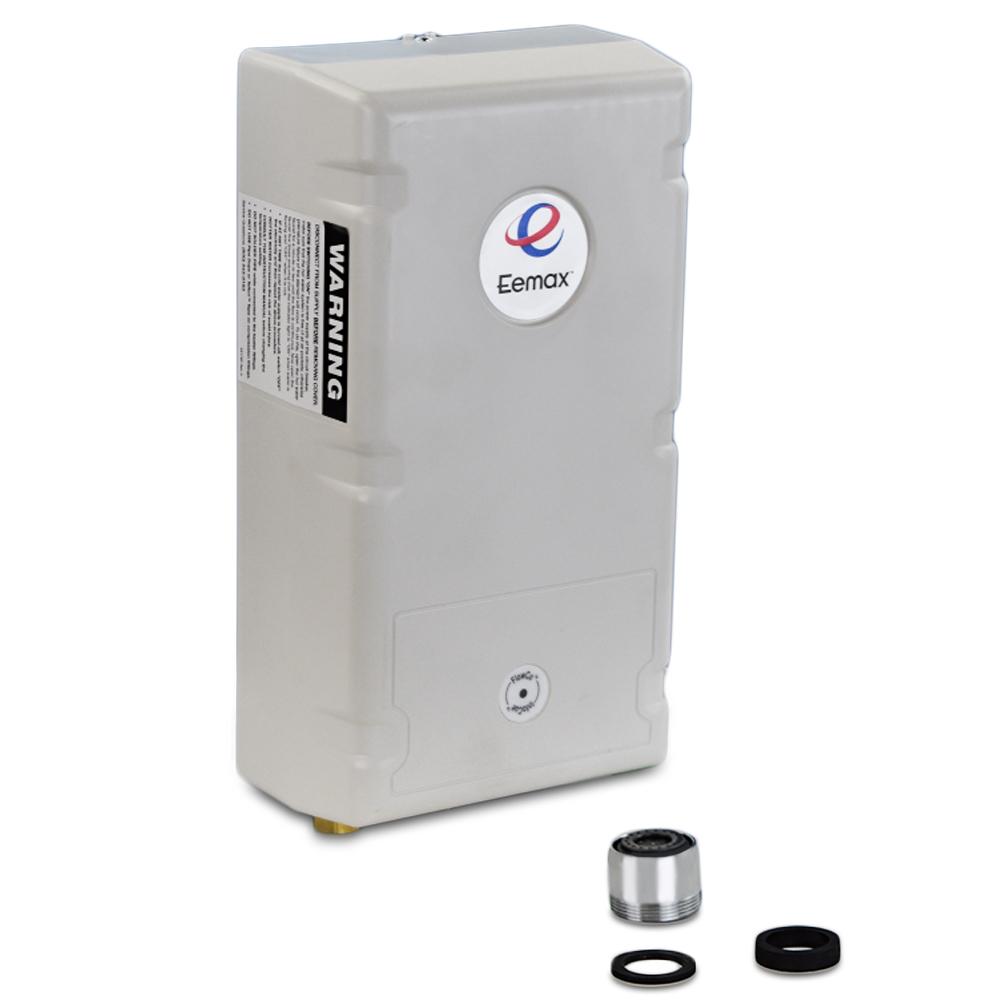

EeMax SPEX90, FlowCo Point-of-Use Electric Tankless Water Heater, 9.0 kW, 277V
Click Image for Gallery
EeMax SPEX90, FlowCo Point-of-Use Electric Tankless Water Heater, 9.0 kW, 277V..
Technical Specifications:
Features:
Technical Specifications:
- Electrical Specs: 277V (hardwired), 33A, 9.0 kW, Single-Phase
- Recommended Wire Size: 10 AWG
- Thermal Efficiency: 99%
- Water Connections: 3/8" OD Compression (accepts standard 3/8" OD copper tubing or risers, as well as supply connectors such as BrassCraft and similar)
- Min. Activation Flow Rate: 0.7 GPM
- Factory-set Outlet Temperature Cut-off: 150°F
- Max. Inlet Water Temperature: 70°F
- Hot Water Output Range (GPM at T° Rise): 2.0 GPM @ 31°F / 1.5 GPM @ 41°F / 1.0 GPM @ 61°F / 0.75 GPM @ 82°F
- Operating Pressure Range (Min - Max): 35 - 150 psi
- Dimensions (Height x Width x Depth): 10.5" x 5.25" x 3"
- Weight: 3.0 lbs
Features:
- Electric tankless technology offers endless hot water on demand
- Ultra-compact, economic and easy to install solution for point-of use applications (kitchen/bar/utility sinks, etc.), including in ADA-compliant facilities
- Packed with features such as dry-fire protection, high-temperature limit switch, exteranl LED diagnistics and many others
- No T&P relief valve needed (check local code)
- Replaceable heating element
- Can be mounted in any orientation
- Compression connections eliminate the need for soldering
- Lead-Free compliant, meets ANSI/NSF 372
- UL listed for US and Canada
- Assembled in the USA
- Views: 1888
-
- Model: SPEX90
- MPN: SPEX90
- Availability: Discontinued
- Usually ships: Upon availability
- $ 210.95
