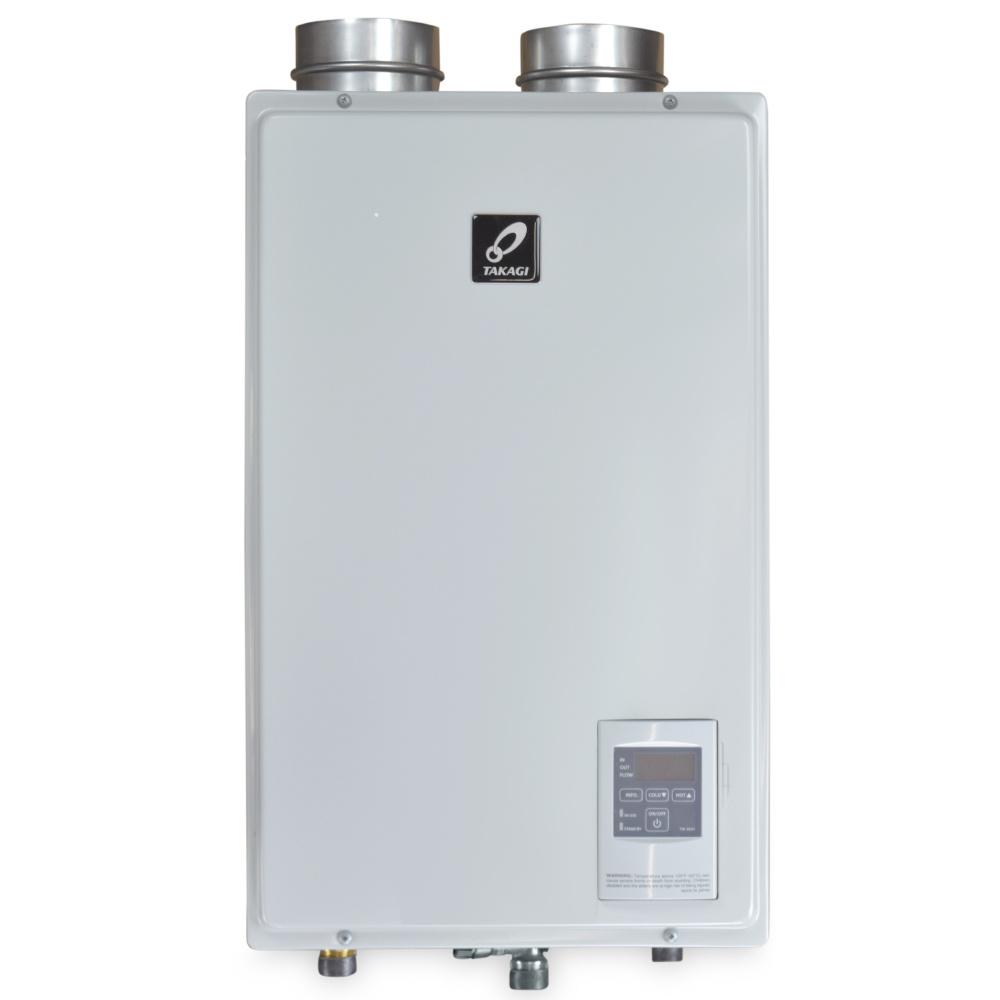

Takagi T-H3M-DV-P Indoor Tankless Water Heater, Propane, 120KBTU
Click Image for Gallery
Takagi T-H3M-DV-P model is a high-efficiency condensing indoor propane gas tankless water heater, intended for small residential applications.
Technical Specifications:
Features:
Technical Specifications:
- Shower Capacity: 2 - 1 Showers (3 GPM @ 75°F rise; 5 GPM @ 45°F rise; 6.6 GPM @ 30°F rise)
- Min Flow: 0.4 GPM
- Gas Input (Min - Max): 13,000 - 120,000 BTU/h
- Fuel Type: Propane (8.0 - 14 WC pressure)
- UEF: 0.90
- Hot & Cold Water Connections: 3/4" NPT
- Gas Connection: 1/2" NPT
- Condensate Connection: 1/2" NPT
- Flue and Air Intake Connections: 4" Default (up to 100ft of pipe length equivalent) or 3" Optional (up to 70ft)
- Vent Pipe Material: PolyPropylene (recommended), PVC (solid core only) or Category III Stainless Steel
- Installation Altitude: 0 - 2,000 (de-rate for higher elevations, up to 10,100ft max - see manual for details)
- Power Supply: 120V, 60Hz (factory wired plug-in cord)
- Dimensions: 13-7/8" Wide x 24" High x 10-13/16" Deep
- Weight: 50 lbs
Features:
- Fully modulating, high-efficiency condensing design with copper primary and 316L secondary heat exchangers, 0.90 UEF
- Factory-installed power cord with plug
- Up to 6.6 GPM max flow rate
- Built-in safety features include freeze protection, air-fuel ratio sensor, exhaust & water temperature control, overheat cut-off fuse
- Flexibility in venting options (Cat. IV - PVC, CPVC, PP or Cat III - St. Steel)
- Electronic ignition - no pilot light
- Temperature controller on front panel
- Wall-mounting design with integrated brackets
- AHRI certified, Low-Lead compliant, Low NOx (SCAQMD Rule 1146.2 - California & Texas, NG models only)
- Views: 500
-
- Model: T-H3M-DV-P
- MPN: T-H3M-DV-P
- Availability: Out Of Stock
- Usually ships: within 1 business day(s)
- $ 790.95
- 4 or more $ 770.95
