40 Gal, ProLine Direct Vent Water Heater (NG), 6-Yr Wrty
Click Image for Gallery

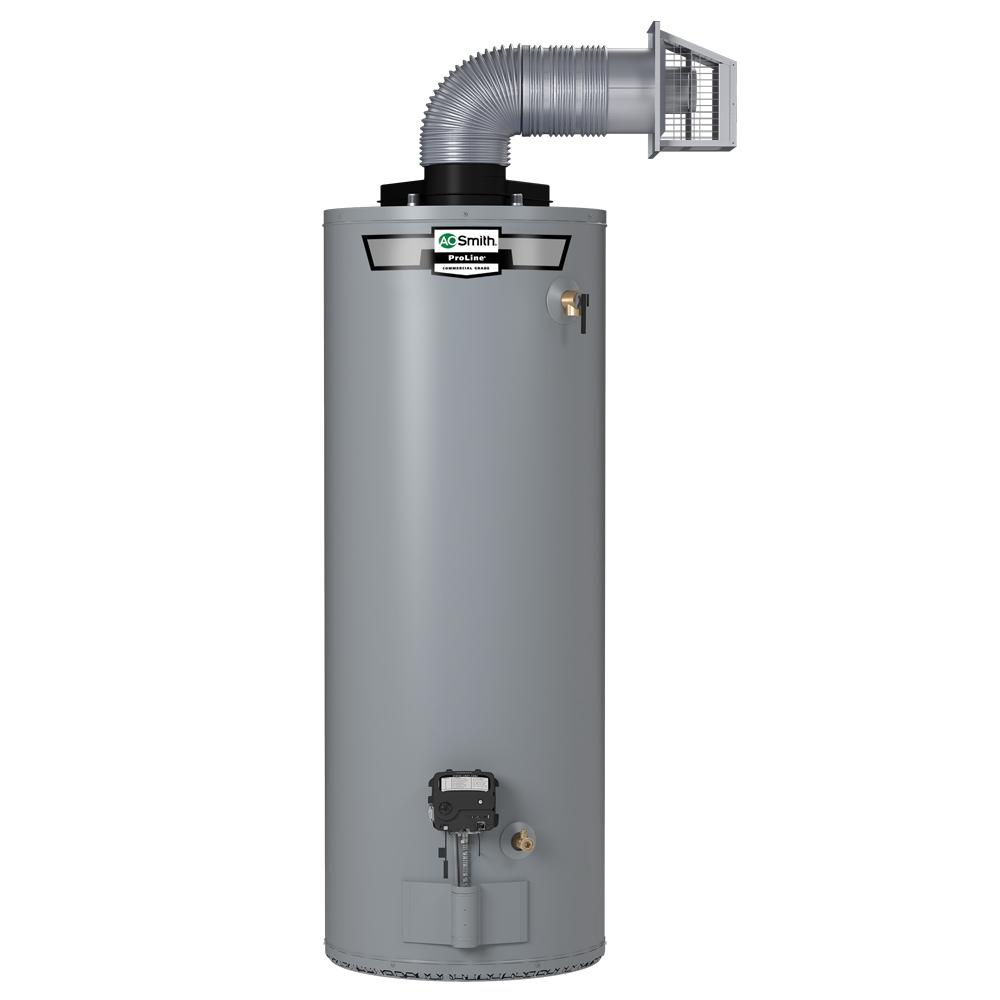

AO Smith ProLine series GDV-40 model is a 40-gallon, natural gas (NG), direct vent residential water heater with 6-year warranty.
Technical Specifications:
Features:
Technical Specifications:
- Fuel: Natural Gas (NG)
- Nominal Capacity (Gallons): 40
- Rated Storage Volume (Gallons): 39
- Input (BTU): 38,000
- Uniform Energy Factor: 0.60
- 1st Hour Rating (Gallons): 64
- Recovery @ 90°F Rise (GPH): 41
- Anode: CoreGard Sacrificial
- NOx Emissions: less than 40ng/J
- Water Connections: 3/4" NPT
- Water Connections Location: Top
- Max Working Pressure: 150 PSI
- Ignition Type: Piezo push button ignitor
- Vent Type: Direct
- Vent Size: 3"/6" Co-Axial Pipe
- Max Vent Run: 80" horizontal, 72" vertical
- Elevation: 7,700 ft
- Dimensions (Diameter x Height): 22" x 49-3/4" (64" w/ Draft Hood installed)
- Insulation Thickness: 2"
- Weight (lbs): 178.
Features:
- Direct vent (draws air from outdoors), sealed combusion design
- No power required
- Blue Diamond glass coating prevents early corrosion of the tank, extending it''s life
- Dynaclean diffuser dip tube reduces sediment build-up and improves long-term efficiency
- Coregard anode rod with stainless steel core
- Heat trap nipple reduces stand-by energy loss
- Push-button piezo ignitor
- Vent kit sold separately.
- Views: 1107
-
- Model: GDV-40
- MPN: GDV-40
- Availability: Discontinued
- Usually ships: Upon availability
- $ 1 965.17
