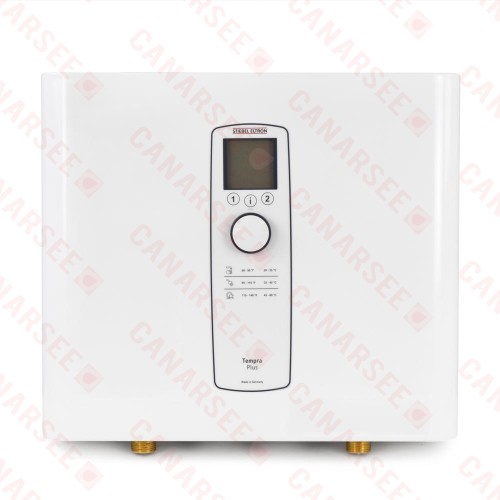

Tempra 12 Plus Whole House Electric Tankless Water Heater 12.0/9.0kW, 240/208V
  • Voltage: 240 or 208V (hardwired)
  • Output: 12.0kW at 240V (9.0kW at 208V)
  • Amperage: 50A at 240V (44A at 208V)
  • Number & min. recommended size of curcuit breakers: 1x50A
  • Number of runs & min. recommended wire size: 1x8/2 AWG
  • Water Connections: 3/4" NPT
  • Min. activation flow rate: 0.37 gpm
  • Nominal water volume: 0.13 gal
  • Max. temperature increase: 240V - 54F @ 1.50 GPM, 36F @ 2.25 GPM, 27F @ 3.00 GPM
  • Max. temperature increase: 208V - 41F @ 1.50 GPM, 27F @ 2.25 GPM, 20F @ 3.00 GPM
  • Max. inlet water temperature: 131F
  • Working pressure: 150 psi
  • Tested to pressure: 300 psi
  • Dimensions (Height x Width x Depth): 14-1/2" x 16-5/8" x 4-5/8"
  • Weight: 13.5 lb

7 years leakage / 3 years parts

Write a review

Please login or register to review
  • Views: 1291
  • Stiebel Eltron Tempra 12 Plus, Whole House Electric Tankless Water Heater, 12.0/9.0kW, 240/208V QR Code
    QR
  • Model: TEMPRA-12-PLUS
  • MPN: TEMPRA-12-PLUS
  • Availability: 1
  • $ 539.00
