50 gal, ProLine XE Power Vent Water Heater (NG)

50 gal, ProLine XE Power Vent Water Heater (NG)

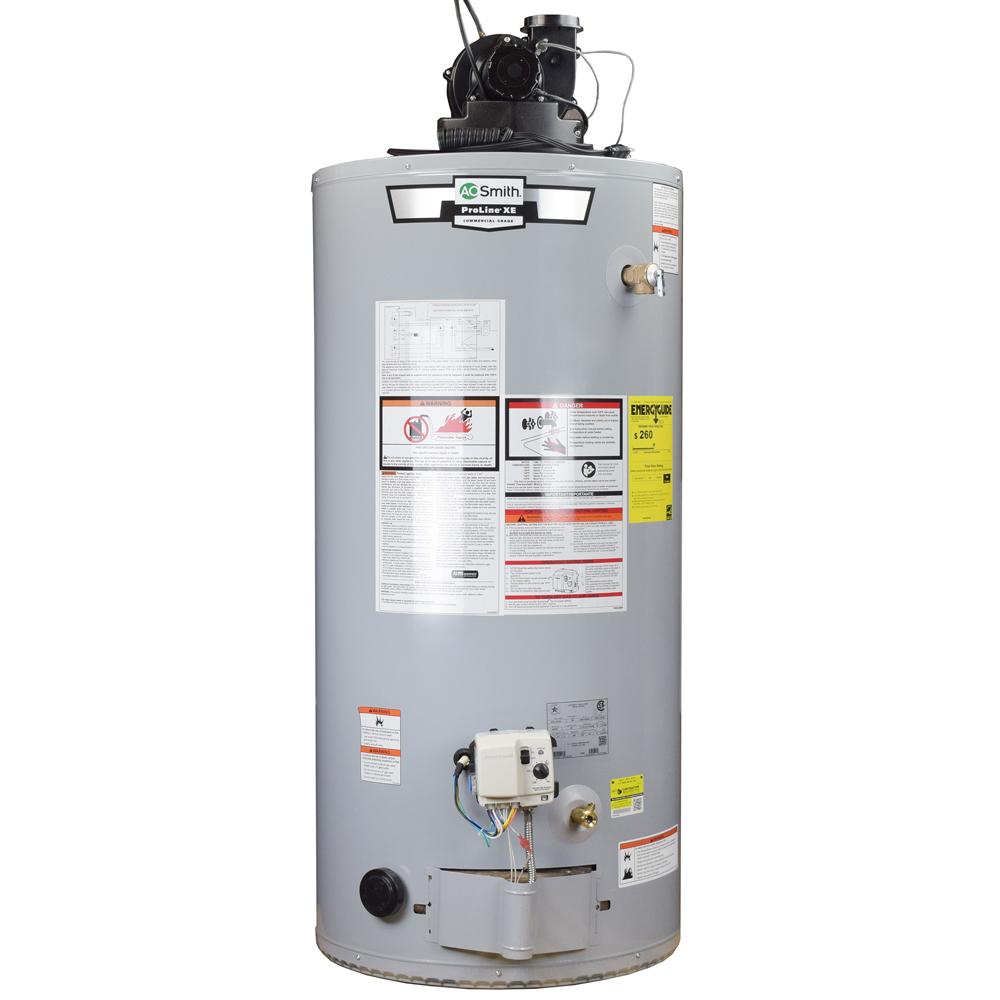

The GPVL-50 from AO Smith is a 50 gal, ProLine XE Power Vent Water Heater (NG).


Features:

  • Energy Star qualified;
  • 3-position rotatable blower accepts 4" PVC, CPVC, ABS or polypropylene;
  • Built-in flammable vapor ignition protection;
  • Heat traps on both inlet and outlet reduce stand-by heat loss;
  • 2" thick non-CFC foam improves overall efficiency;
  • Hot surface ignitor.


Technical Specifications:

  • Fuel: Natural Gas (NG);
  • Nominal Capacity (Gallons): 50;
  • Rated Storage Volume (Gallons): 49;
  • Input (BTU): 40,000;
  • Uniform Energy Factor: 0.72;
  • 1st Hour Rating (Gallons): 93;
  • Recovery @ 90°F Rise (GPH): 45;
  • Anode: Standard;
  • NOx Emissions: less than 40ng/J;
  • Water Connections: 3/4" NPT;
  • Water Connections Location: Top;
  • Max Working Pressure: 150 PSI;
  • Ignition Type: Electronic;
  • Vent Type: Power;
  • Venting Size: 2", 3", 4";
  • Vent Material: PVC, CPVC, ABS and PP;
  • Max Vent Run: 50ft (for 2"), 125ft (for 3"), 180ft (for 4")';
  • LEED Rating: 1;
  • Dimensions (Diameter x Height): 24" x 50-3/4" (60-1/8" w/ Blower installed);
  • Weight (lbs): 198.


Warranty:

  • 6-Year Limited Tank Warranty / 6-Year Limited Parts Warranty



Product Specs
1st Hour Rating (Gallons) 93
Anode: Standard
Fuel: Natural Gas (NG)
Ignition Type: Electronic
Input (BTU): 40,000
LEED Rating: 1
Max Working Pressure: 150 PSI
Nominal Capacity (Gallons): 50
NOx Emissions: less than 40ng/J
Rated Storage Volume (Gallons): 49
Recovery @ 90°F Rise (GPH): 45
Uniform Energy Factor: 0.72
Vent Material PVC, CPVC, ABS and PP
Vent Type Power
Venting Size 2", 3", 4"
Water Connections Location: Top
Water Connections: 3/4" NPT
Weight (lbs): 198.
