98 Gal, ProLine Atmospheric Vent Water Heater (NG), 6-Yr Wrty
Click Image for Gallery

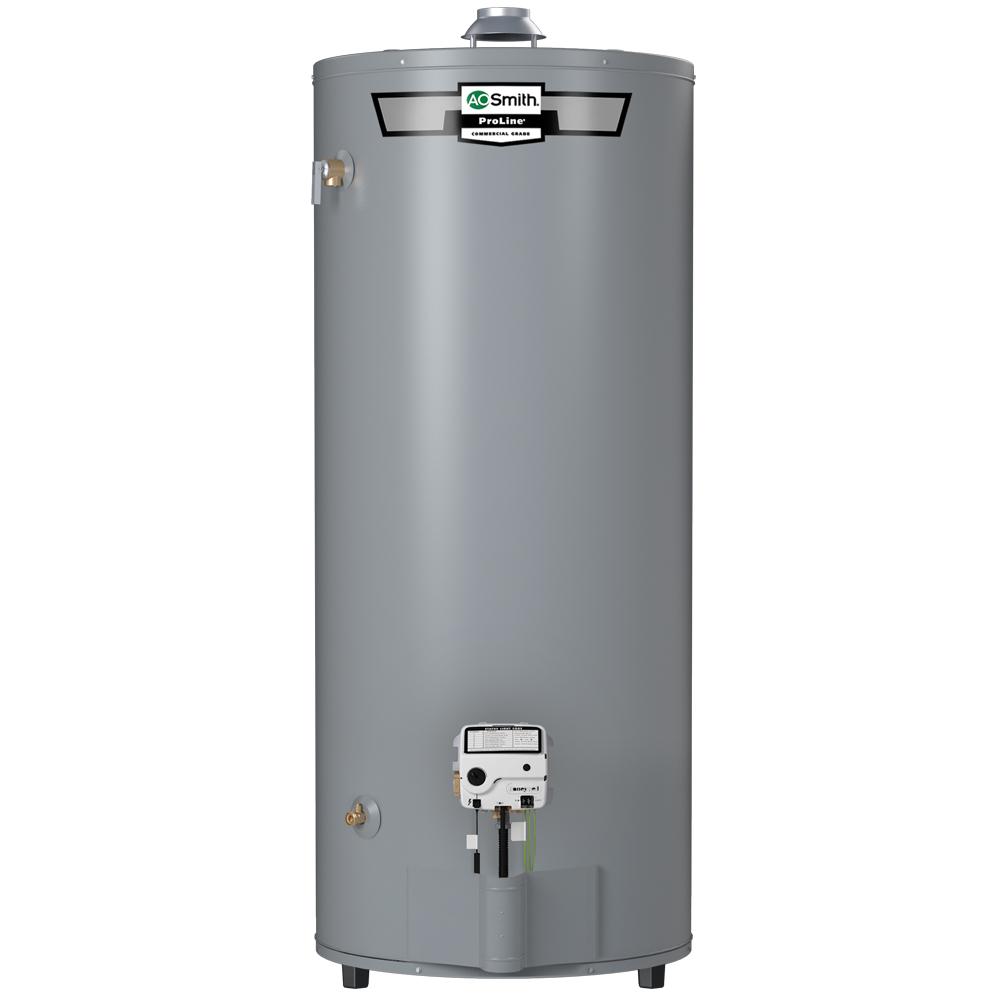

AO Smith ProLine FCG-100 model is a 98-Gallon, natural gas (NG) atmospheric vent residential water heater with 6-year warranty.
Technical Specifications:
Features:
Technical Specifications:
- Fuel: Natural Gas (NG)
- Nominal Capacity (Gallons): 98
- Rated Storage Volume (Gallons): 95
- Input (BTU): 75,100
- Uniform Energy Factor: 0.58
- 1st Hour Rating (Gallons): 170
- Recovery @ 90°F Rise (GPH): 81
- Standby loss (BTU/Hour): 998
- Anode: CoreGard Aluminum
- NOx Emissions: less than 40ng/J
- Water Connections: 1-1/4" NPT
- Water Connections Location: Top
- Gas Connection: 1/2" NPT
- Max Working Pressure: 150 PSI
- Ignition Type: Piezo
- Vent Type: Atmospheric
- Venting Size: 4"
- Vent Material: B-Vent
- Dimensions (Diameter x Height): 16" x 66-1/2" (68-1/2" w/ Draft Hood installed)
- Weight (lbs): 340.
Features:
- Blue Diamond glass coating prevents early corrosion of the tank, extending it''s life
- Dynaclean diffuser dip tube reduces sediment build-up and improves long-term efficiency
- Coregard anode rod with stainless steel core
- Heat trap nipple reduces stand-by energy loss
- Push-button piezo ignitor
- Fully automatic controls w/ safety shutoff.
- Views: 803
-
- Model: FCG-100
- MPN: FCG-100
- Availability: 50 - 60 Days
- Usually ships: Upon availability
- $ 3 085.95
