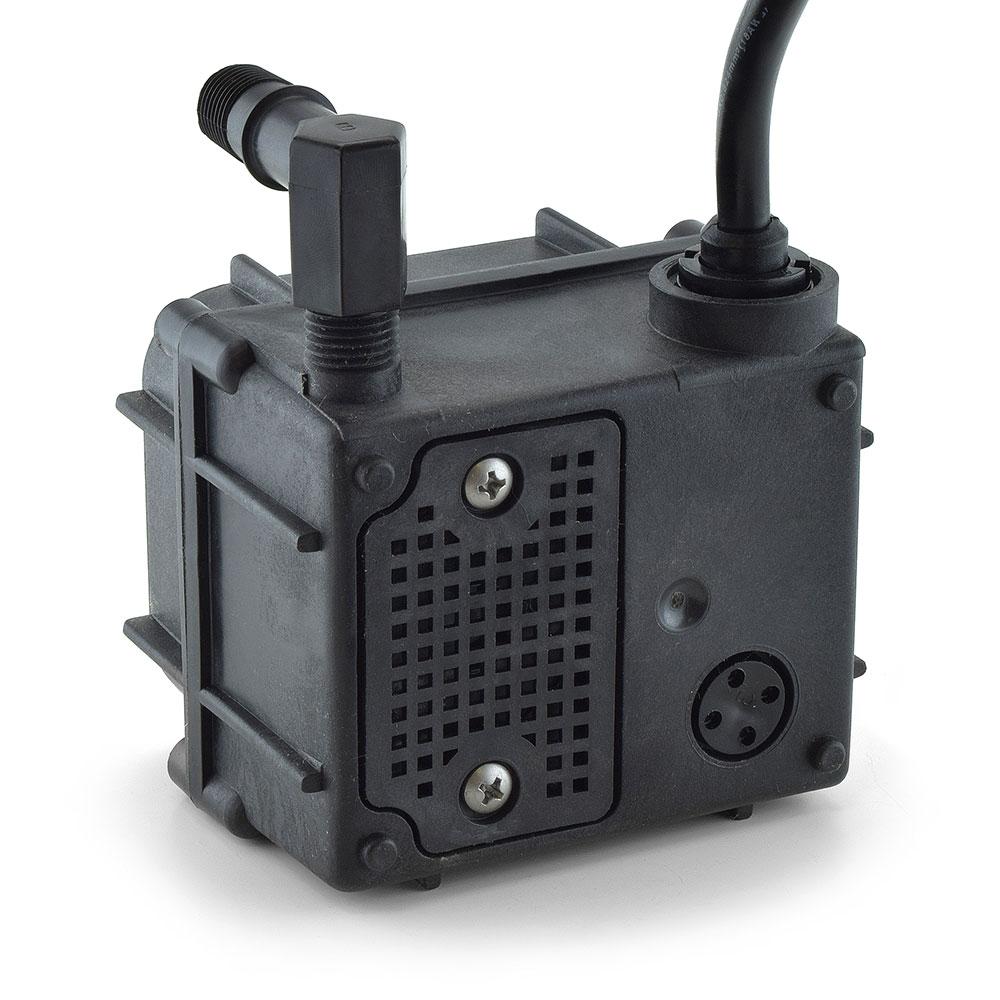

Manual Oil-Filled Submersible Pump, 1/160HP, 6' cord, 115V
The 523003 from Little Giant is a Manual Oil-Filled Small Submersible Pump w/ 6' cord, 1/160HP, 115V. Its 1/4" MNPT outlet has 90 elbow accessory and accepts 1/2" I.D. tubing.
This Little Giant Pump is for submersible use only. Applications include aquariums, swimming pools, water displays, ice makers, air conditioners, boat bailing, fuel oil transfer, circulating water for welding and pipe threading machines, pumping mild chemicals such as soap solutions, acids, plating solutions and fertilizers.
The compact Little Giant P-AAA 120 GPH pump features 4.6' shut-off head capability, and screened inlet.
Features:
- Corrosion resistant nylon body;
- Oil-filled motor;
- 4.6' maximum lift;
- Impedance protected;
- 120 GPH @ 1ft;
- Impedance protected;
- Screened inlet;
Product Specifications of Little Giant P-AAA (523003):
- Horsepower: 1/160HP;
- Flow: 120 GPH @ 1' of Head;
- Cord Length: 6';
- Shut Off Head: 4.6';
- Voltage 115V;
- Intermittent Liquid Temp.: up to 120F;
- Discharge: 1/4" MNPT;
- Hertz: 60Hz;
- Amps: 0.5A;
- Watts: 30W;
- Weight: 3 lbs;
- Height: 3.88";
- Width: 3";
- Length: 3.88";
- Certification: UL.
Warranty:
- 1 year manufacturer's warranty.
| Product Specs | |
| Amperage: | 0.5 |
| Application | Recirculation |
| Cord Length: | 6' |
| Discharge: | 1/4" MNPT |
| Flow at 1 FT Head: | 120 GPH |
| Hertz: | 60 |
| Horse Power | 1/160 |
| Shutoff Head (ft.): | 4.6' |
| Type: | Manual |
| Voltage | 115v |
| Wattage | 30 |
- Views: 6609
-
- Model: 523003
- MPN: 523003
- Availability: Discontinued
- Usually ships: Upon availability
- $ 71.95
