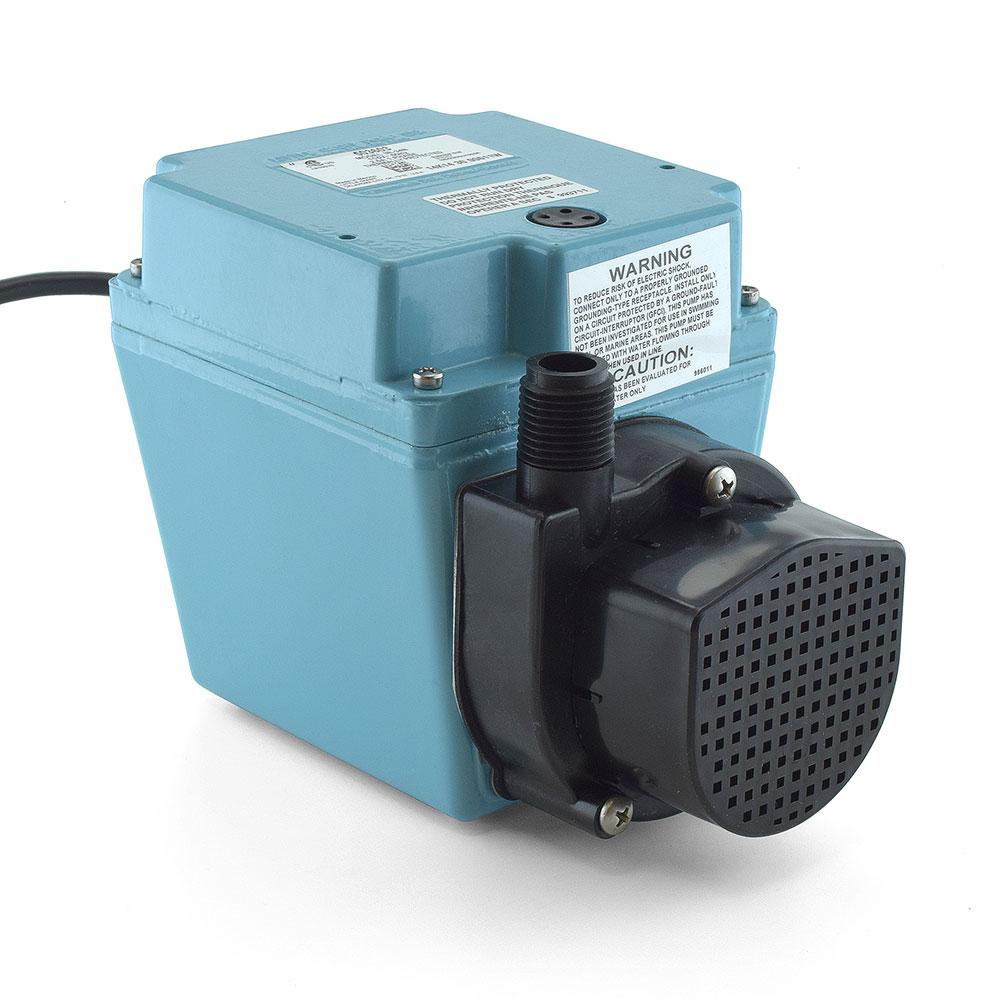

Manual Oil-Filled Small Submersible Pump w/ 10' cord, 1/15HP, 115V

Click Image for Gallery

The 503603 from Little Giant is a Manual Oil-Filled Small Submersible Pump w/ 10ft cord, 1/15HP, 115V. This model is best used in statuary fountains, water displays, air conditioners, machine tool coolants and more. Not recommended for aquariums, swimming pools and fuel oil transfer.

Features:

For submersed or in-line use;
Epoxy coated die-cast aluminum housing;
Oil-filled motor;
20.3' maximum lift;
208 watts;
1/2" MNPT discharge;
Thermal overload protection.

Technical Specifications:

HorsePower: 1/15HP;
Max Flow: 670 GPH @ 1' of Head;
Cord Length: 10ft;
Shut Off @ 20.3ft of head;
Voltage: 115V;
Hertz: 60Hz;
Amps: 2.5A;
Watts: 208W;
Weight: 8.25 lbs;
Dimensions (H x W x L): 5.5" x 4.5" x 7";
Certification: UL/C-CSA.

Warranty:

1 year manufacturer's warranty.

Product Specs
Amperage:	2.5
Application	Recirculation
Cord Length:	10'
Discharge:	1/2" MNPT
Flow at 1 FT Head:	670 GPH
Hertz:	60
Horse Power	1/15
Shutoff Head (ft.):	20.3'
Type:	Manual
Voltage	115v
Wattage	208

Views: 11254
Model: 503603
MPN: 503603
Availability: Discontinued
