Automatic Sewage Pump w/ Vertical Float Switch, 1/2HP, 20' cord, 115V

Automatic Sewage Pump w/ Vertical Float Switch, 1/2HP, 20' cord, 115V

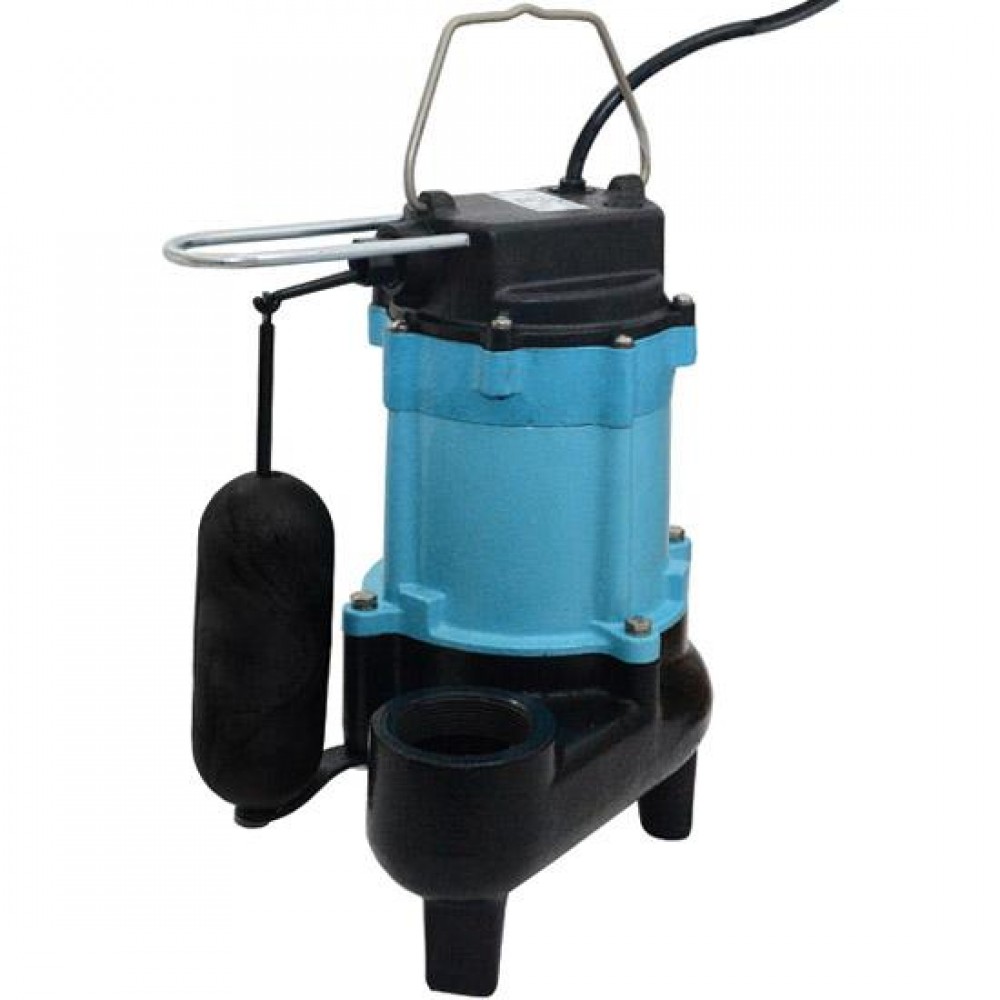

The 511346 from Little Giant is an Automatic Sewage Pump w/ Vertical Float Switch, 1/2HP, 20' cord, 115V. The switch activates the pump when water level is within 9" - 12" and deactivates it when the water level drops to 3" - 6".
The Little Giant 10SN-CIA-SFS has 2" FNPT discharge and handles liquids and solid waste materials up to 2" diameter.
Little Giant Sewage Pumps 10SN Series feature cast iron housing with protective epoxy coating for corrosion and rust resistance.

Head (ft) Flow (GPH) Shutoff (ft)
5 120 24
10 95 23
15 70 22


Features:
  • 1/2 HP PSC motor with overload protection;
  • Designed for continuous duty;
  • Epoxy coated cast iron housing and volute (2" FNPT ) discharge;
  • Epoxy coated cast iron/theromplastic cover;
  • Nitrile with carbon and ceramic faces;
  • Upper sintered sleeve and lower ball bearings;
  • Non-clog thermoplastic elastomer impeller;
  • Handles 2" solids;
  • Integral float switch: On levels: 9" -12" Off levels: 3" - 6"
  • cCSAus listed.


Technical Specifications:
  • Horsepower: 1/2HP;
  • Flow: 120 GPM @ 5' of Head;
  • Cord Length: 20';
  • Shut Off Head: 25';
  • Voltage 115V;
  • Intake: 2";
  • Discharge: 2" FNPT;
  • Hertz: 60Hz;
  • Amps: 9.5A;
  • Watts: 1000W;
  • Weight: 36.5 lbs;
  • Height: 13.1";
  • Width: 9.25 ";
  • Length: 10.54";


Warranty:
  • 2 years from the date of purchase.
Product Specs
Amperage: 9.5
Application Sewage Waste Transfer
Approvals: UL/CSA
Cord Length: 20 ft
Dimensions: 13.1"H x 10.54"L x 9.25"W
Discharge: 2"
Flow at 10 FT Head: 95 GPM
Flow at 15 FT Head: 70 GPM
Flow at 5 FT Head: 120 GPM
Horse Power 1/2
Max Pressure (PSI): 10.9
Shutoff Head (ft.): 25
Solids Size: 2"
Type: Automatic
Voltage 115v
Wattage 1000
Weight (lbs): 37.5
