Automatic Sewage Pump w/ Wide Angle Float Switch, 1-1/2HP, 25' cord, 208/230V, 3-Phase

Automatic Sewage Pump w/ Wide Angle Float Switch, 1-1/2HP, 25' cord, 208/230V, 3-Phase

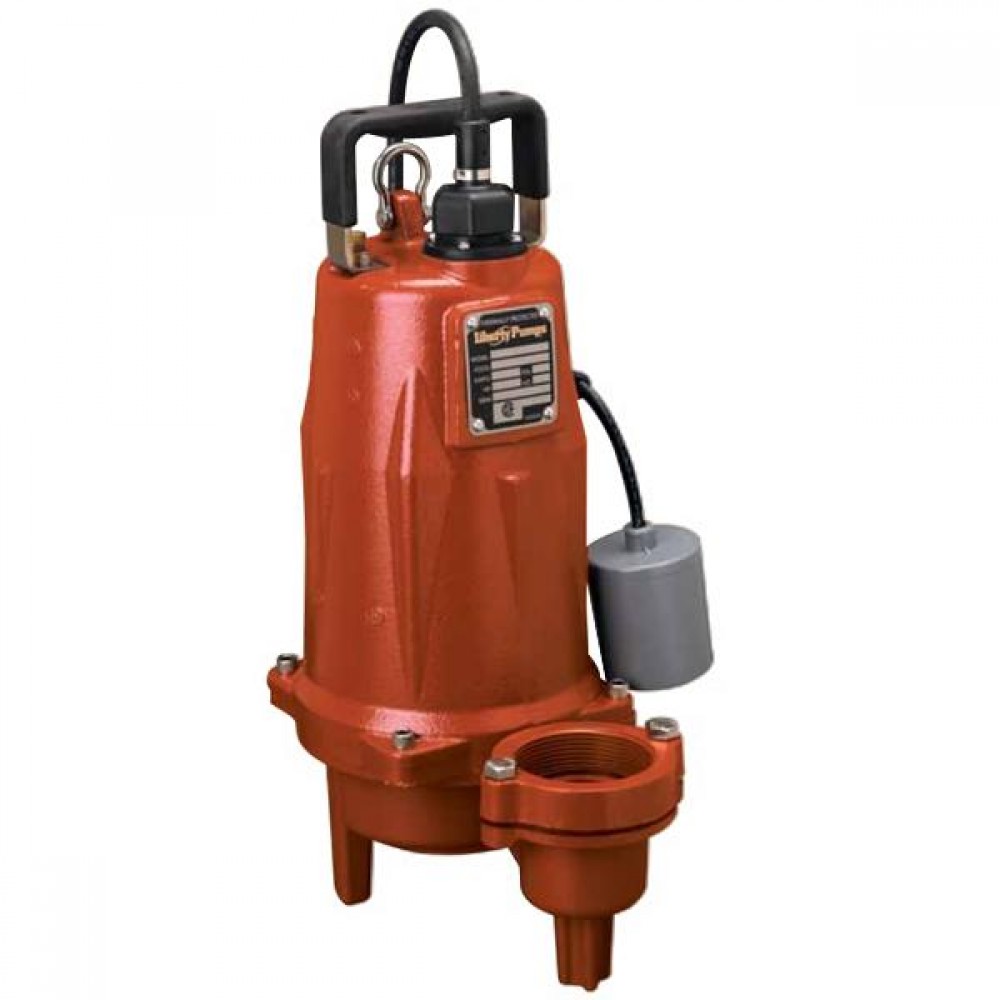

The LEH152A2-2 from Liberty Pumps is an Automatic Sewage Pump w/ Wide Angle Float, 1-1/2HP, 25' cord, 208/230V. The Liberty LEH152A2 has a 70' shut-off head and a 2" FNPT flanged discharge. This high head sewage pump is also equipped with a wide-angle float switch with a piggy-back plug for manual operation. This switch has a turn-on level of approximately 12" to 16" and a turn-off level of 6' above the bottom of the basin. Other pumping differentials may be obtained by tethering the switch cord to the discharge pipe on this Liberty high head sewage pump.

The Liberty submersible high head sewage pump features 2-vane, semi-open impellers that allow passage of 2" solids. This Liberty high head sewage pump is constructed of heavy cast iron with a tough epoxy powder coat finish and stainless steel fasteners for years of trouble-free performance. The Liberty LEH152A2 high head sewage pumps must only be used in applications with a minimum of 20'.


Features:

  • 70' Maximum TDH
  • Rugged 2 vane, semi-open cast iron impellers
  • Cast iron housings and volute with all stainless and brass fasteners
  • 416 stainless steel rotor shaft
  • Oil-filled, hermetically sealed motors
  • Built-in thermal protection on single phase models
  • Permanently lubricated upper and lower ball bearings
  • Unitized shaft seals
  • Single float mechanical level control with series plug for manual bypass operation-standard on single-phase automatic models
  • Adjustable pumping range
  • Quick-disconnect 25' standard power cord allows replacement of cord in seconds without breaking seals to motor


Technical Specifications:

  • Horsepower: 1-1/2HP
  • Cord length: 25'
  • Discharge: 2" FNPT Flanged
  • Solids Handling: up to 2"
  • Shut-off Head: 70'
  • Voltage: 208-230V
  • Amps: 15
  • Hertz: 60 Hz
  • Phase: 1
  • RPM: 3450
  • Maximum fluid temperature: 140°F
  • Height: 21"
  • Width: 13"
  • Weight: 92 lbs.
  • Minimum basin diameter: 18"
  • Minimum basin depth: 24"


Warranty:

  • 3 years manufacturer's warranty
Product Specs
Cord Length: 25'
Discharge: 2" FNPT
Horse Power: 1-1/2
Shutoff Head (ft.): 70 ft
Type1 Automatic
Voltage 208v
