Magnetic Drive Pump for Mildly Corrosive, 1/8HP, 115V

Magnetic Drive Pump for Mildly Corrosive, 1/8HP, 115V

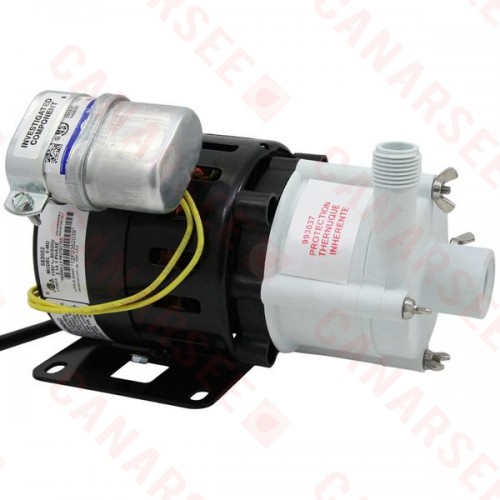

The 583002 from Little Giant is a Magnetic Drive Pump for Mildly Corrosive, 1/8HP, 115V. Designed for in-line, non-submersed use in environments such as hospitals, chemical companies, photo labs, dry cleaning plants, car washes, machine shops, laboratories, manufacturing plants, print shops and wineries.

5-MD Magnetic Drive Pump features a 1/2" MNPT discharge with head capacity of 35'. Little Giant 5-MD with a 1/2" FNPT Intake was specifically engineered to handle mildly corrosive fluids with high efficiency and long term dependability. The newest 5-MD has glass-filled polypropylene magnet housing and volute to ensure ultimate chemical resistance. Only chemical resistant materials are in contact with fluids. Little Giant 5-MD boasts Glass-filled polypropylene and ceramagnet "A" (ceramic type) Impeller; leakproof and seal-less magnetic drive, Fluid Temperature operation up to 150F and Ambient Air Temperature up to 77F. Titanium shaft, thrust washers and Nitrile O-ring seal provide a longer service life, excellent wear and trouble-free service. Little Giant's powerful 1/8 HP PSC Open FC, thermally protected, totally enclosed, fan-cooled motor with ball bearings and thermal overload protection delivers 12.5 GPM of fluids at 9'. Pumping heads of 5-MD are easily rotated, cleaned or serviced with no special tools required.


Features:

  • Specific Gravity - up to 1.1';
  • Ambient Air Temperature - up to 77F;
  • Fluid Temperature - Up to 150F;
  • Sleeve Bearings;
  • 6' power cord and 3-prong molded plug;
  • Listings: UR/C-CSA;


Technical Specifications:

  • Horsepower: 1/8 HP (3250 RPM);
  • Maximum flow rate: 15.1 GPM (905 GPM @ 1');
  • Cord Length: 6';
  • Intake: 1/2" FNPT;
  • Discharge: 1/2" MNPT;
  • Shut Off: 34.6;
  • Voltage: 115 V;
  • Hertz: 60 Hz;
  • Amps: 2.1 A;
  • Watts: 200 W;
  • Weight: 9.25 lbs;
  • Height: 5.6;
  • Width: 5.4;
  • Length: 8.3;


Warranty:

  • 1 year manufacturer's warranty.



Product Specs
Amperage: 2.1
Application Mild Acids
Capacity (Gallons): 15.1
Cord Length: 6 Feet
Dimensions: 5.6"H x 5.4"W x 8.3"L
Flow at 1 FT Head: 905 GPH
Hertz: 50/60
Horse Power 1/8
RPM: 3250
Shutoff Head (ft.): 34.6'
Voltage 115v
Wattage 200
Weight (lbs): 9.25 lbs
