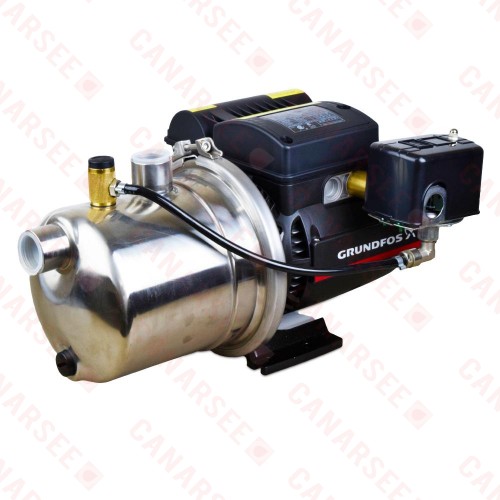

JP18-07-177 Stainless Steel Shallow Well Jet Pump, 3/4 HP, 115/230V
Click Image for Gallery
JP 18-07-177 Stainless Steel Jet Pump, 3/4 HP, 115/230V
Technical Specifications:
Features:
Technical Specifications:
- Max. flow, GPM: 17.6
- Max. pump head: 177ft
- Max. working pressure: 87 PSI
- Motor power: 3/4HP
- Fluid temp range: 32 - 104F
- Max. lift: 26.25ft
- Max. ambient temp: 104F
- Factory pressure switch setting: 30/50 PSI
- Storage temp: -4 - 158F
- Relative humidity: 98%
- Max. starts per hour: 20
Features:
- Rugged stainless steel construction
- End suction, top discharge arrangement
- Technopolymer impeller
- Built-in ejector complete with clean-out port to clear blockages from nozzle
- Convenient priming plug for ease of priming and air elimination
- Ceramic-carbon bellows mechanical seal ensures trouble-free operation
- High quality pressure switch
