1 HP Shallow Well Jet Pump w/ Pressure Switch, 115V/230V, Cast Iron

1 HP Shallow Well Jet Pump w/ Pressure Switch, 115V/230V, Cast Iron

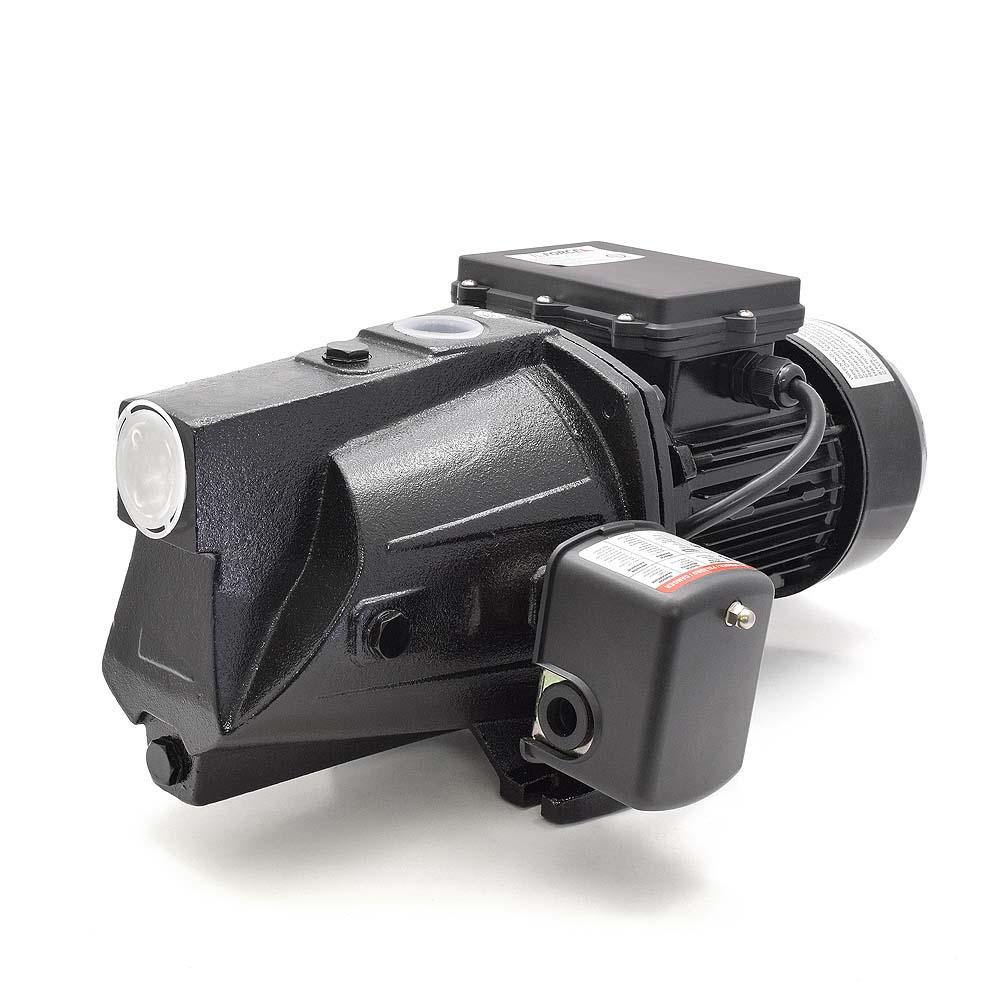

FloForce FJP-100 is a Shallow Well Jet Pump with a powerful 1 HP motor and Dual Voltage 115/230V capability. Most commonly used to supply fresh well water to residential homes, farms, cabins as well as agricultural structures and many others.



Shallow well jet pumps are designed to pump fresh water from depth up to 25ft and are commonly used with dug/drilled wells, ponds, lakes, etc. A foot valve is required for all installation types (except sand-point) and can be purchased separately (SKU# 527T06). A pressure gauge is optional, but recommended and can also be purchased separately if needed (SKU# 356-100PK1). We also offer a complete selection of industry's best Amtrol Well-X-Trol well tanks.



This jet pump features a 1-1/4" NPT suction inlet and 1" NPT outlet as well as (3) 1/4" NPT ports with plugs: top - for priming, bottom - for drainage, side - for pressure gauge (optional). Jet pump voltage is factory set to 230V and can be changed to 115V by turning the switch from 230V to 115V position (see installation manual). Pressure switch is factory set to 20-40 psi range and can be adjusted to operatre at 30-50 psi if needed (instructions located on switch cover).





Features:



  • For well depth: 0-25ft;
  • Permanent split capacitor motor with high starting torque;
  • Simplified wiring;
  • Built-in thermal overload protection;
  • Dual voltage capability (115/230V);
  • Adjustable pressure switch;
  • Durable cast iron volute;
  • Carbon/ceramic mechanical seal, stainless steel shaft;
  • Self-priming (after housing filled);
  • Replaces similar models from Grundfos, Little Giant, Goulds, Wayne, Dayton and many others.



Technical Specifications:



  • Horsepower: 1 HP;
  • Flow rate: 15 GPM;
  • Shut Off Head: 183';
  • Suction line: 1-1/4" NPT;
  • Discharge line: 1" NPT;
  • Voltage: 115/230V (factory set at 230V);
  • Hertz: 60 Hz;
  • Pressure switch settings: 20-40 psi (adjustable to 30-50 psi)
  • Ambient temperature: up to 104F;
  • Weight: 36 lbs;
  • UL listed for USA.
Product Specs
Ambient Temperature: up to 104F
Discharge line: 1" NPT
Flow Rate: 15 GPM
Hertz: 60 Hz
Horsepower: 1 HP
Pressure switch settings: 20-40 psi (adjustable to 30-50 psi)
Shut Off Head: 183'
Suction line: 1-1/4" NPT
Voltage 115/230V (factory set at 230V)
Weight: 36 lbs

Write a review

Please login or register to review
  • Views: 8604
  • Model: FJP-100
  • MPN: JSP80A
  • Availability: In Stock
  • Usually ships: within 1 business day(s)
  • $ 110.95
