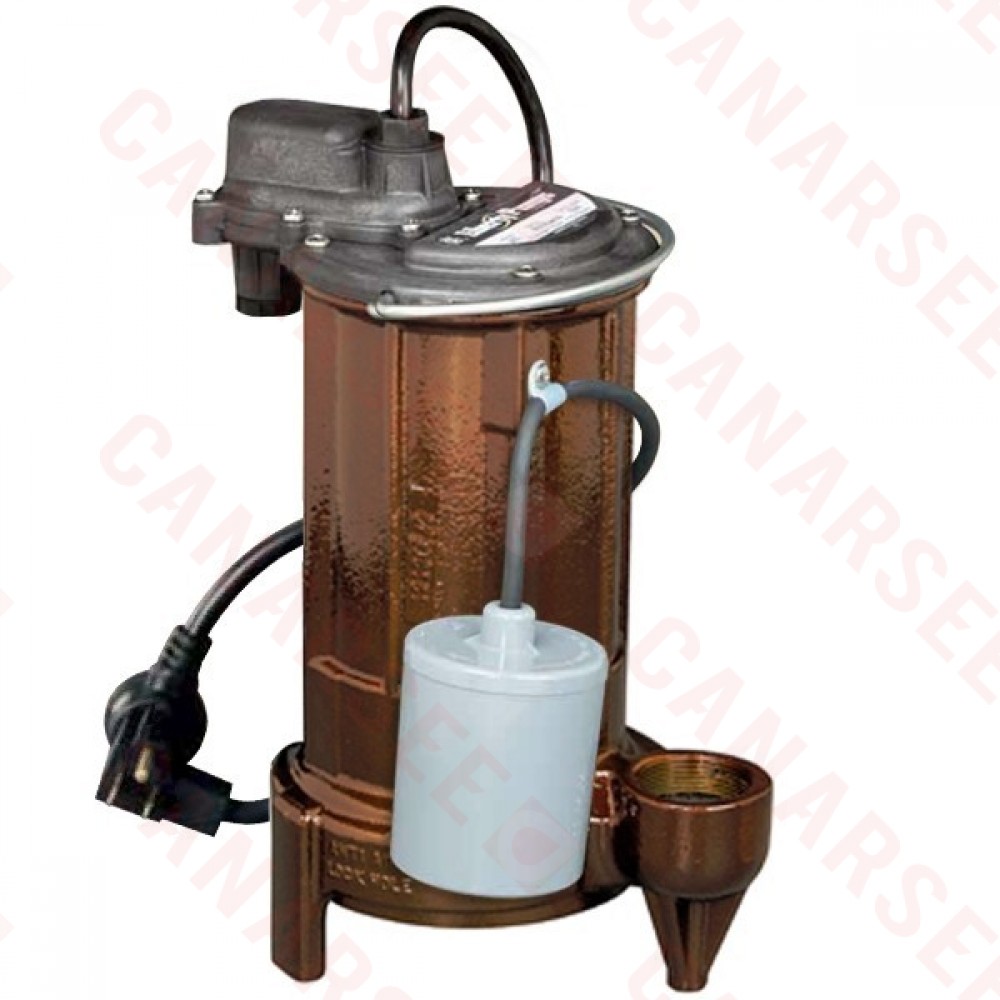

Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 25' cord, 115V

Click Image for Gallery

Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 25' cord, 115V QR Code

QR Views: 3512

Model: 293-2
UPC: 671812120998

MPN: 293-2

Weight:34.00 lb

Usually ships: 7-10 business days

$465.75

Qty: Add to Cart

Add to Wish List Add to Compare

0 reviews • Write a review

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Description Specification Reviews (0)

The 293-2 from Liberty Pumps is an Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 25' cord, 115V. It has a discharge of 1-1/2NPT and can handle solids up 3/4". The Liberty 293-2 will automatically turn on when the water is at 13" and automatically shut-off when it reaches 7". This effluent sump pump is best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids.

The Liberty 293-2 provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow. Liberty's unique Uni-Body casting will provide years of reliable performance.

Features:

Wide-Angle Float with piggy-back Series Plug design;
Liberty's unique, one-piece "Uni-Body" casting;
Permanently lubricated upper and lower bearings;
Oil-filled, hermetically sealed motors with thermal overload protection;
Stainless steel, removable bottom screen;
416 Stainless steel rotor shaft;
All fasteners - corrosion-resistant stainless steel;
Semi-Open impeller permitting passage of solids up to 3/4";
Epoxy powder coat finish;
1-1/2" Discharge;
Stainless steel bottom screen - easily removable;
Maximum fluid temperature 140F;

Technical Specifications:

Discharge Size: 1 1/2" FNPT;
Solids Handling Capability: 3/4" dia.;
Listing: UL/CSA;
HP: 3/4;
Volts: 115;
Phase: 1;
Hertz: 60;
Amps: 10.4;
Flow @ 5': 78 GPM;
Flow @ 10': 72 GPM;
Flow @ 20': 58 GPM;
Thermal overload temp: 248F;
Shut-off Head: 48';
Cord Length: 25';
Minimum Sump Diameter: 14";
Height: 13";
Weight: 31 lbs;

Warranty:

3 years manufacturer's warranty

Product Specs
Cord Length:	25'
Flow at 5 FT Head:	78 GPM
Horse Power:	3/4
Shutoff Head (ft.):	48
Type:	Automatic
Voltage:	115v
