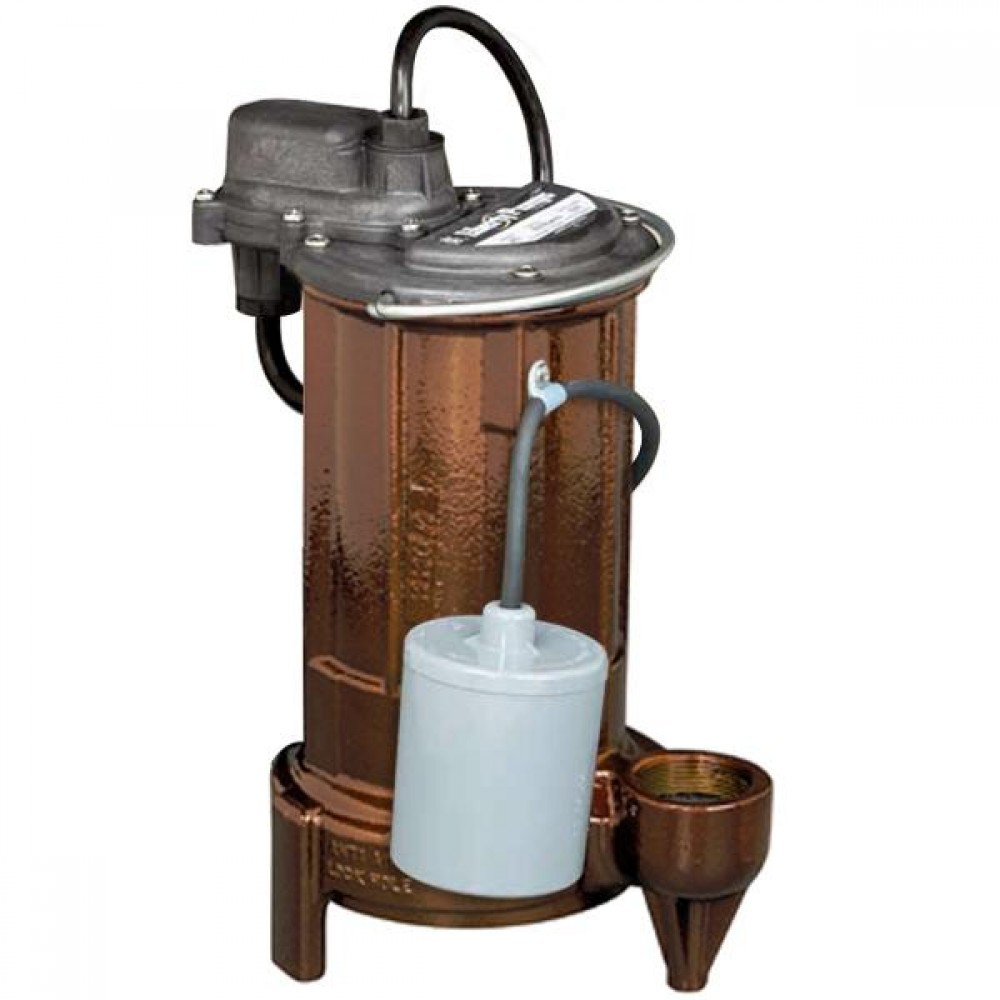

Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 50' cord, 115V
The 291-5 from Liberty Pumps is an Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 50' cord, 115V. This pump is equipped with a wide angle float switch, has a discharge of 1-1/2" NPT and can handle solids up 3/4". The Liberty 291 provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow.
The Liberty 291-5 is best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids. Liberty's unique Uni-Body casting will provide years of reliable performance.
Features:
- Wide-Angle Float with Quick Disconnect design;
- Liberty's unique, one-piece "Uni-Body" casting;
- Permanently lubricated upper and lower bearings;
- Oil-filled, hermetically sealed motors with thermal overload protection;
- Stainless steel, removable bottom screen;
- 416 Stainless steel rotor shaft;
- All fasteners - corrosion-resistant stainless steel;
- Semi-Open impeller permitting passage of solids up to 3/4";
- Epoxy powder coat finish;
- 1-1/2" Discharge;
- Stainless steel bottom screen - easily removable;
- Maximum fluid temperature 140F;
Technical Specifications:
- Discharge Size: 1 1/2" FNPT;
- Solids Handling Capability: 3/4" dia.;
- Listing: UL/CSA;
- HP: 3/4;
- Volts: 115;
- Phase: 1;
- Hertz: 60;
- Amps: 10.4;
- Flow @ 5': 78 GPM;
- Flow @ 10': 72 GPM;
- Flow @ 20': 58 GPM;
- Thermal overload temp: 248F;
- Shut-off Head: 48';
- Cord Length: 50';
- Minimum Sump Diameter: 14";
- Height: 13";
- Weight: 31 lbs;
Product Specs | |
Cord Length: | 50 ft |
Flow at 5 FT Head: | 78 GPM |
Horse Power | 3/4 |
Shutoff Head (ft.): | 48 |
Type1 | Automatic |
Voltage | 115v |
