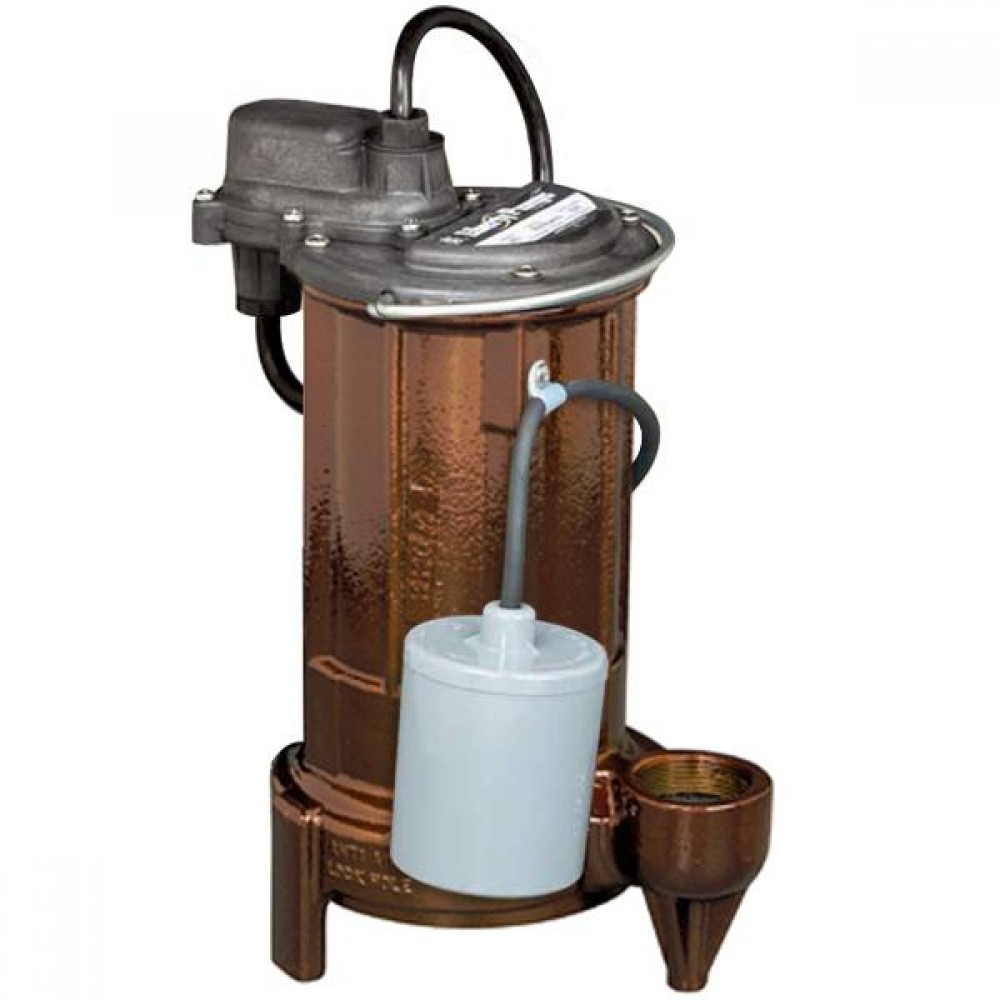

Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 10' cord, 115V
The 291 from Liberty Pumps is an Automatic Sump/Effluent Pump w/ Wide Angle Float Switch, 3/4HP, 10' cord, 115V. It has a discharge of 1-1/2NPT and can handle solids up 3/4". The Liberty 291 is best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids. The Liberty 291 automatic submersible effluent sump pump has a shut-off of 48' of head and comes with a quick disconnect 10' power cord.
The Liberty 291 provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow. Liberty's unique Uni-Body casting will provide years of reliable performance.
Features:
Wide-Angle Float with Quick Disconnect design;
Liberty's unique, one-piece "Uni-Body" casting;
Permanently lubricated upper and lower bearings;
Oil-filled, hermetically sealed motors with thermal overload protection;
Stainless steel, removable bottom screen;
416 Stainless steel rotor shaft;
All fasteners - corrosion-resistant stainless steel;
Semi-Open impeller permitting passage of solids up to 3/4";
Epoxy powder coat finish;
1-1/2" Discharge;
Stainless steel bottom screen - easily removable;
Maximum fluid temperature 140F;
Technical Specifications:
- Discharge Size: 1 1/2" FNPT;
- Solids Handling Capability: 3/4" dia.;
- Listing: UL/CSA;
- HP: 3/4;
- Volts: 115;
- Phase: 1;
- Hertz: 60;
- Amps: 10.4;
- Flow @ 5': 78 GPM;
- Flow @ 10': 72 GPM;
- Flow @ 20': 58 GPM;
- Thermal overload temp: 248F;
- Shut-off Head: 48';
- Cord Length: 10';
- Minimum Sump Diameter: 14";
- Height: 13";
- Weight: 31 lbs;
Product Specs | |
Cord Length: | 10 ft |
Flow at 5 FT Head: | 78 GPM |
Horse Power | 3/4 |
Shutoff Head (ft.): | 48 |
Type1 | Automatic |
Voltage | 115v |
