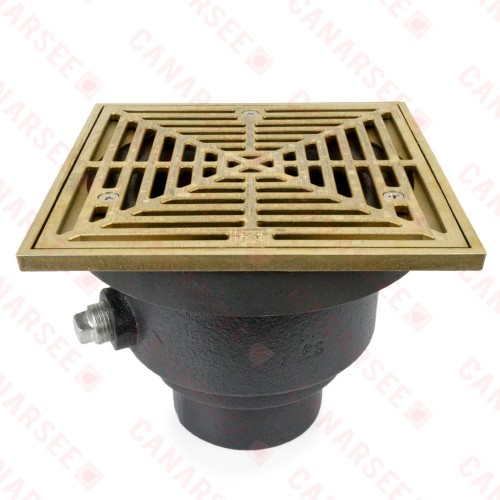

FinishLine Adjustable Floor Drain Complete Assembly, Square, Nickel-Bronze, 3" Cast Iron No-Hub
Click Image for Gallery
FinishLine series floor drain by Sioux Chief with precision adjustable before and after the pour strainer height. Heavy-duty cast iron body with square solid nickel-bronze alloy strainer and 3" no-hub connection.
Technical Specifications:
- Connection: 3" No-Hub (connects to a 3" cast iron pipe using regular no-hub coupling)
- Pre-Pour Height (Adjustable): 5-3/8" - 6-5/8"
- Post-Pour Height (Adjustable): 5/16" - 1-1/4"
- Strainer Size: 7" x 7" square
- Strainer Load Rating: 1,000 lbs
- Trap Primer Port (plugged): 1/2" FIP
- Materials: Ductile Iron Body, Nickel Bronze Alloy Strainer
Features:
- All-in-one solution for installation of a floor drain in commerical or residential setting
- Adjustable height before and after the pour
- Includes leveling shims for tilt correction and precision installation of finish fixture
- Coring plug protects finish fixture from damage or loss, no messy and unreliable duct tape needed
- Up to 1-1/4" height adjustment after the pour - simplifies installation of tile or concrete finish flooring
- 1/2" FIP side connection for optional trap primer (plugged)
- Made in the USA
| Product Specs | |
| Cover Material | Nickel Bronze |
| Drain Shape | Square |
| Load Rating | 1000 Lbs |
| Body Material | Cast Iron |
| Connection | 3" No-Hub Cast Iron |
| Product Type | Floor Drains |
- Views: 1714
-
- Model: 832-3DNQ
- MPN: 832-3DNQ
- Availability: In Stock
- Usually ships: within 1 business day(s)
- $ 126.95
- 4 or more $ 116.95
