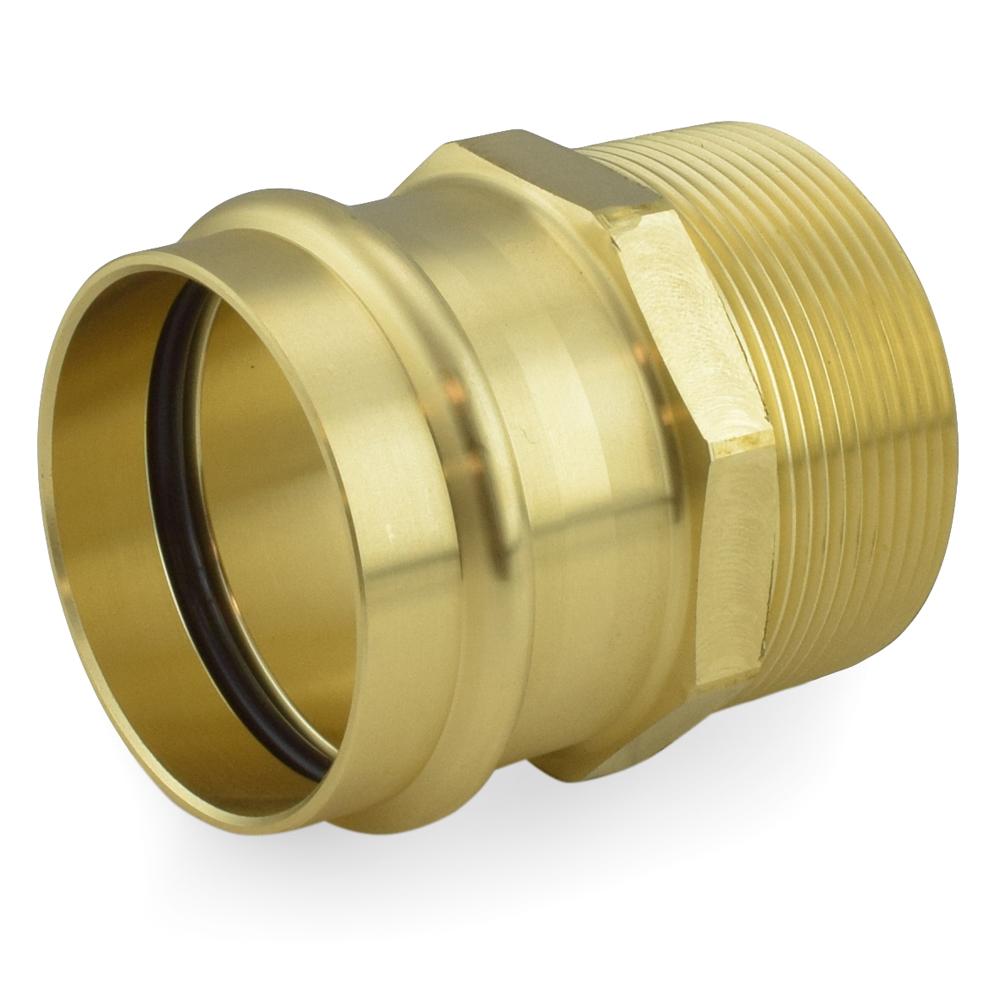

2" Press x Male Threaded Adapter, Lead-Free Brass

Click Image for Gallery

The 10075814 from Apollo is a 2” Press x Male Threaded Adapter, Lead-Free Brass. This press adapter is used to transition from a copper pipe to a female threaded outlet or connection.

Features:

Made in the USA;
Lead-free, approved for potable water use nationwide;
Meets NSF/ANSI 61 & 372, UPC and ICC compliant (see Literature for complete list of approvals);
Applications include hot & cold water plumbing, hydronic heating (incl. ethylene, propylene and butylene glycol mixes), compress air (oil-free), low pressure steam, vacuum, grey water and others.;
Heat & flame-free installation, no fluxing, cleaning, soldering or prep. work;
Compatible with most compression tools;
Leak Before Press feature.

Technical Specifications:

Hot & cold water: up to 200 psi at 33°F-250°F;
Low pressure steam: up to 15 psi;
Compressed air & inert gases: up to 140 psi;
For use with: K, L & M types hard (drawn) and soft (annealed) copper tubing;
O-ring material: EPDM;
O-ring lubricant: NSF/ANSI 61 listed silicone oil.

Product Specs
Compressed air & inert gases:	up to 140 psi
Hot & cold water:	up to 200 psi at 33°F-250°F
Low pressure steam:	up to 15 psi
Minimum spacing between fittings:	3/4".
O-ring lubricant:	NSF/ANSI 61 listed silicone oil
O-ring material:	EPDM

Views: 6168
Model: 10075814
MPN: 10075814
Availability: In Stock
Usually ships: within 1 business day(s)
