96 sqft (2ft x 4ft, 12 panels) Crete-Heat 1" Foam Board Insulation for 3/8", 1/2" & 5/8" PEX, R-6

96 sqft (2ft x 4ft, 12 panels) Crete-Heat 1" Foam Board Insulation for 3/8", 1/2" & 5/8" PEX, R-6

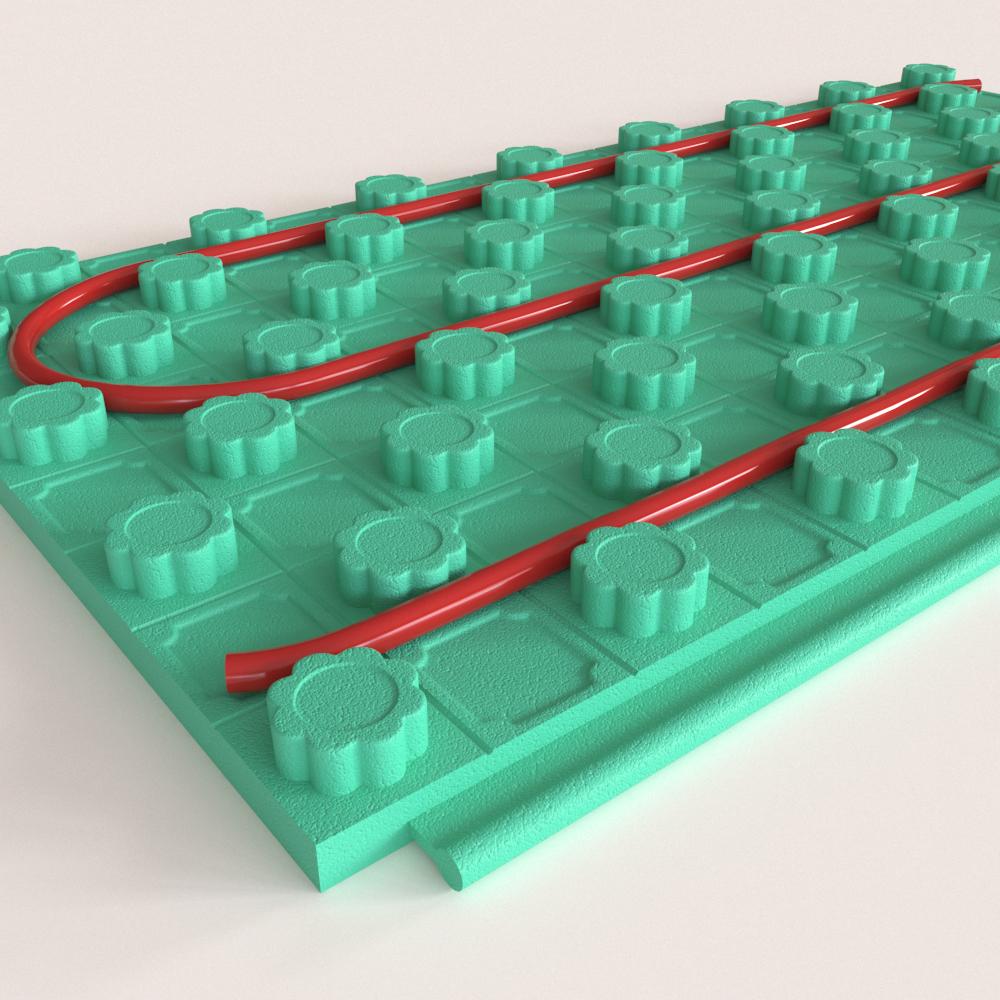

Crete-Heat expanded polystyrene (EPS) floor insulation boards combine concrete insulation, vapor barrier and PEX tubing holding grid into a single product, which significantly simplifies installation of PEX tubing for radiant heating and snow melting applications in a concrete slab. No foamboard staplers/staples or wire ties needed.
Suitable for insulating slabs in basements, garages, warehouses, etc. - in below, at or above-grade installations (Note: below-grade installations will require a vapor barrier). Compatible with all types (A, B, C) and brands (Everhot, Uponor, Viega, Watts, Zurn, etc.) of PEX tubing. Also compatible with 1/2" PEX-AL-PEX.
Package includes (12) 2ft x 4ft panels, equaling 96 sqft of coverage.



Features:



  • Cuts labor by over 60% and allows for a 1-person installation - simply "walk the tubing in the board";
  • Tongue & groove interlocking edges make installation easier - no glue or taping needed;
  • Knob design allows for spacing in precise 3" increments (3", 6", 9", etc.) - no chalkline needed;
  • Lays flat, can be walked on and helps to protect the pipe from damage during construction;
  • EPS provides stable R-value and does not need to be adjusted for age;
  • CFC and HCFC-Free.



Technical Specifications:



  • For PEX tubing sizes: 3/8", 1/2", 5/8";
  • PEX Tubing Spacing: 3" (for 3", 6", 9", 12", etc. spacing)
  • R-Value: R-6;
  • Total Coverage: 96 sqft;
  • Total Insulation Thickness (Top to Bottom): 1-7/8";
  • Nominal Thickness (Insulation-Only): 1";
  • Effective Board Size (Width x Length): 24" x 48";
  • Overall Board Size (Width x Length): 25" x 49" (with 1" interlocking edges);
  • Compressive Resistance @ 10% Deformation: 25 psi / 3600 psf;
  • Perm Resistance: .68 perms;
  • Material: High Impact Extruded Polystyrene;
Product Specs
Insulation Size 96 sqft
Product Type Floor Panel Insulation

Write a review

Please login or register to review
  • Views: 4431
  • Model: CH1-25
  • MPN: CH1-25
  • Availability: 2 - 3 Days
  • Usually ships: Upon availability
  • $ 355.00
