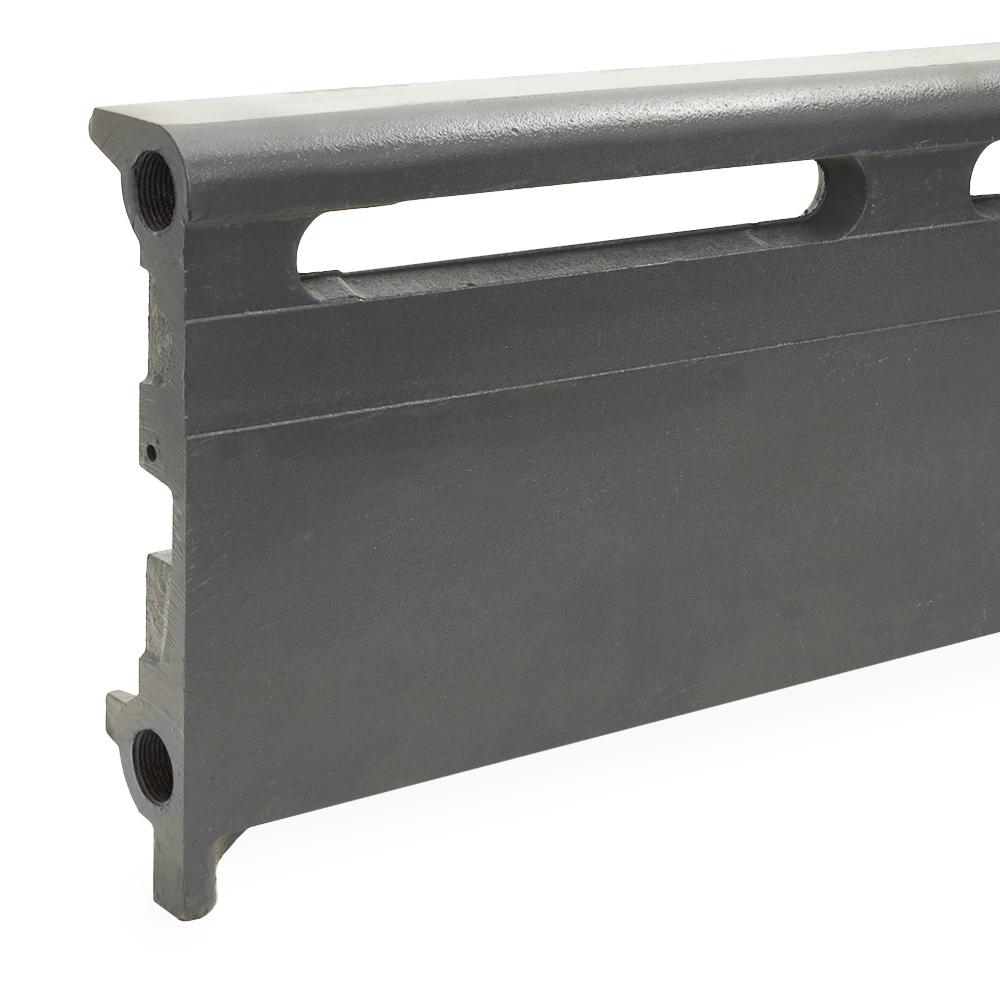

4.5ft Cast Iron Baseboard Radiator Assembly, Floor Standing, 10" H x 2-1/2" D x 54" W......
Click Image for Gallery
4.5ft Cast Iron Baseboard Radiator Assembly, Floor Standing, 10" H x 2-1/2" D x 54" W......
Technical Specifications:
Features:
Technical Specifications:
- Dimensions: 9-7/8" High (overall) x 2-7/16" Deep (front to wall) x 54" Long/Wide (overall)
- Weight: approx 77 lbs
- Connections: (4) 3/4" FNPT threaded (2 on ea. side - one on top and one on bottom)
- Material: Cast Iron
- Max Operating Pressure: 30 psi Water or 15 psi Steam
- BTU's @ 160F: 1980 BTU/hr @ 1GPM, 2115 BTU/hr @ 4GPM
- BTU's @ 180F: 2565 BTU/hr @ 1GPM, 2700 BTU/hr @ 4GPM
- BTU's @ 200F: 3150 BTU/hr @ 1GPM, 3330 BTU/hr @ 4GPM
- Steam BTU's: 3510 BTU/hr
- For BTU ratings at other temperatures and flow rates, see Specs file.
Features:
- Up to 2x the output of conventional baseboard and up to 5x the radiant heat
- Heavy-duty vandal-resistant design
- Utilizes both convection and radiant heat for smoother, more comfortable space heating
- Quieter operation than conventional baseboards
- Can be painted to match interior design colors
- Views: 36
-
- Model: BAP412
- MPN:
- Availability: In Stock
- Usually ships: within 1 business day(s)
- $ 320.95
- 4 or more $ 300.95
