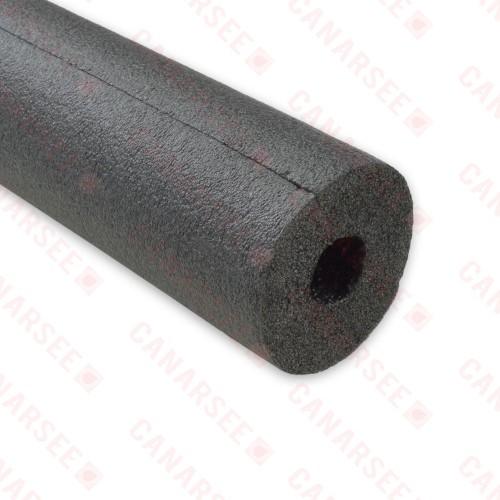

7/8" ID x 1" Wall, Semi-Slit Pipe Insulation, 6ft

Discontinued 7/8" ID x 1" Wall, Semi-Slit Pipe Insulation, 6ft

The 6IE100078 from Nomaco is a 7/8” x 1” Wall, Semi-Slit Pipe Insulation, 6ft. It's a closed-cell polyethylene foam pipe insulation for use with 3/4" copper, PEX or CPVC pipe (7/8" OD). Insulation wall thickness is 1". Partially split (about 3/4 of thickness) to slide over the pipe or can be fully split by hand to install over existing piping. Environment-friendly, made in the USA.


  • Semi-slit (about 3/4 of the way), w/out adhesive;
  • Made in the USA to ASTM C1427 (Type 1/Grade 1) from up to 100% recycled content;
  • Meets NFPA 90 A & B;
  • Non-porous, closed-cell type polyethylene foam insulation;
  • Resists mold growth;
  • Low VOC and free from fiber, halogen, CFC's, HCFC's;
  • For Indoor/Outdoor use, can also be installed underground.

Technical Specifications:

  • For copper/PEX/CPVC pipe size: 3/4";
  • Insulation ID (max. pipe OD): 7/8";
  • Wall thickness: 1";
  • Length: 6ft;
  • R-value: 7.2;
  • Operating temperature range: -330°F - 210°F;
  • For full list of properties, specifications and approvals, refer to Techincal Specifications.
Product Specs
For copper/PEX/CPVC pipe size: 3/4"
Insulation ID (max. pipe OD): 7/8"
Length 6ft
Operating temperature range: -330°F - 210°F
R-value: 7.2
Wall thickness: 1"

Write a review

Please login or register to review
  • Views: 4948
  • 7/8" ID x 1" Wall, Semi-Slit Pipe Insulation, 6ft QR Code
  • Model: 7PXE100078
  • MPN: 6IE100078
  • Availability: Discontinued
  • $ 0.00
