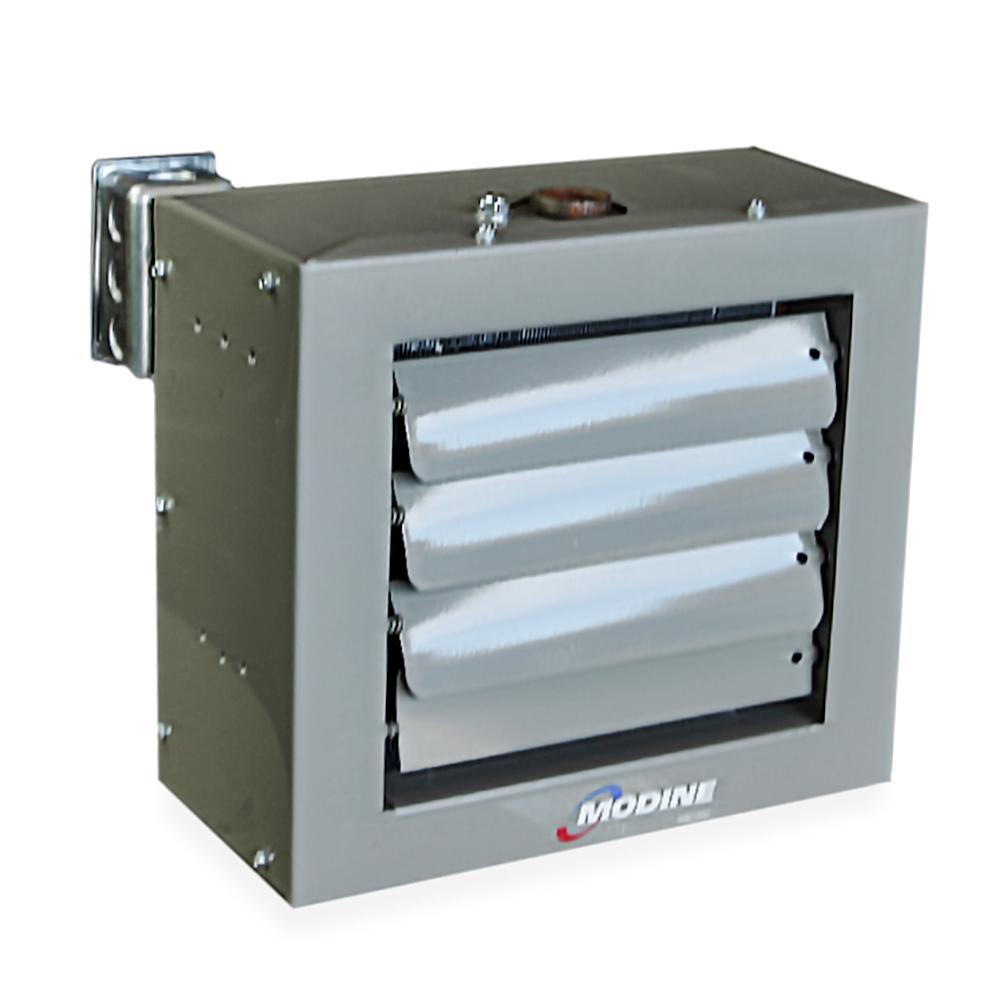

HSB18 Hot Water (Hydronic) Unit Heater - 18,000 BTU
Click Image for Gallery
Modine HSB series are propeller (fan) type hot water unit heaters which utilize hot water from a boiler, indirect heater or other source. These heaters are a great solution for applications where gas or oil fuel use is impractical or avoided for safety reasons. HSB heaters have steel male threaded connections located on the top and bottom - allowing to rotate the unit 360° without changing the piping.
Technical Specifications:
Technical Specifications:
- BTU/Hr: 18,000 (Steam) / 12,600 (Hot Water)
- Final Air Temperature (°F): 107 (Steam)/93 (Hot Water)
- Heat Throw (ft.) @ Max Mounting Height: 17 (Steam) / 18 (Hot Water)
- Maximum Mounting Height: 8ft (Steam)/ 9ft (Hot Water)
- Approx. weight: 16 lbs
- Dimensions (W x H x D): 12-3/4" x 11-1/2" x 6" (11" w/ motor)
- Views: 855
-
- Model: HSB18
- MPN: HSB18SB01SA
- Availability: 10 - 14 Days
- Usually ships: Upon availability
- $ 550.45
