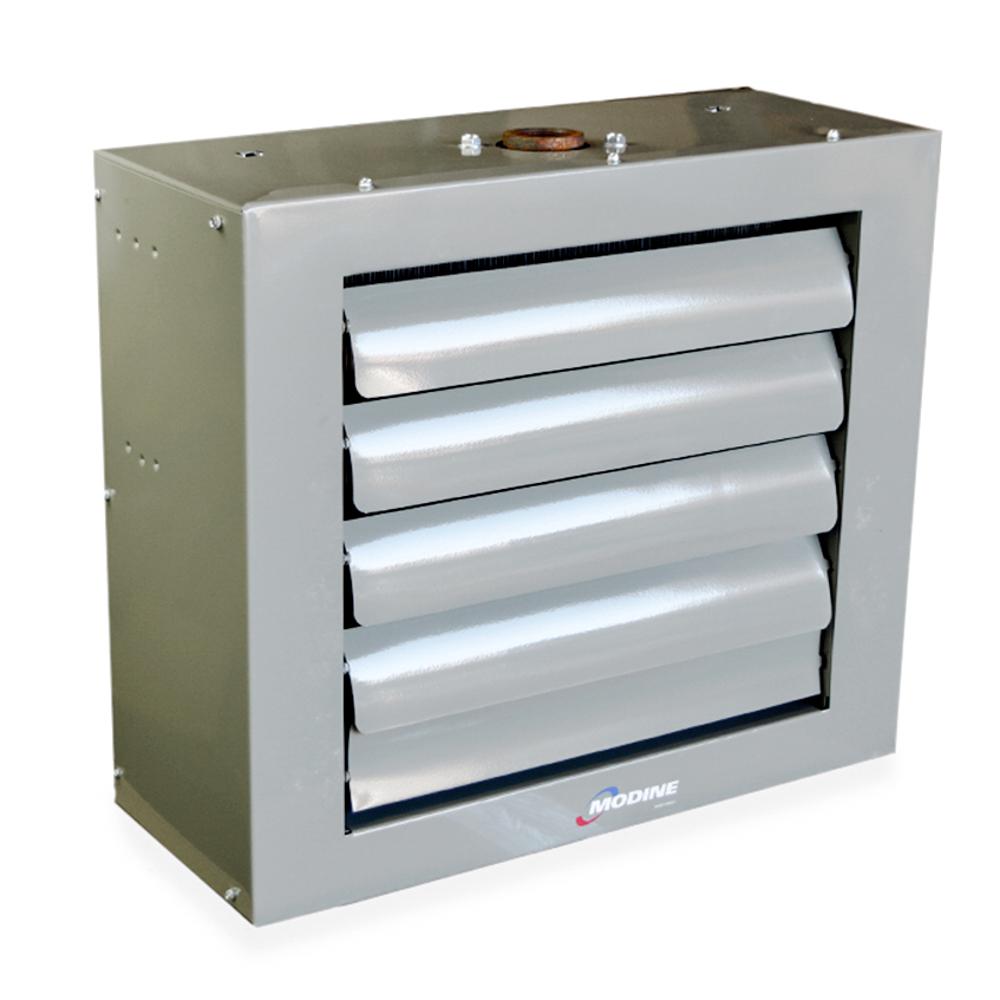

HSB86 Hot Water (Hydronic) Unit Heater - 86,000 BTU
Click Image for Gallery
Modine HSB series are propeller (fan) type hot water unit heaters which utilize hot water from a boiler, indirect heater or other source. These heaters are a great solution for applications where gas or oil fuel use is impractical or avoided for safety reasons. HSB heaters have steel male threaded connections located on the top and bottom - allowing to rotate the unit 360° without changing the piping.
Technical Specifications:
Technical Specifications:
- BTU/Hr: 86,000 (Steam) / 60,200 (Hot Water)
- Final Air Temperature (°F): 118 (Steam)/101 (Hot Water)
- Heat Throw (ft.): @ Max Mounting Height: 31 (Steam) / 33 (Hot Water)
- Maximum Mounting Height: 15ft (Steam)/ 16ft (Hot Water)
- Approx. weight: 52 lbs
- Dimensions (W x H x D): 21-1/2" x 18-1/2" x 8-3/4" (17-3/4" with standard motor)
- Views: 1074
-
- Model: HSB86
- MPN: HSB86SB01SA
- Availability: 10 - 14 Days
- Usually ships: Upon availability
- $ 960.35
