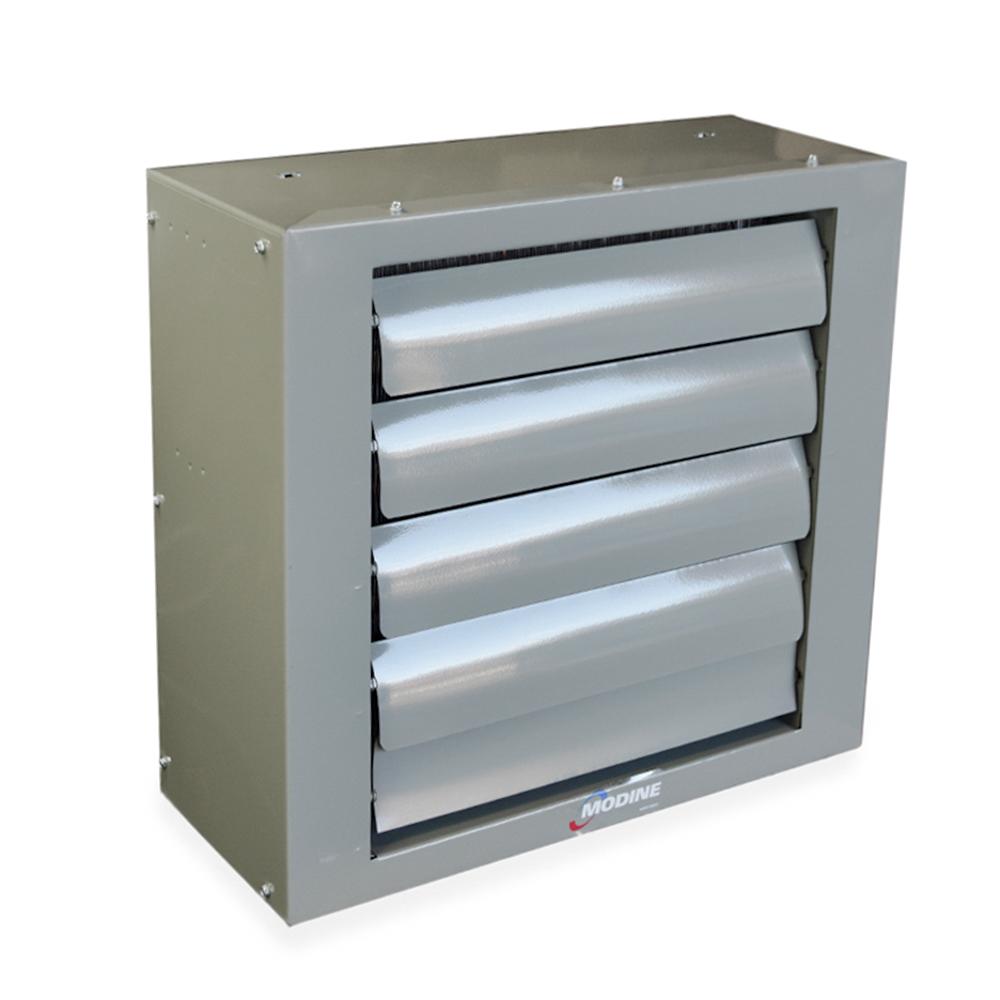

HC63 Hot Water (Hydronic) Unit Heater - 63,000 BTU
Click Image for Gallery
Modine HC series are propeller (fan) type hot water unit heaters which utilize hot water from a boiler, indirect heater or other source. These heaters are a great solution for applications where gas or oil fuel use is impractical or avoided for safety reasons. HC heaters have copper pipe connections located on the side - for low-clearance installation.
Technical Specifications:
Technical Specifications:
- BTU/Hr: 63,000 (Steam) / 45,600 (Hot Water)
- Final Air Temperature (°F): 111 (Steam)/97 (Hot Water)
- Heat Throw (ft.): @ Max Mounting Height: 29 (Steam) / 31 (Hot Water)
- Maximum Mounting Height: 14ft (Steam)/ 15ft (Hot Water)
- Approx. weight: 48 lbs
- Dimensions (W x H x D): 21-1/2" x 18-1/2" x 8-3/4" (16-3/4" with standard motor)
- Views: 654
-
- Model: HC63
- MPN: HC63SB01SA
- Availability: 5 - 7 Days
- $ 845.95
