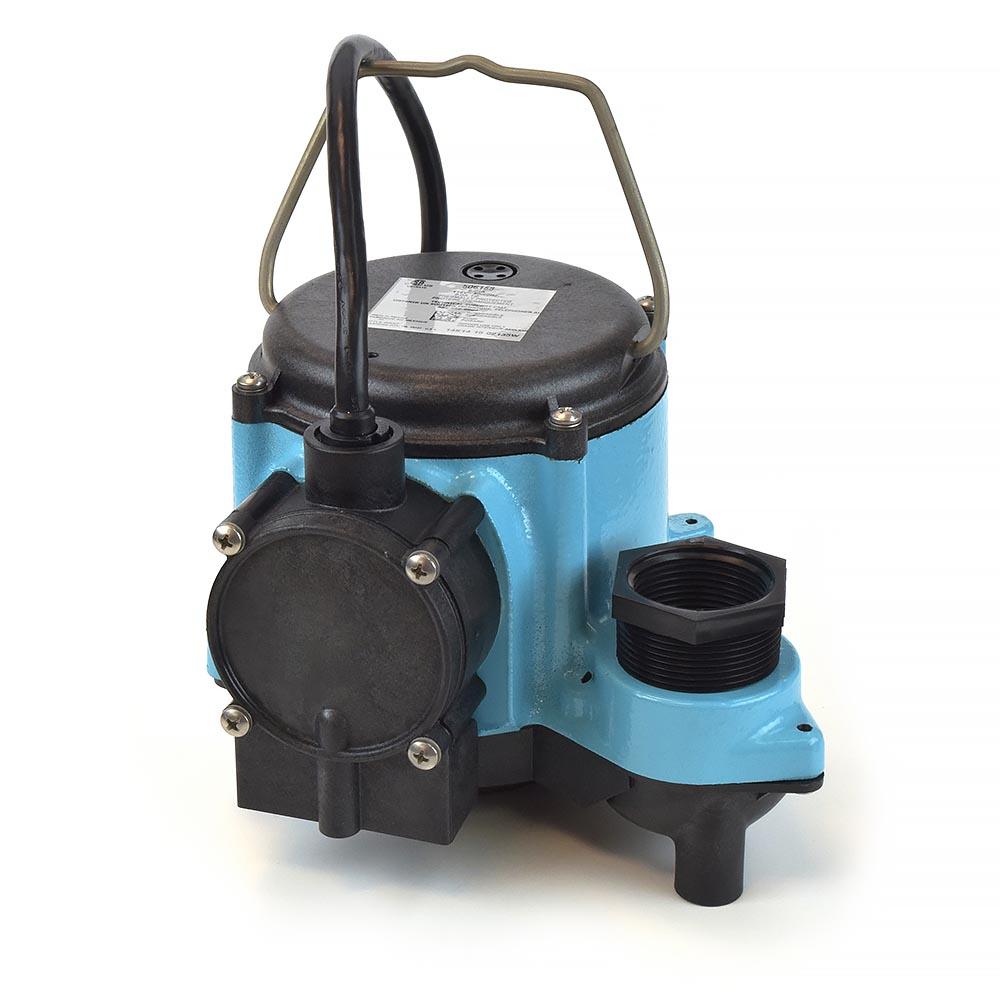

Automatic Sump Pump w/ Diaphragm Switch, 10' cord, 1/3HP, 115V

Click Image for Gallery

The 506158 from Little Giant is an Automatic Sump Pump w/ Diaphragm Switch, 10' cord, 1/3HP, 115V. It's well suited for extended or continuous use in moving large volumes of water. All 6-CIA models, including this one has a 1-1/2" FNPT discharge, 1-1/4" reducing bushing for connection to smaller diameter discharge pipe and an optional 3/4" regular garden hose adapter. Little Giant 506158 model has a poly-carbonate cover, a polypropylene volute/base, cast iron housing, stainless steel components for enhanced corrosion resistance and built-in thermal overload protection. 6-CIA series sump pumps are best suited for residential and light commercial use.

Head (ft) Flow (GPM) Head (m) Flow (LPM)

5 46 1.5 174.1

10 29 3.0 109.8

15 12.5 4.6 47.3

Features:

1/3 HP shaded pole motor with overload protection
Designed for continuous duty
Epoxy coated cast iron housing
1-1/2" FNPT discharge with optional 1-1/4" FNPT reducer (included)
Carbon/ceramic shaft seal
Upper and lower sintered sleeve bearings
UL / CSA listed

Technical Specifications:

Model: 6-CIA
HorsePower: 1/3 HP
Max. Flow: 46 GPM @ 5ft of Head
Cord Length: 10ft
Shut Off @ 18ft of head
Voltage: 115V
Hertz: 50/60 Hz
Amps: 9A
Watts: 720W
Weight: 18 lbs
Dimensions (H x W x L): 6" x 8.5" x 9.5"
Certification: UL/CSA

Warranty:

2 years from the date of installation.

Product Specs
Amperage:	9
Application	Plumbing
Approvals:	UL/CSA
Cord Length:	8 ft
Dimensions:	6"H x 9.5"L x 8.5"W
Discharge:	1-1/2" FNPT
Flow at 10 FT Head:	29 GPM
Flow at 15 FT Head:	12.5 GPM
Flow at 5 FT Head:	46 GPM
Horse Power	1/3
Max Pressure (PSI):	7.8
Shutoff Head (ft.):	18
Type:	Automatic
Voltage	115v
Wattage	720
Weight (lbs):	18 lbs

Views: 13338
Model: 506158
MPN: 506158
Availability: Discontinued
Usually ships: 1
