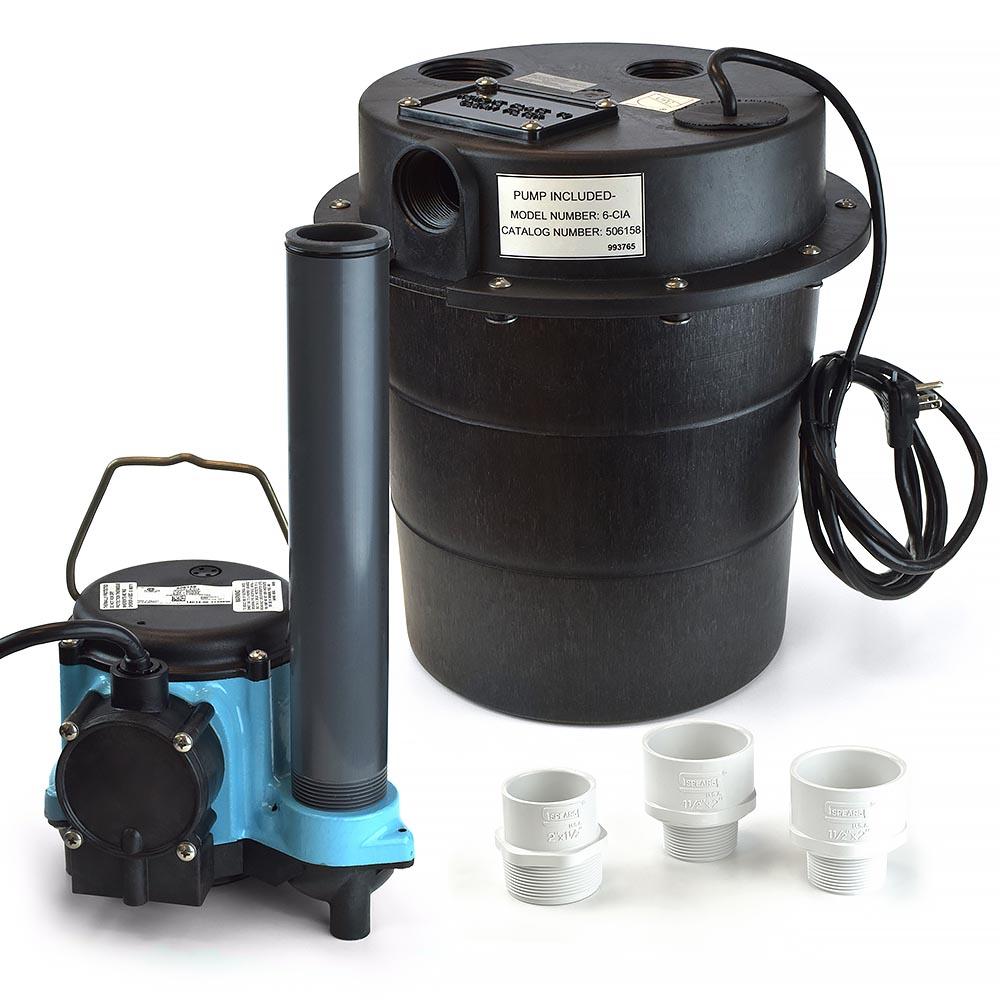

Drainosaur Water Removal System w/ 9' cord, 5 gal., 1/3HP, 115V

Click Image for Gallery

The 506055 from Little Giant is a Drainosaur Water Removal System w/ 9' cord, 5 gallon capacity, 1/3HP, 115V. Tank has 1-1/2" FNPT intake port, 1-1/2" FNPT top discharge port, and a 2" FNPT top vent port. Includes an easy-to-remove filter trap. When in automatic mode (default), the 6-CIA pump has "On" level of 7"-10" and "Off" level of 1"-4".

Head (ft) Flow (GPH) Head (m) Flow (LPH)

5 2750 1.5 10409.9

10 1750 3.0 6624.5

15 750 4.6 2839.1

Applications:

Removes water from laundry trays, lavatory sinks, wet bar sinks, dehumidifiers, air conditioners (condensate), water softeners, and other.
Features:
Pre-assembled for easy installation
Easy to remove filter trap
Cylindrical heavy-duty polypropylene basin tank, IAPMO approved
UL / CSA listed

Technical Specifications:

Model: WRS-6
Horse Power: 1/3 HP
Flow: Up to 45GPM @ 5ft of Head pressure drop
Shut Off: 18ft of head
Cord Length: 8ft
Voltage: 115V
Hertz: 50/60Hz
Amps: 9A
Watts: 720W
Weight: 26 lbs
Certification: UL/CSA

Warranty:

2 years from the date of installation

Product Specs
Amperage:	9
Approvals:	UL/CSA
Cord Length:	8 Feet
Dimensions:	14.5"W x 15.56"H
Discharge:	1-1/2" FNPT
Flow at 10 FT Head:	29 GPM
Flow at 15 FT Head:	12 GPM
Flow at 5 FT Head:	46 GPM
Horse Power	1/3
Max Pressure (PSI):	7.8
Shutoff Head (ft.):	18
Size1	5 Gallon
Type:	Automatic
Voltage	115v
Wattage	720
Weight (lbs):	26 lbs.

Views: 12528
Model: 506055
MPN: 506055
Availability: Discontinued
Usually ships: Upon availability
