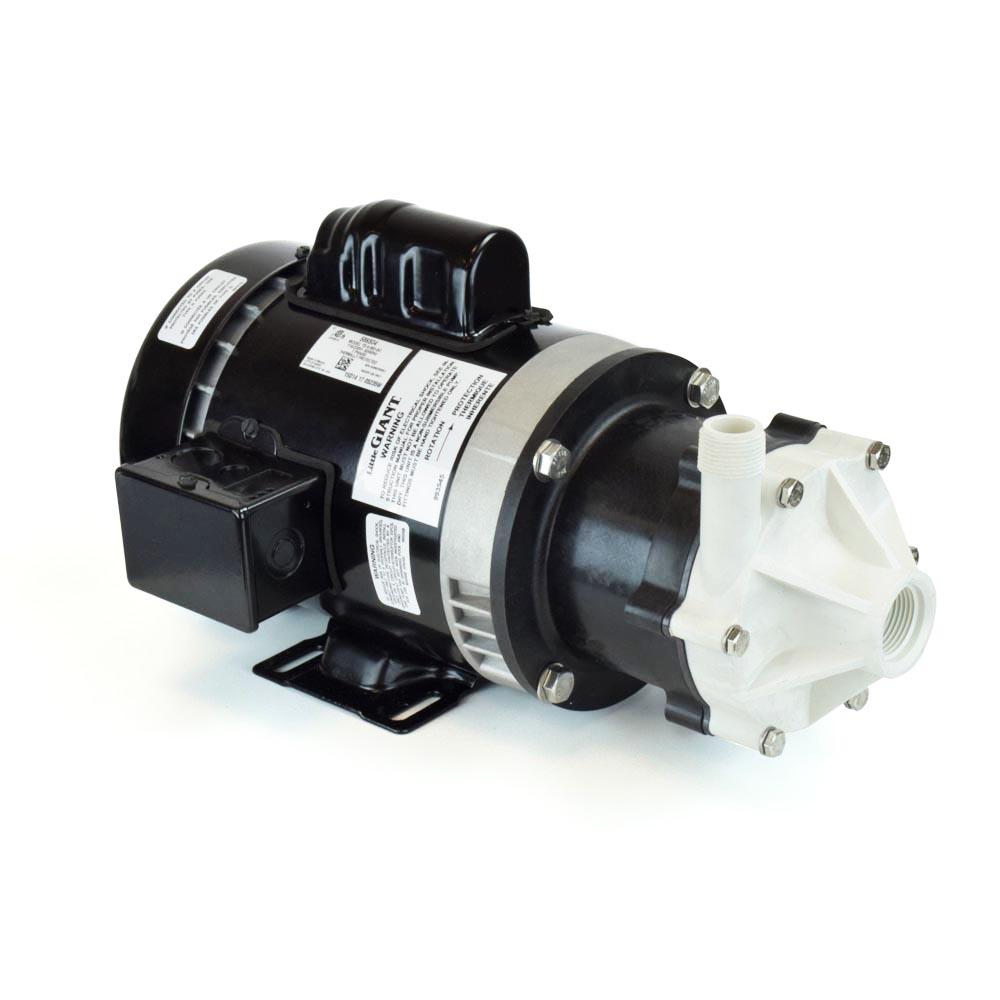

Magnetic Drive Pump for Semi-Corrosive, 1/2HP, 115/230V, 1-Phase

Click Image for Gallery

The 586504 from Little Giant is a Magnetic Drive Pump for Semi-Corrosive, 1/2HP, 115/230V, 1-Phase. Designed for in-line, non-submersed use in environments such as hospitals, chemical companies, photo labs, dry cleaning plants, car washes, machine shops, laboratories, manufacturing plants, print shops and wineries.

TE-6-MD-SC Magnetic Drive Pump features a 3/4" MNPT discharge with head capacity of 51'. The TE-6-MD-SC with a 1" FNPT Intake was specifically engineered to handle semi-corrosive fluids with high efficiency and long term dependability. Little Giant TE-6-MD-SC has glass-filled Polypropylene magnet housing, volute and impeller to ensure ultimate chemical resistance. Only chemical resistant materials are in contact with fluids. Glass-filled polypropylene Impeller with carbon bushing allows a Run-dry capability of up to eight hours without damage. Little Giant TE-6-MD-SC boasts leakproof, seal-less magnetic drive, Fluid Temperature operation up to 150F and Ambient Air Temperature up to 77F. Ceramic shaft seal, thrust washers and Viton parts are 99.5% pure alumina provide a longer service life, excellent wear and trouble-free service. Little Giant's powerful 1/2 HP TEFC thermally protected, totally enclosed, fan-cooled motor with ball bearings and thermal overload protection delivers 36.5 GPM of fluids at 9' total dynamic head. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Conduit box must be wired in field.

Features:

Run-dry capability of up to eight hours without damage;
Specific Gravity - up to 1.1;
Ambient Air Temperature - up to 77F;
Fluid Temperature - up to 150F;
Power cord not included;
Thermally protected, totally enclosed, fan cooled, split phase motor with ball bearings;
Conduit box (must be field wired);
Listings: UR/C-CSA;

Technical Specifications:

Motor: 1/2 HP TEFC;
RPM: 2850/3450;
Maximum flow rate: 38GPM (36.5 GPM @ 9');
Maximum Head: 51';
Intermittent Liquid Temp: 150F;
Specific gravity: 1.1;
Intake: 1" FNPT;
Discharge: 3/4" MNPT;
Voltage: 115/230 V;
Hertz: 50/60 Hz;
Watts: 835 W;
Weight: 29 lbs;
Height: 7";
Width: 8.75";
Length: 15.25";

Product Specs
Amperage:	11.6/9.4
Application	Mild to Strong Acids
Capacity (Gallons):	38
Cord Length:	6 Feet
Dimensions:	7"H x 8.75"W x 15.25"L
Flow at 5 FT Head:	2280 GPH
Hertz:	50/60
Horse Power	1/2
RPM:	2850/3450
Shutoff Head (ft.):	51'
Voltage	115/230v
Wattage	835
Weight (lbs):	29 lbs
