Automatic Sump Pump w/ Diaphragm Switch, 10' cord, 1/3HP, 115V

Automatic Sump Pump w/ Diaphragm Switch, 10' cord, 1/3HP, 115V
Views: 3175 Model: 506267
UPC: 010121062672

MPN: 506267


Weight:18.00 lb

Dimensions (L x W x H ): 11.00 x 11.00 x 10.00

Usually ships: 1 business days


Have any questions?
Contact us at 1-800-246-9552

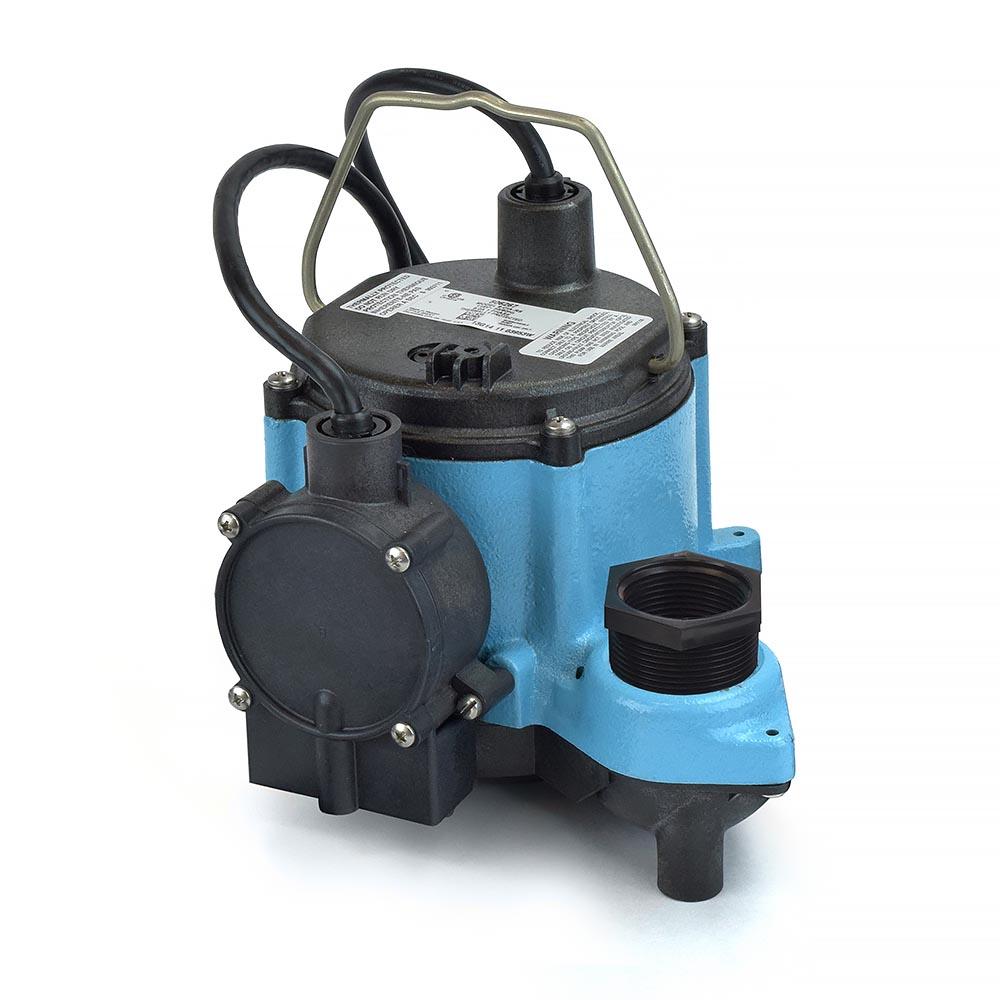

The 506267 from Little Giant is an Automatic Sump Pump w/ Diaphragm Switch, 10' cord, 1/3HP, 115V.

Little Giant 6-CIA-RS sump pump is intended for use in various residential and commercial applications, as well as other de-watering and liquid transfer applications. 6-CIA-RS pump model has a 1-1/2" FNPT discharge with an max. capability of 18ft of head. Features cast iron motor housing (oil-filled for lifetime lubrication), poly-carbonate cover, polypropylene volute-base and other corrosion resistant components.

Piggyback switch gives the user an ability to operate the pump in both automatic and manual operation modes. Additionally, piggyback diaphragm switch included with 6-CIA-RS model can be replayed, if necessary, eliminating the need to replace the entire pump.


  • 1/3 HP shaded pole motor with overload protection
  • Designed for continuous duty
  • Epoxy coated cast iron housing
  • 1-1/2" FNPT discharge. 1-1/4" reducing busing available
  • Carbon/ceramic shaft seal
  • Upper and lower sintered sleeve bearings
  • Automatic or Manual operation modes
  • UL / CSA listed

Technical Specifications:

  • Model: 6-CIA-RS
  • HorsePower: 1/3 HP
  • Max Flow: 2750 GPH @ 5ft of Head pressure drop
  • Cord Length: 10ft
  • Shut Off @ 18ft of head
  • Voltage: 115V
  • Hertz: 50/60Hz
  • Amps: 9A
  • Watts: 720W
  • Weight: 17.5 lbs
  • Dimensions (H x W x L): 7.3" x 7.3" x 9.5"
  • Certifications: UL, CSA.


  • 2 years manufacturer's warranty.
Product Specs
Flow at 5 FT Head:46 GPM
Shutoff Head (ft.):18
