Automatic Sump Pump w/ Diaphragm Switch, 25' cord, 1/3HP, 115V

Automatic Sump Pump w/ Diaphragm Switch, 25' cord, 1/3HP, 115V
Automatic Sump Pump w/ Diaphragm Switch, 25' cord, 1/3HP, 115V QR Code
QR-Code
Views: 10354 Model: 506125
UPC: 010121061255

MPN: 506125

Availability:Discontinued

Weight:19.00 lb

Dimensions (L x W x H ): 11.00 x 11.00 x 10.00

$158.95

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

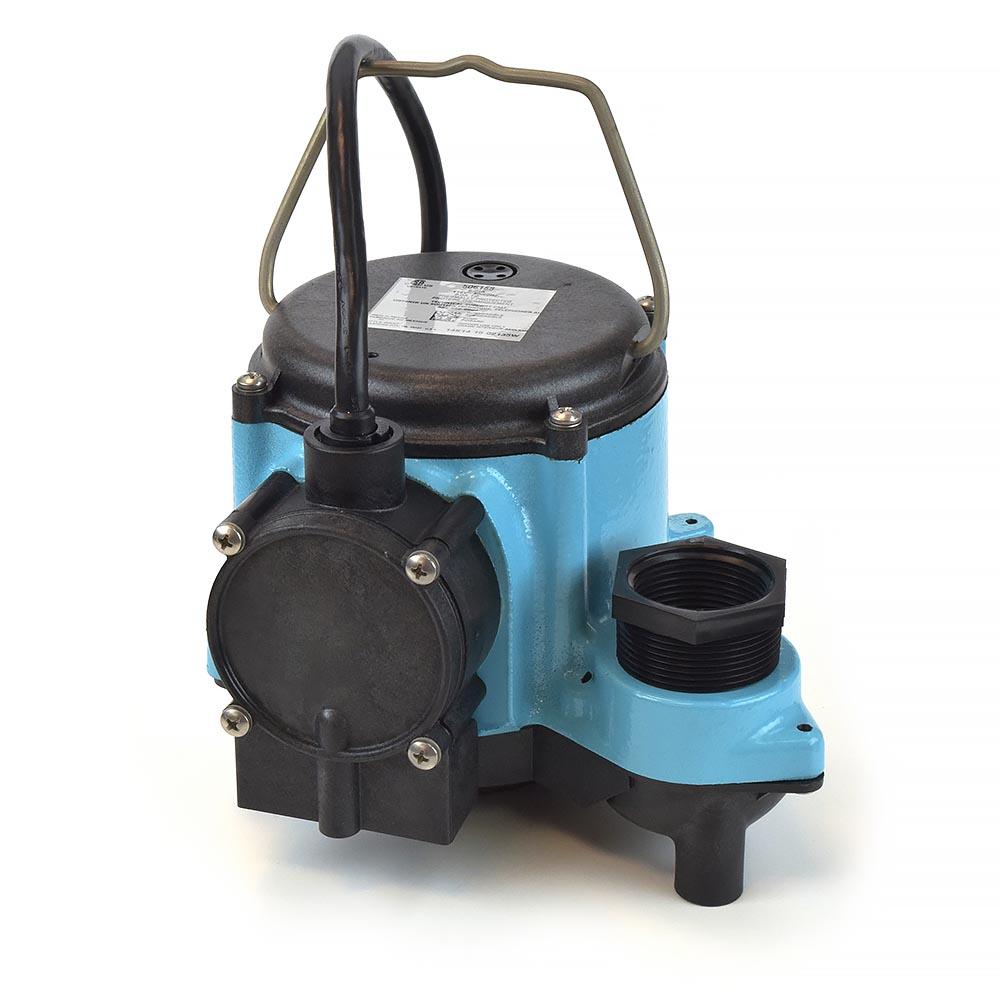

The 506125 from Little Giant is an Automatic Sump Pump w/ Diaphragm Switch, 1/3HP, 25' cord, 115V. This pump has a pressure switch which starts the pump at water levels of 7" to 10" and shuts off at 1" to 4" level.
Little Giant 6-CIA sump pump is designed for extended or continuous use in moving large volumes of water in residential and commercial applications. 6-CIA series sump pumps feature a 1-1/2" FNPT discharge with a maximum lift of 18ft of head, a polycarbonate cover, and a polypropylene volute/base, as well as cast iron housing, stainless steel components for enhanced corrosion resistance and built-in thermal overload protection.

Head (ft) Flow (GPH) Head (m) Flow (LPH)
5 46 1.5 174.1
10 29 3.0 109.8
15 12.5 4.6 47.3


Applications:
  • Dewatering flooded basements
  • Flood prevention
  • Liquid transfer applications


Features:
  • 1/3 HP shaded pole motor with overload protection
  • Designed for continuous duty
  • Epoxy coated cast iron housing
  • Inlet is 1-1/2" FNPT, with optional reducer to 1-1/4" FNPT (included)
  • Carbon/ceramic shaft seal
  • Upper and lower sintered sleeve bearings
  • UL / CSA listed


Technical Specifications:
  • Model: 6-CIA
  • HorsePower: 1/3 HP
  • Max. Flow: 46 GPM @ 5ft of Head pressure drop
  • Cord Length: 25ft
  • Shut Off @ 18ft of head
  • Voltage: 115V
  • Hertz: 50/60 Hz
  • Amps: 9A
  • Watts: 720W
  • Weight: 18.5 lbs
  • Dimensions (H x W x L): 6" x 8.5" x 9.5"
  • Certification: UL/CSA


Warranty:
  • 2 years from the date of installation.
