Drainosaur Compact Water Removal System w/ 9' cord, 3.5 gal., 1/3HP, 115V
Click Image for Gallery

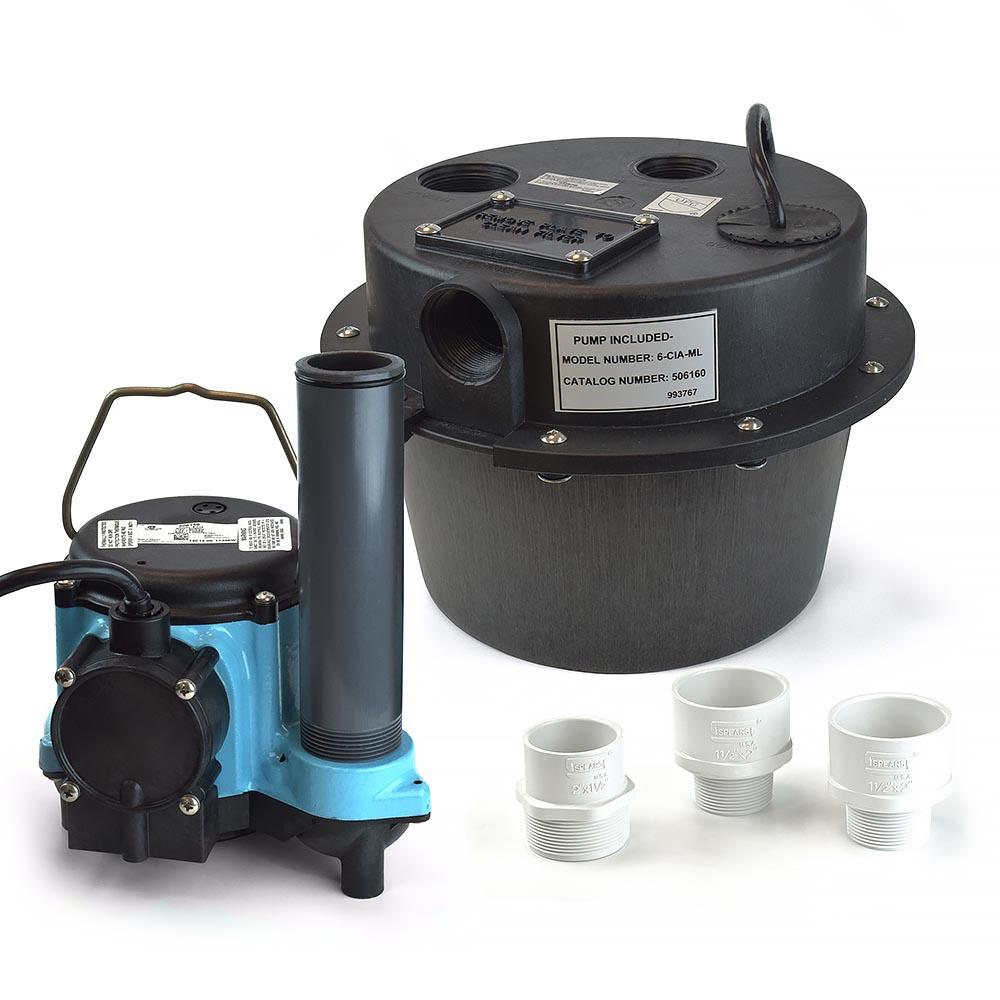

The 506065 from Little Giant is a Drainosaur Compact Water Removal System w/ 9' cord, 3.5 gallon capacity, 1/3HP, 115V. Tank has 1-1/2" FNPT side intake port, 1-1/2" FNPT top discharge port, and a 2" FNPT top vent port. Includes an easy-to-remove filter trap. When in automatic mode (default), the 6-CIA-ML pump has "On" level of 4"-7" and "Off" level of 1"-3".
Little Giant WRSC-6 Drainosaur Water Removal System removes water from laundry trays, lavatory sinks, wet bar sinks, dehumidifiers, air conditioners (condensate), water softeners, etc. WRSC-6 model installs above the floor level, so there's no need to dig a sump.
Head (ft) Flow (GPH) Head (m) Flow (LPH)
5 2750 1.5 10409.9
10 1750 3.0 6624.5
15 750 4.6 2839.1
Features:
- Pre-assembled for easy installation
- Two tank size options available (WRSC-6: compact
- WRS-6: standard)
- Cylindrical heavy-duty polypropylene basin tank, IAPMO approved
- Easy to remove filter trap
- UL / CSA listed
Technical Specifications:
- Model: WRSC-6
- Pump Horse Power: 1/3HP
- Max. Flow: Up to 45GPM at 5ft of head pressure drop
- Cord Length: 8ft
- Shut Off @ 18ft of head
- Voltage: 115V
- Hertz: 60Hz
- Amps: 9A
- Watts: 720W
- Weight: 25 lbs
- Dimensions: 10" High x 14.5" Wide
- Certification: UL/CSA
Warranty:
- 2 years from the date of installation.
Product Specs | |
Amperage: | 9 |
Approvals: | UL/CSA |
Cord Length: | 8 Feet |
Dimensions: | 14.5"W x 10.5"H |
Discharge: | 1-1/2" FNPT |
Flow at 10 FT Head: | 29 GPM |
Flow at 15 FT Head: | 12 GPM |
Flow at 5 FT Head: | 45 GPM |
Horse Power | 1/3 |
Max Pressure (PSI): | 7.8 |
Shutoff Head (ft.): | 18 |
Size1 | 3.5 Gallon |
Type1 | Automatic |
Voltage | 115v |
Wattage | 720 |
Weight (lbs): | 24 lbs |
