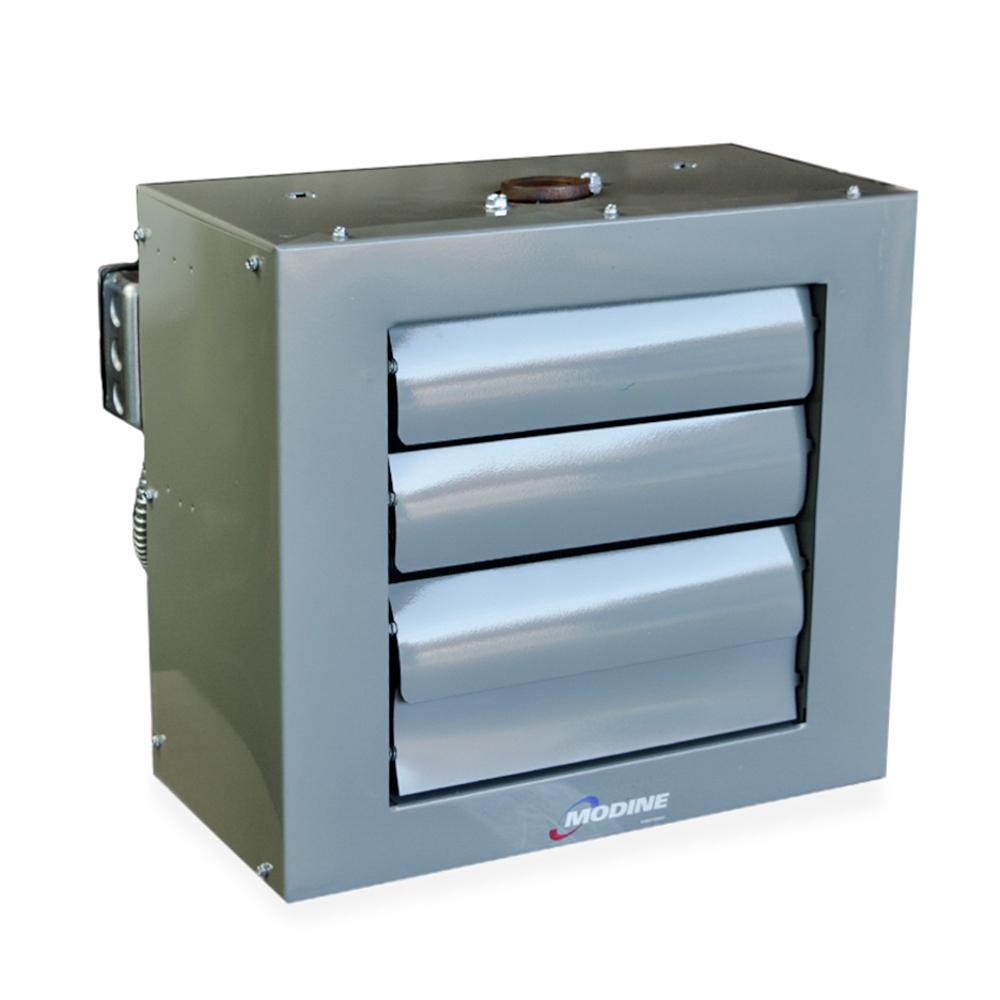

HSB47 Hot Water (Hydronic) Unit Heater - 47,000 BTU
Click Image for Gallery
Modine HSB series are propeller (fan) type hot water unit heaters which utilize hot water from a boiler, indirect heater or other source. These heaters are a great solution for applications where gas or oil fuel use is impractical or avoided for safety reasons. HSB heaters have steel male threaded connections located on the top and bottom - allowing to rotate the unit 360° without changing the piping.
Technical Specifications:
Technical Specifications:
- BTU/Hr: 47,000 (Steam) / 30,900 (Hot Water)
- Final Air Temperature (°F): 119 (Steam)/98 (Hot Water)
- Heat Throw (ft.): @ Max Mounting Height: 28 (Steam) / 30 (Hot Water)
- Maximum Mounting Height: 12ft (Steam)/ 13ft (Hot Water)
- Approx. weight: 36 lbs
- Dimensions (W x H x D): 17-1/2" x 15" x 8-3/4"(16-3/4" with standard motor)
- Views: 688
-
- Model: HSB47
- MPN: HSB47SB01SA
- Availability: 5 - 7 Days
- Usually ships: Upon availability
- $ 783.35
