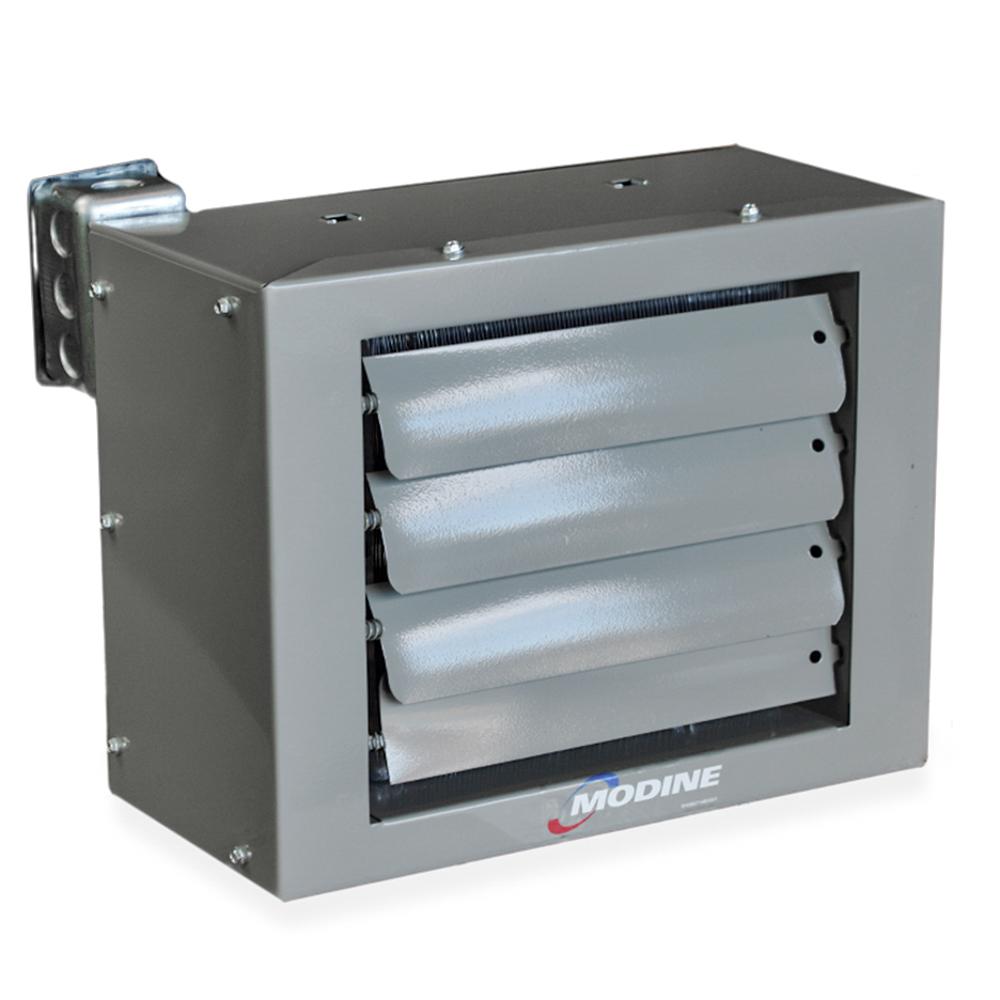

HC24 Hot Water (Hydronic) Unit Heater - 24,000 BTU

HC24 Hot Water (Hydronic) Unit Heater - 24,000 BTU
Modine HC series are propeller (fan) type hot water unit heaters which utilize hot water from a boiler, indirect heater or other source. These heaters are a great solution for applications where gas or oil fuel use is impractical or avoided for safety reasons. HC heaters have copper pipe connections located on the side - for low-clearance installation.

Technical Specifications:
  • BTU/Hr: 24,000 (Steam) / 16,200 (Hot Water)
  • Final Air Temperature (°F): 119 (Steam)/ 100 (Hot Water)
  • Heat Throw (ft.): @ Max Mounting Height: 18 (Steam) / 19 (Hot Water)
  • Maximum Mounting Height: 9ft (Steam)/ 10ft (Hot Water)
  • Approx. weight: 20 lbs
  • Dimensions (W x H x D): 12-3/4" x 11-1/2" x 6" (12-1/2" with standard motor)

Write a review

Please login or register to review
  • Views: 519
  • HC24 Hot Water (Hydronic) Unit Heater - 24,000 BTU QR Code
    QR
  • Model: HC24
  • MPN: HC24SB01SA
  • Availability: 2 - 3 Days
  • $ 615.95
