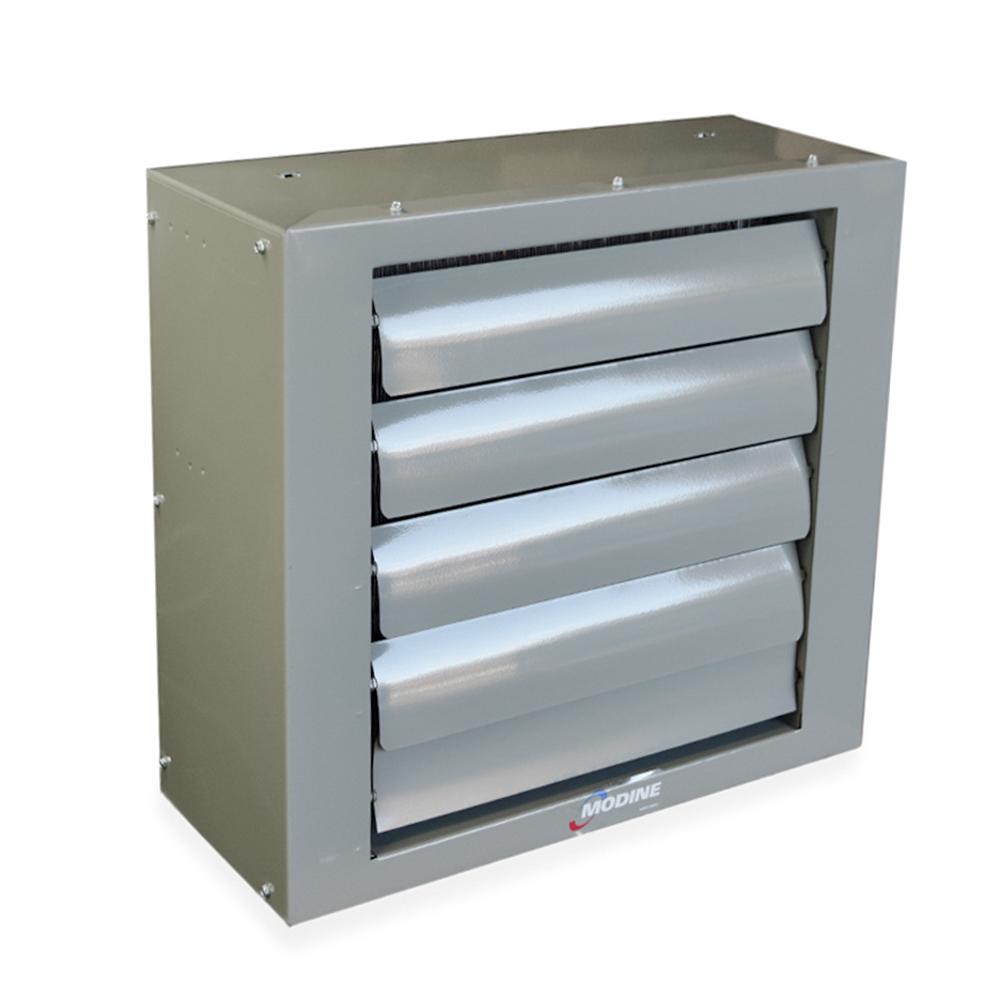

HC193 Hot Water (Hydronic) Unit Heater - 193,000 BTU

HC193 Hot Water (Hydronic) Unit Heater - 193,000 BTU
Modine HC series are propeller (fan) type hot water unit heaters which utilize hot water from a boiler, indirect heater or other source. These heaters are a great solution for applications where gas or oil fuel use is impractical or avoided for safety reasons. HC heaters have copper pipe connections located on the side - for low-clearance installation.

Technical Specifications:
  • BTU/Hr: 193,000 (Steam) / 143,000 (Hot Water)
  • Final Air Temperature (°F): 121 (Steam)/105 (Hot Water)
  • Heat Throw (ft.): @ Max Mounting Height: 38 (Steam) / 41 (Hot Water)
  • Maximum Mounting Height: 18ft (Steam)/ 19ft (Hot Water)
  • Approx. weight: 98 lbs
  • Dimensions (W x H x D): 32-1/2" x 30-1/2" x 9-1/4 (18-1/2" with standard motor)

Write a review

Please login or register to review
  • Views: 422
  • HC193 Hot Water (Hydronic) Unit Heater - 193,000 BTU QR Code
    QR
  • Model: HC193
  • MPN: HC193SB01SA
  • Availability: 10 - 14 Days
  • $ 1 685.95
