1” Sweat Zone Valve w/ End Switch, 18” leads

-14%

Click Image for Gallery

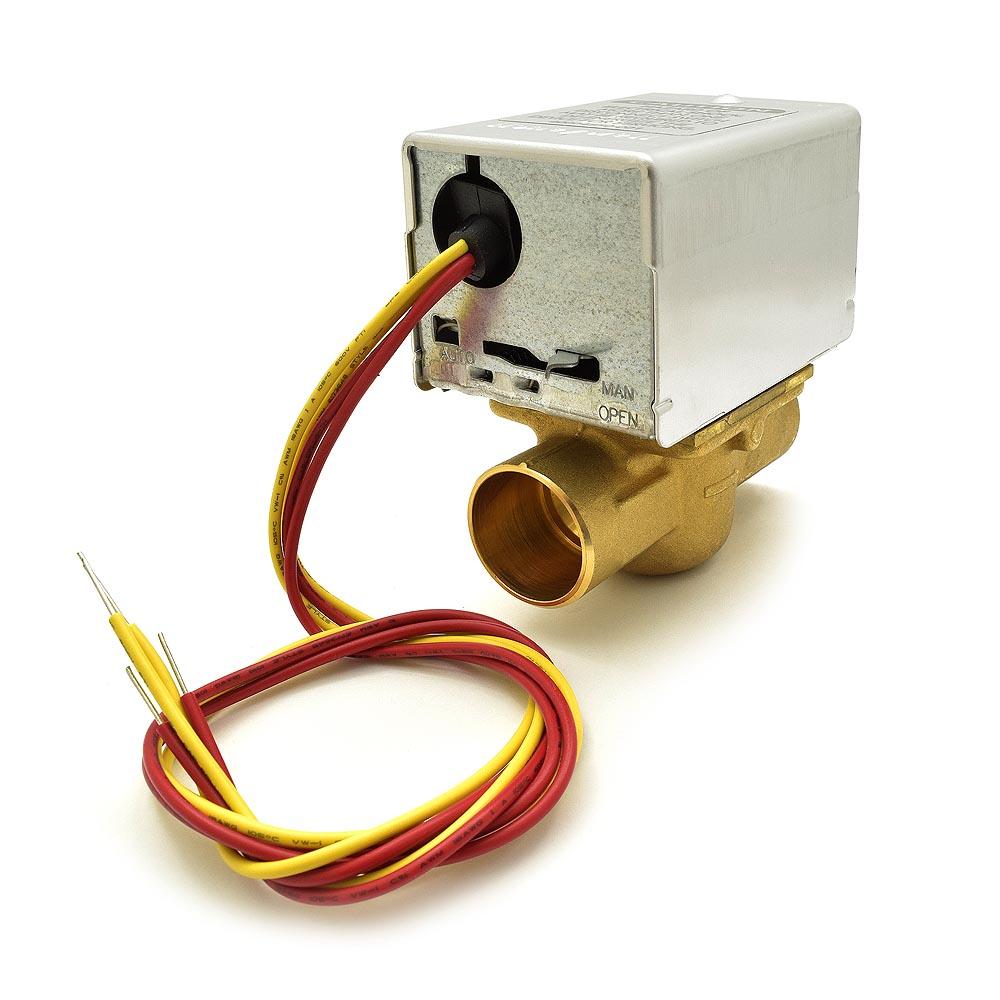

The V8043E1079 from Honeywell is a 1” Sweat Zone Valve w/ End Switch, 18” leads. It consists of an actuator and valve assembly for controlling the flow of hot water.

Features:

All models may be installed without disassembling the valve
Compact construction for easy installation
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
Motor may be replaced without removing the valve body or draining the system
Suitable for heating and cooling applications.

Technical Specifications:

Application: Hydronic Control
Dimensions (Height x Width x Depth): 4" x 3 11/16" x 2 3/8" (102mm x 94mm x 60mm)
Comments: Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water
Valve designed for cycling (not constantly powered on) applications.
Frequency: 50 Hz, 60 Hz
Approvals: UL Listed
Operating Humidity Range (% RH): 5 to 95% relative humidity, non-condensing
Voltage: 24 Vac, Power Consumption - 7.7 VA
Timing: Nominal Open - 15 sec
Maximum Ambient Temperature: 125°F (52°C)
Connection Type: Sweat
Pipe Size (inch): 1" (DN25)
Body Pattern: Two-way, Straight-through
Current Draw: 0.32 A
Fluid Temperature: 50°F to 200°F (10°C to 90°C)
Maximum Differential Pressure Ratings (Close-off): 8 psi (55 kPa)
Electrical Connections: 18" (457mm) leads
Capacity: 8 Cv (6.9 Kv)
Valve Action: Spring Return to Close
Materials: Body - Brass, Seat - Brass, Stem - Stainless Steel
Materials (Plug/Ball/Disc): Buna-N (NBR) Rubber Ball
Materials (Packing): EPDM rubber
Actuation: Two position
De-energized Position: Normally Closed
Static Pressure Rating: 125 psi (862 kPa)
Manual Opener: Yes
End Switch Rating: 50VA pilot duty @ 24V, 4.4A running with 26.4A inrush @ 120V
Auxiliary End Switch: N.O. SPST.

Product Specs
Application	Zoning
Body Pattern:	Straight-Through
Connection Type	Sweat
Depth (Inches):	2-3/8"
End Switch:	Yes
Flow Capacity (Cv):	8
Height	4"
Hertz:	60
Material1	Brass
Max Ambient Temp (°F):	125°F
Max Close-Off PSI:	8 psi
Max Temp.	200°F
Min Temp.	50°F
Nominal Timing:	15 Seconds
Position:	Normally Closed
Power Consumption:	7.7 VA
Size1	1"
Static Pressure:	125 psi
Temperature Range (F):	50°-200°F
Valve Action:	Spring Return to Close
Voltage	24v
Width (Inches):	3-1/2"
Wiring:	18" Leads

Views: 9417
Model: V8043E1079
MPN: V8043E1079
