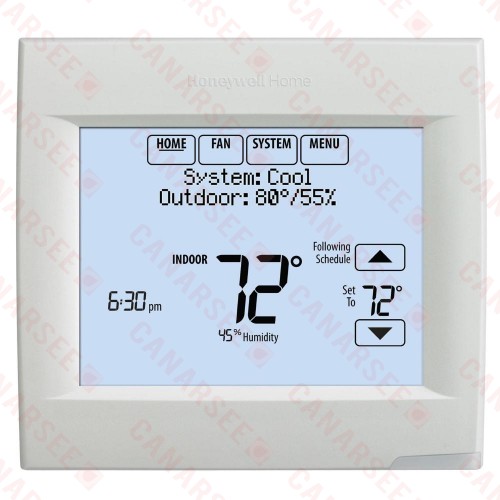

VisionPRO 8000 Smart Wi-Fi Programmable Thermostat, 2H/2C Conventional or 3H/2C Heat Pump + Aux. Heat

VisionPRO 8000 Smart Wi-Fi Programmable Thermostat, 2H/2C Conventional or 3H/2C Heat Pump + Aux. Heat
Honeywell/Resideo TH8321WF1001 is a programmable, Wi-Fi enabled touchscreen thermostat designed for up to 2-stage heating / 2-stage cooling conventional or 3-stage heating and 2-stage cooling heat pump system w/ optional emergency heat. Systems include, but not limited to: gas/oil/electric heat with/without a/c, high efficiency furnaces, geathermal radiant heat, heat pumps, etc. This thermostat is a powerhouse packed with features, including remote access and control via Total Connect Comfort app, commercial mode (with 365-day programming), detailed IAQ ( incl. ventilation, humidification and dehumidification) control, smart reminders (filter change, etc.), keypad lockout and many others.

Technical Specifications:
  • Programmability: Programmable, 7-Day or Non-Programmable
  • Stages: 2 Heat / 2 Cool Conventional or 3 Heat / 2 Cool Heat Pump - gas, oil or electric heat with air conditioning / warm air, hot water, high efficiency furnaces, heat pumps, steam and gravity / cool only
  • Fan Settings: Auto, On, Circ, Follow Schedule
  • Changeover: Auto or Manual
  • Interface: Touchscreen
  • Display: Monochrome
  • Display Size: 10 sq in.
  • Mounting: Horizontal
  • Color: White
  • Electrical Ratings: 24V (18-30 Vac, 0.50A-1.00A max.- varies by terminal); 750mVdc
  • Power Method: Hardwired Only (C-wire)
  • Terminal Designations: R, RC, S C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1
  • Dual Fuel: Yes
  • Setting Temperature Range: Heat 40°F - 90°F; Cool 50°F - 99°F
  • Humidification Setting Range: 10% to 60% RH
  • Dehumidification Setting Range: 40% to 80% RH
  • Humidity Display Range: 0% to 99%
  • Connection Protocol: Wi-Fi
  • Dimensions (Height x Width x Depth): 4.6" x 5.0" x 1.1" (118mm x 126mm x 29mm)
  • Packaged Weight: 13 oz


Features:
  • Wi-Fi enabled, designed for use with Total Connect Comfort app
  • Optional commercial mode - uses commercial language, meets building codes and offers 365 day scheduling (w/ holidays)
  • Large, illuminated (adjustable continuous or on-demand), touchscreen display
  • Indoor/outdoor sensor compatible
  • Displays time, mode, indoor & setpoint temperature, outdoor temperature & humidity (if sensor wired) at the same time
  • Ventilation, humidification or dehumidification control
  • Service reminders (up to 10)
  • Adaptive Intelligent Recovery (optional setting) is an improved version or Early Start - the system optimizes start time to reach desired temperature by programmed time settings
  • Keypad lockout
  • Temporary or permanent temperature override
  • Optional 12/24 hour format with DST
  • Fahrenheit (F) or Celsius (C) display mode
  • Vacation hold mode

Write a review

Please login or register to review
  • Views: 925
  • VisionPRO 8000 Smart Wi-Fi Programmable Thermostat, 2H/2C Conventional or 3H/2C Heat Pump + Aux. Heat QR Code
    QR
  • Model: TH8321WF1001
  • MPN: TH8321WF1001
  • Availability: 1
  • $ 234.60
