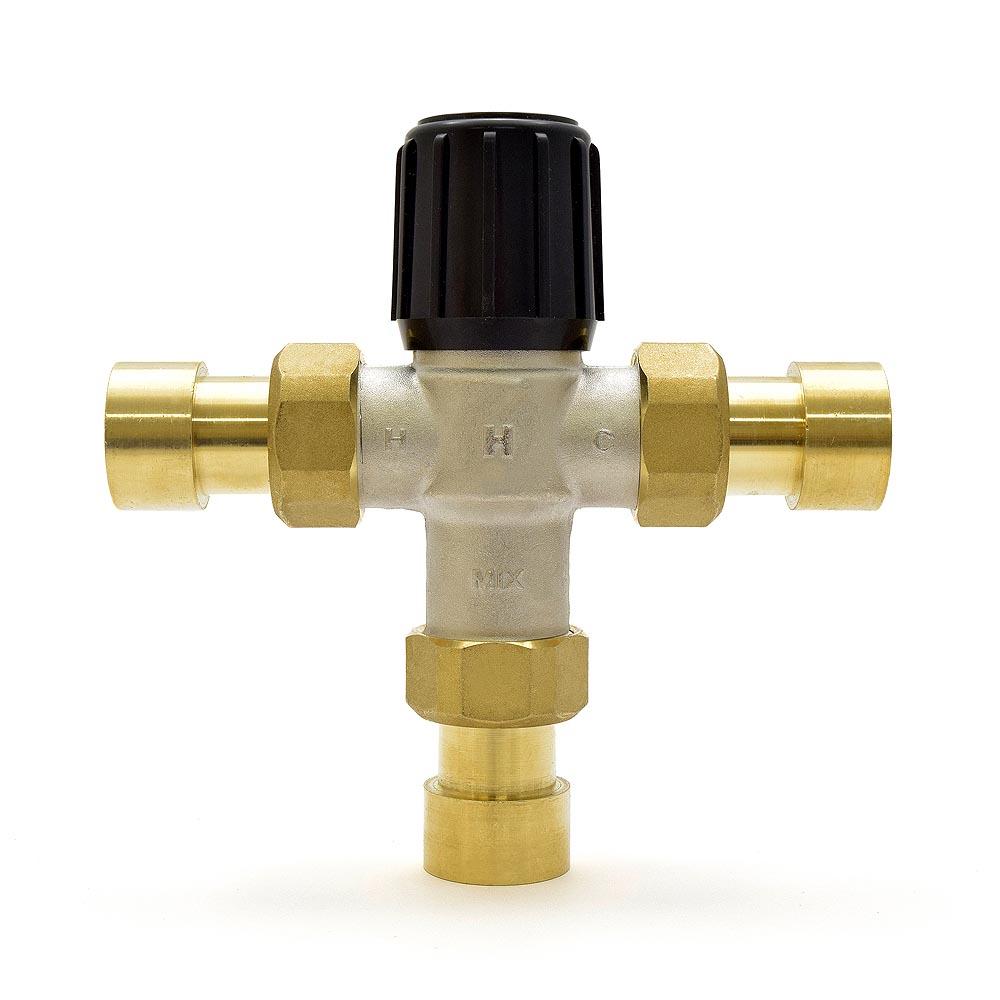

1” Union Sweat Mixing Valve (Heating Valve), 70-180F

Click Image for Gallery

1” Union Sweat Mixing Valve (Heating Valve), 70-180F QR Code

QR Views: 8704

Model: AM102R-US-1
UPC: 085267825498

MPN: AM102R-US-1

Availability:26

Weight:2.30 lb

Dimensions (L x W x H ): 7.00 x 4.00 x 4.00

Usually ships: 1 business days

$123.95

Qty: Add to Cart

Add to Wish List Add to Compare

1 reviews • Write a review

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Description Specification Reviews (1)

The AM102R-US-1 from Honeywell is a 1” Union Sweat Mixing Valve (For Heating Only), 70F-180F. Teflon coated spool and body prevent mineral build-up and extend valve life.
The Honeywell AM-1 series offers scalding protection, bacteria growth control and designed for easy maintenance and element replacement.

Features:

HEATING ONLY (Not for potable usage)
Temperature limit at any point
Flow reduction in seconds if cold water supply is interrupted
Proportional valve (simultaneous control of hot and cold water)
High performance thermoplastic proportioning shuttle
Straight through design (hot and cold at the same level)
Lockable hand wheel for accurate temperature control
Constant water temperature under changing operating conditions
Reliable performance at minimum flow of 0.5 gpm
Max. pressure 150 psi (1034 kPa)
Max temperature 212 F (100 C)
Nickel-plated brass construction, EPDM O-rings
Designed for easy maintenance and element replacement.
Tamper resistent design
Valve trapping not required
U.S. Patent No. 6,079,625

Technical Specifications:

Connection Type: Union Sweat
Connection Size: 1" (DN25)
Operating Temperature Range: 70F to 180F
Capacity (Cv): 3.9 Cv
Max Flow GPM: 16
Min Flow Rate: 0.5

Product Specs
Application:	Point of Source
Connection Type:	Sweat
Flow Capacity (Cv):	3.9
Max Temp (F):	180°F
Min Temp (F):	70°F
Size:	1"
Temperature Range (F):	70°F - 180°F
Type:	Mixing Valve
