3/4” Union Sweat Mixing Valve (Heating Only), 70-180F

3/4” Union Sweat Mixing Valve (Heating Only), 70-180F
3/4” Union Sweat Mixing Valve (Heating Only), 70-180F QR Code
Views: 8843 Model: AM101R-US-1
UPC: 085267825214

MPN: AM101R-US-1


Weight:2.00 lb

Dimensions (L x W x H ): 7.00 x 4.00 x 4.00

Usually ships: 1 business day(s)
Qty: Add to Cart


Have any questions?
Contact us at 1-800-246-9552

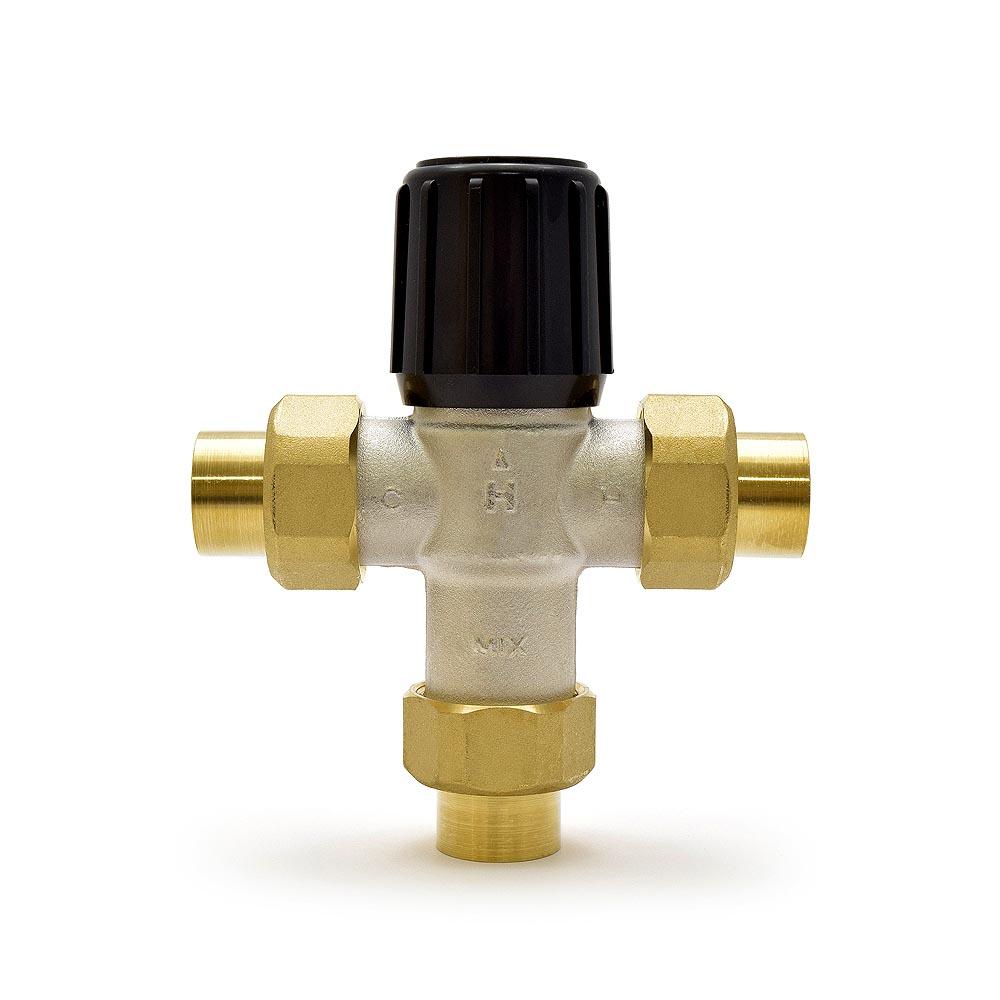

The AM101R-US-1 from Honeywell is a 3/4” Union Sweat Mixing Valve (For Heating Only), 70F-180F. It meets the most stringent safety standards in the industry and improves typical water heater installations.
This mixing valve accurately adjusts, maintains and limits the hot water temperature to a desired setting. It prevents the growth of bacteria and helps prevent scalding.


  • Radiant floor heating
  • Space heating
  • Heat pump systems
  • Domestic water
  • Public facilities
  • Automatic faucets
  • Others.


  • Designed to increase the amount of usable hot water by up to 50 percent
  • Constant water temperature under changing operating conditions
  • Teflon coating increases product life and reduces callbacks
  • Reliable performance at minimum flow of 0.5 gp
  • Lockable hand wheel for accurate temperature control
  • Internal Check Valve
  • Included Thermostrip Makes temperature setting easy for one person to handle.

Technical Specifications:

  • Model: R Model (Heating ONLY)
  • Operating Temperature Range: 70-180F
  • Certification: None
  • Connection Type: Union Sweat
  • Connection Size: 3/4"
  • Max Flow GPM: 12
  • Min Flow Rate: 0.5
  • CV: 3.9.
Product Specs
Application:Point of Source
Connection Type:Sweat
Flow Capacity (Cv):3.9
Max Temp (F):180°F
Min Temp (F):70°F
Temperature Range (F):70°F - 180°F
Type:Mixing Valve
