FocusPRO 5000 Non-Programmable Thermostat w/ Large Display, 2H/2C Conv. or 2H/1C Heat Pump
-34%
Click Image for Gallery

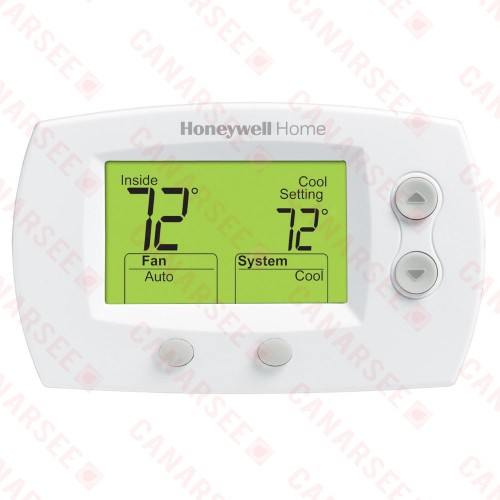

Honeywell TH5220D1029 FocusPRO 5000 thermostat offers all the benefits of a digital thermostat, but without the difficulties with programming schedule. This model is designed for up to 2-stage heat / 2-stage cool gas, oil or electric-powered heating systems with air conditioner or 2-stage heat / 1-sate cool heat pumps with aux heat. It can also be used for heat-only or cool-only applications. FocusPRO 5000 series is packed with features, including extra-large backlit display, selectable automatic or manual changeover, easy battery change and many others.
Technical Specifications:
Features:
Technical Specifications:
- Programmability: Non-Programmable
- Stages: 2 Heat / 2 Cool Conventional or 2 Heat / 1 Cool Heat Pump with Aux. Heat (Gas, oil, or electric heat with air conditioning / Warm air, hot water, high efficiency furnaces, heat pumps, steam, gravity / Heat only with fan / Cool only / 750 mV heating systems)
- Fan Settings: Auto, On
- Changeover: Auto or Manual
- Interface: Soft Button
- Display: Monochrome
- Mounting: Horizontal
- Color: White
- Electrical Ratings: 24V (20-30 Vac, 0.02-0.50A or 0.02-1.00A - varies by terminal), 750mV DC
- Power Method: Battery (2 x AA) or Hardwired (terminal C) with Battery Backup
- Terminal Designations: Rc, R, W (O/B), W2 (AUX), Y, Y2 (E), G, L, C
- Dual Fuel: No
- Setting Temperature Range: Heat 40°F - 90°F; Cool 50°F - 99°F
- Ambient conditions: 32 to 120°F, 5 to 90% RH, non-condensing
- Dimensions (Height x Width x Depth): 3.6" x 5.8" x 1.5"
- Packaged Weight: 12.2 oz
Features:
- Extra-large, easy to read, backlit display
- Easy battery change (no need to remove thermostat cover) & low-battery warning
- Selectable automatic or manual changeover
- Displays ambient and setpoint temperature at all times
- "Heat On", "Cool On", etc. mode on screen when operational for visual confirmation
- Positive "Off" mode
- 1°F temperature accuracy
- Built-in compressor protection
| Product Specs | |
| Category | FocusPRO |
| Interface | Button |
| Mounting | Horizontal |
| Programmability | Non-Programmable |
| Stages | 2 Heat / 2 Cool;2H/2C Heat Pump |
