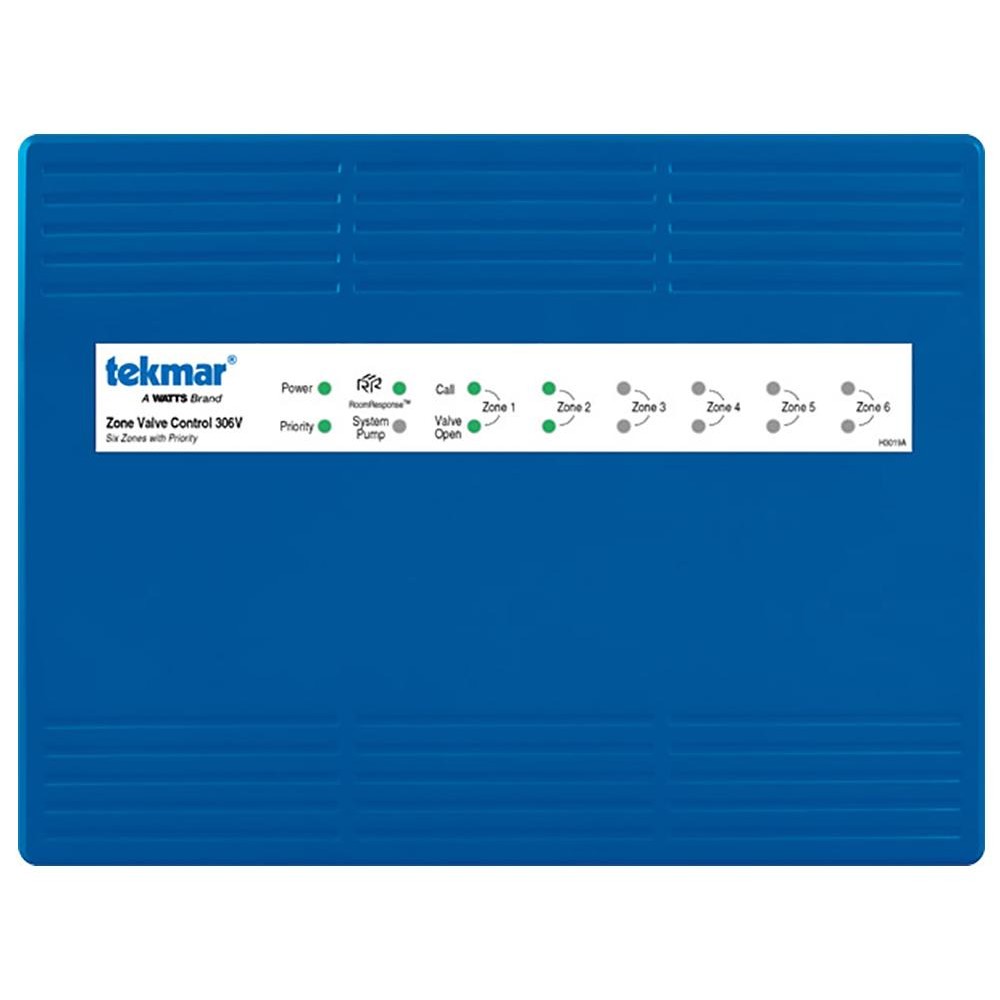

306V, 6-Zone Valve Control w/ Priority, Expandable

306V, 6-Zone Valve Control w/ Priority, Expandable
306V, 6-Zone Valve Control w/ Priority, Expandable QR Code
QR-Code
Views: 1800 Model: 306V


Availability:1

Weight:5.95 lb

Dimensions (L x W x H ): 11.50 x 8.50 x 3.00

Usually ships: 1 business day(s)
$179.95
Qty: Add to Cart

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

Zone Valve Control Six Zones with Priority
  • Zones: 6
  • Control: Microprocessor Control
  • Power supply: 115 VAC, 60 Hz, 11 A
  • Transformer Rating: 80 VA
  • Control load: 7 VA
  • Fuses: T5 250 V slow blow, two spare fuses included
  • Zone valve outputs: 24 VAC, 2 A max each, 73 VA total
  • Zone valve end switch: 24 VAC
  • Pump relays: 230 VAC, 5 A, 1/3 HP
  • Boiler XX end switch: 24 VAC, 5 A
  • DHW end switch: 24 VAC, 5 A
  • Mod boiler output: 0-10 V 500 ohm min load impedance, 4-20 mA 1 k ohm max load impedance
  • Materials: ABS Plastic (Cover), Galvanized Steel (Base) NEMA type 1
  • Dimensions: 8-3/16" x 10-11/16" x 2-3/8"
  • Packaged weight: 6 lbs

3-year warranty
