20" x 56" Hydronic Panel Radiator w/ Brackets, Model 21

20" x 56" Hydronic Panel Radiator w/ Brackets, Model 21

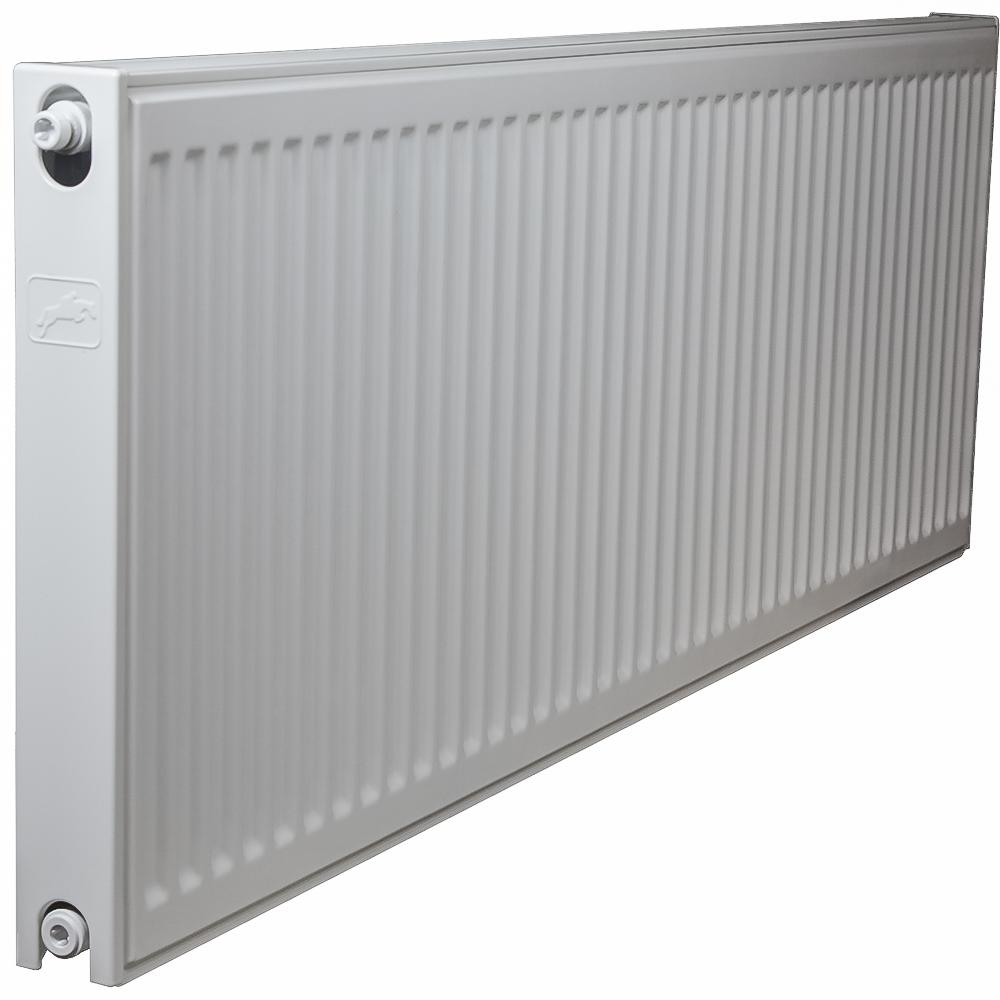

20" high x 56" wide x 2-7/8" deep, hydronic (hot water) steel panel radiator with mounting brackets and hardware.
NOTE: a pair of pipe adapters are required to connect supply and return piping to the radiator and are sold separately (use part# 551016844 for 1/2" copper pipe, 551646850 for 1/2" PEX or PEX-AL-PEX, 551646851 for 5/8" PEX or PEX-AL-PEX).

Technical Specifications:
  • Dimensions (H x L x D): 20" x 56" x 2-7/8"
  • BTU Output @120°F: 2,468
  • BTU Output @140°F: 3,935
  • BTU Output @160°F: 5,508
  • BTU Output @180°F: 6,980
  • Water Content (Gal): 1.58
  • Max Operating Pressure: 145 psi
  • Max Operating Temperature: 200°F


Features:
  • Radiator includes mounting brackets w/ hardware, air vent (manual bleeder style), (2) drain plugs and thermostatic valve body with manual cap
  • Powder coated white finish is highly resistant to scratching and can be painted
  • Compatible with all piping configurations - parallel, series and dedicated
  • Combines convection with radiant heat to offer better efficiency than baseboard and higher level of comfort
  • Compact design means lower footprint
  • Wide operating temperature range (120-180F) ensures compatibility with virtually all types and combinations of hot water heating systems
  • Quiet - no screeching or hissing common with baseboards and steam radiators
Panel Radiators
BTU @ 120F 2,468
BTU @ 140F 3,935
BTU @ 160F 5,508
BTU @ 180F 6,980
Depth 2-7/8"
Height 20"
Length 56"
Series 21
Product Specs
Product Type Panel Radiators

Write a review

Please login or register to review
  • Views: 1089
  • Model: BM-21-20X56
  • MPN: BM-21-20X56
  • Availability: In Stock
  • Usually ships: within 1 business day(s)
  • $ 385.95
