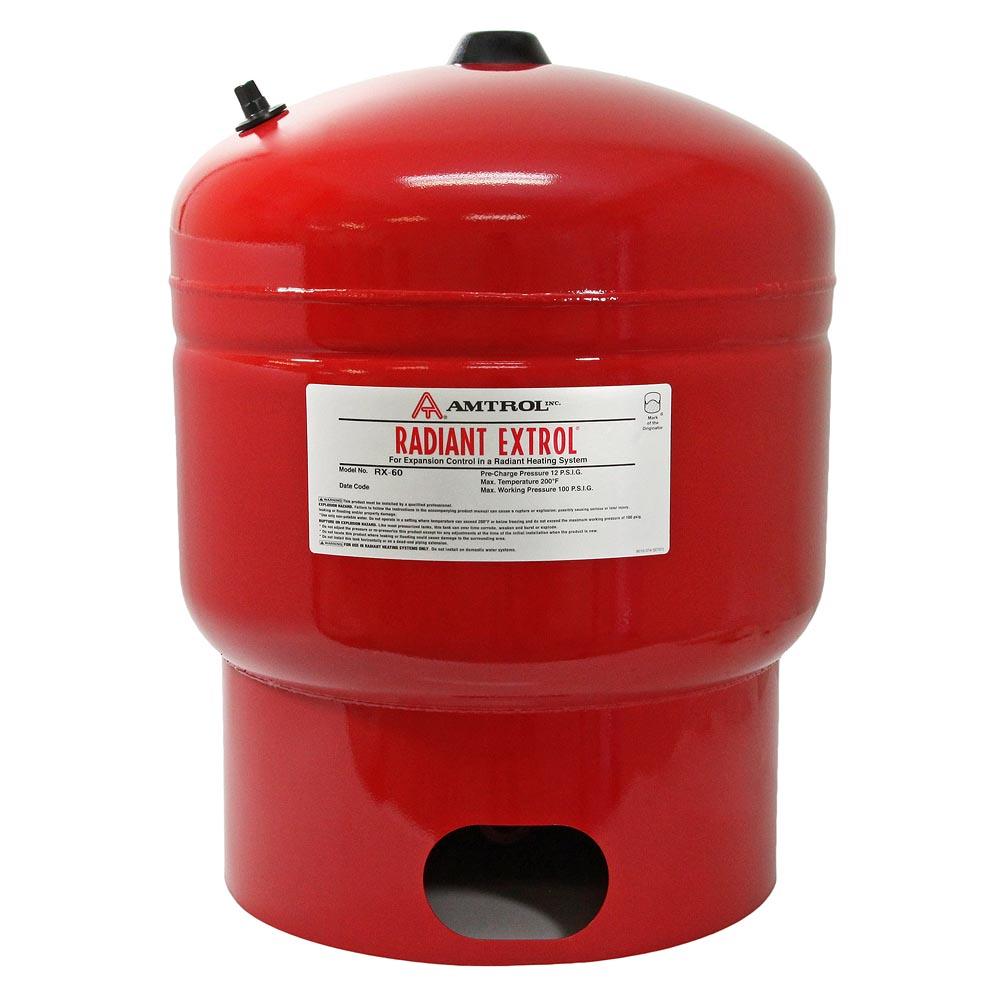

Amtrol 143-381 Radiant Extrol RX-60 Expansion Tank 10.3 G

Click Image for Gallery

The 143-381 from Amtrol is a Radiant Extrol RX-60 Expansion Tank (10.3 gal). It's designed for use in open loop or closed loop high efficiency radiant heating systems and are also suitable for glycol mix systems, typical for snow melting applications.

Technical Specifications:

Factory pre-charged 12 psi;
System connection: 3/4" female threaded;
Corrosion resistant system connection;
Max. operating temperature: 200F;
Max. operating pressure: 100 psig;
Expansion tank volume: 10.3 gallons;
Max. accepted volume: 10.3 gallons;
Height: 19-1/4";
Diameter: 15-3/8";
Shipping weight: 23 lbs.

Warranty:

5-year manufacturer's warranty.

Product Specs
Application	Heating
Capacity (Gallons):	10.3
Diameter (Inches):	15.375"
Height	19.25"
Max Accepted Volume:	10.3 Gallons
Max Pressure (PSI):	100
Max Temp.	200°F
Precharged PSI:	12 psi
Tank Volume	10.3 Gallons
Thread Size:	3/4"
Thread Type:	Female
Warranty	5-Year Limited Warranty

Views: 12031
Model: 143-381
MPN: 143-381
Availability: Discontinued
Usually ships: Upon availability
