Radiant Mixing Block

Radiant Mixing Block

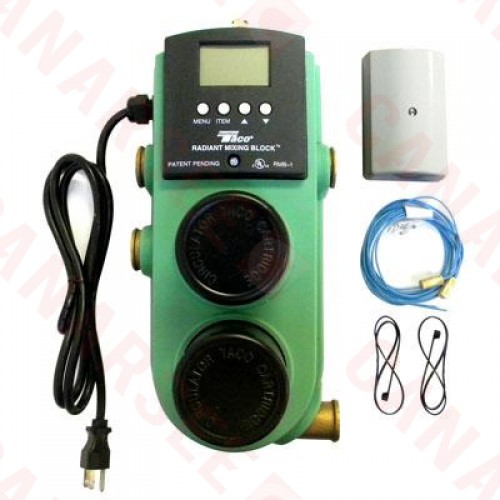

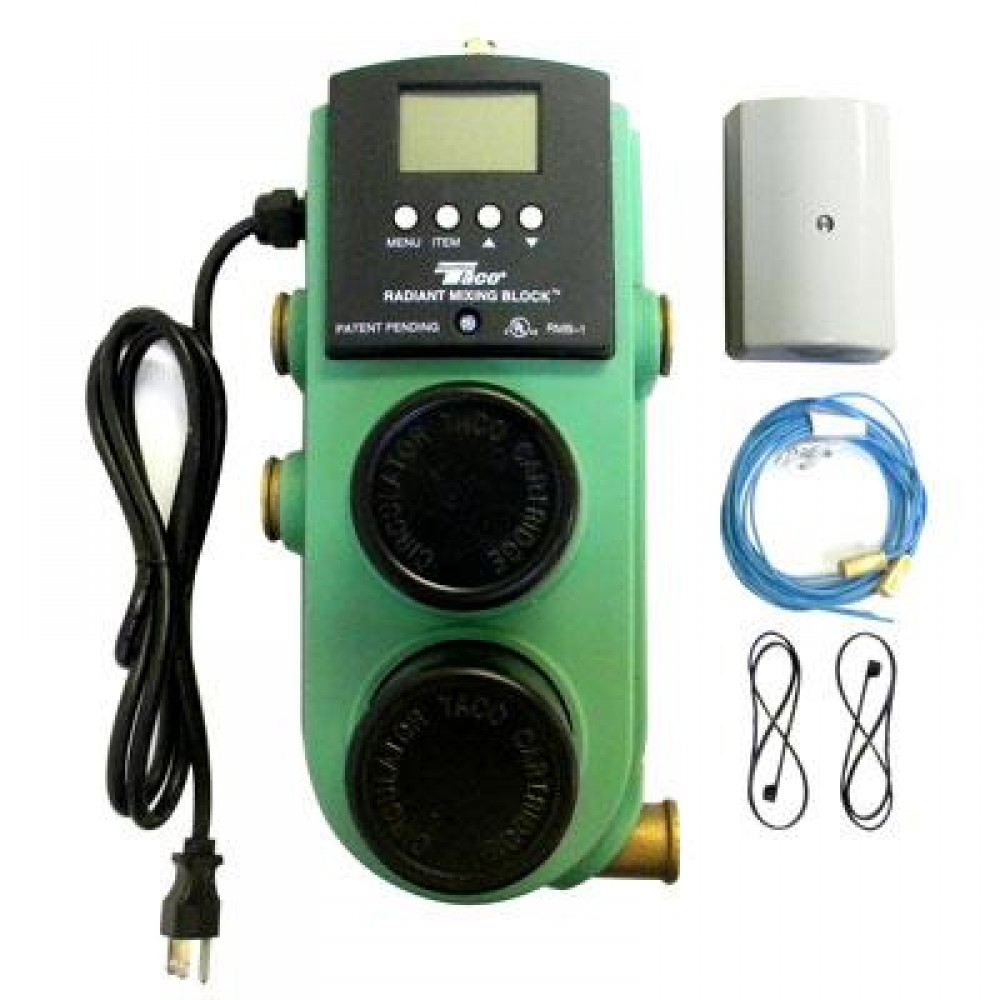

The RMB-1 from Taco is a Radiant Mixing Block. It's an all-in-one injection mixing system, which combines a variable speed injection mixing control, 2 circulators - injection and system and an air elimination device. This item works as an outdoor reset control, a set point control or a delta T limiting control. It also eliminates the need for special piping, closely spaced tees, balancing valve and complex wiring. Only four connections and the installation is complete.


Features:

  • Plug-In, Low Voltage Connections;
  • Solid Stage Microprocessor;
  • Replaceable Cartridge Design;
  • Maintenance-Free, Wet-Rotor Circulators;
  • Bronze Casing for Open or Closed Systems.
Product Specs
Ambient Conditions: Indoor Use Only
Application Mixing
Connection Type Female NPT
Display: LCD
Features: Outdoor Reset
Flow Range (GPM): 0 to 15.5 gpm
Head Range (ft.): 0-15
Includes: Line Cord
Max Pressure (PSI): 125
Size1 3/4"
Temperature Range (F): 32°F to 185°F

Write a review

Please login or register to review
  • Views: 3579
  • Radiant Mixing Block QR Code
    QR
  • Model: RMB-1
  • MPN: RMB-1
  • Availability: 5 - 7 Days
  • $ 1 745.95
