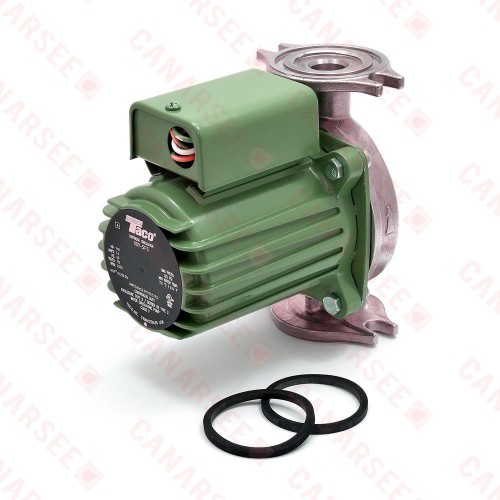

Taco 009-SF5 Stainless Steel Circulator Pump, 1/8 HP, 115V

Taco 009-SF5 Stainless Steel Circulator Pump, 1/8 HP, 115V

The 009-SF5 from Taco is a Stainless Steel Circulator Pump, 1/8HP, 115V. It's designed for use in high head and low flow applications in hydronic, radiant heating, domestic water recirculation and other closed or open loop recirculation applications. Taco 009-SF5 features a field-serviceable cartridge which allows to replace the cartrigde without replacing the entire circulator.


Applications:

  •  Hydronic Heating/Cooling
  •  Radiant Heating
  •  Applications with High Pressure Drop (High Head)
  •  Wood Boilers / Furnaces
  •  Hydro-Air Fan Coils
  •  And others


Electrical Data:

  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 1.40A;
  • HP: 1/8HP;


Technical Specifications:

  • •Flow Range: 0 – 10 GPM;
  • •Head Range: 0 – 35 Feet;
  • •Minimum Fluid Temperature: 40˚F (4˚C);
  • •Maximum Fluid Temperature: 230°F (110˚C);
  • •Maximum Working Pressure: 125 psi;
  • •Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged


Warranty:

  • 3 year manufacturer's warranty.
Product Specs
Amperage: 1.4
Application Heating
Connection Size: 1"
Connection Type Flanged
Flow Range (GPM): 0-10
Head Range (ft.): 0-35
Hertz: 60
Horse Power: 1/8
Material1 Stainless Steel
Max Flow (GPM): 10
Max Head (Ft): 35
Max Pressure (PSI): 125
Phase: 1
RPM: 3250
Temperature Range (F): 40° to 230°F
Type1 Pump
Voltage 115v
Warranty: 3-Year Warranty
