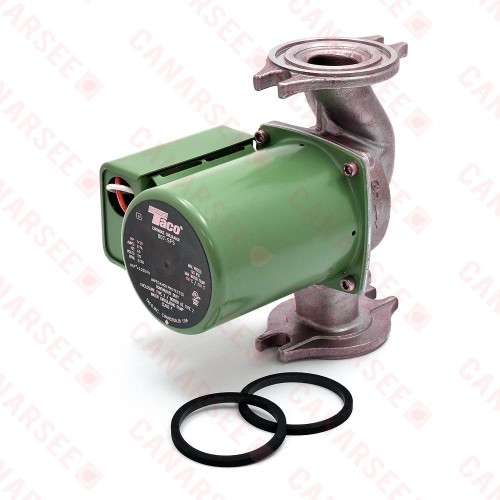

Taco 007-SF5 Stainless Steel Circulator Pump, 1/25 HP, 115V

Taco 007-SF5 Stainless Steel Circulator Pump, 1/25 HP, 115V

The 007-SF5 from Taco is a Stainless Steel Circulator Pump, 1/25HP, 115V. It's one of the most popular hydronic circulators sold today. Features a field serviceable cartridge design and provides a quiet, efficient operation and unmatched reliability. It has a self-lubricating, maintenance free design and it's flow parameters make it an ideal circulator for a wide range of open and closed loop hydronic heating, radiant heating, solar heating and many other applications. Taco 007-SF5 circulator pump is a cartridge style, wet-rotor, in-line, single stage circulator pump. It is designed for quiet operation in Hydronic heating, Radiant heating, Hydro-Air fan coils, Indirect water heaters, Chilled fresh water, and Domestic Water Recirculation systems.

Taco 007-SF5 model replaces:
Grundfos UP15-29SF;
B&G SSF-12F/LW;
the older Taco 007-BF5 Bronze model.


Applications:

  • Open or Closed Loop Radiant Heating;
  • Hydronic Heating / Cooling;
  • Indirect Water Heaters;
  • Domestic Water Recirculation;
  • Solar Systems;
  • Fan Coils;
  • And many others;


Electrical Specifications:

  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 0.76A;
  • HP: 1/25HP;


Technical Specifications:

  • Flow Range: 0 – 23 GPM;
  • Head Range: 0 – 10 Feet;
  • Minimum Fluid Temperature: 40˚F (4˚C);
  • Maximum Fluid Temperature: 230°F (115˚C);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged

Warranty:

  • 3 year manufacturer's warranty.
Product Specs
Amperage: 0.76
Application Heating
Connection Size: 3/4"
Connection Type Flanged
Flow Range (GPM): 0-23
Head Range (ft.): 0-10
Hertz: 60
Horse Power: 1/25
Material1 Stainless Steel
Max Flow (GPM): 23
Max Head (Ft): 10
Max Pressure (PSI): 125
Phase: 1
Replaces: 007-BF5
RPM: 3250
Temperature Range (F): 40° to 230°F
Type1 Pump
Voltage 115v
Warranty: 3-Year Warranty

Write a review

Please login or register to review
  • Views: 4688
  • Taco 007-SF5 Stainless Steel Circulator Pump, 1/25 HP, 115V QR Code
    QR
  • Model: 007-SF5
  • MPN: 007-SF5
  • Availability: 1
  • $ 398.95
