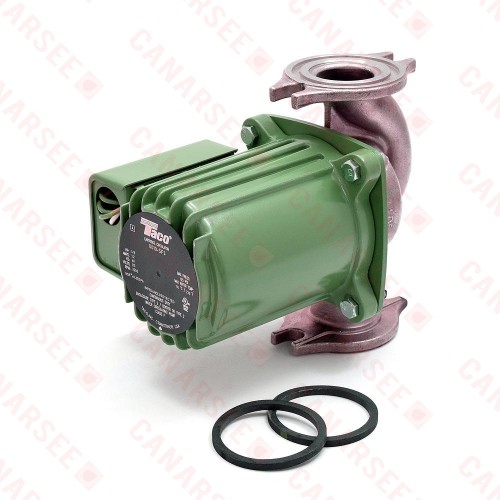

Taco 0010-SF3 Stainless Steel Circulator Pump, 1/8 HP, 115V

Taco 0010-SF3 Stainless Steel Circulator Pump, 1/8 HP, 115V

The 0010-SF3 from Taco is a Stainless Steel Circulator Pump, 1/8HP, 115V. It's designed for a wide range of large residential and light commercial applications with medium head/higher flow requirements. Common uses include hydronic heating, radiant floor heating, indirect water heaters, chilled water cooling, and domestic hot water systems. Stainless Steel Taco 0010-SF3 Circulator Pump is also perfect for all open-loop, fresh water systems. Features a unique replaceable cartridge which allows for easy replacement, instead of replacing the entire circulator. Taco 0010-SF3 Circulator pump is compact, direct-drive, features low power consumption and is ideal or high-efficiency jobs.

Taco 0010-SF3 replaces: Grundfos UP15-35SF.


Electrical Data:

  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 1.17A;
  • HP: 1/8HP;


Technical Specifications:

  • Flow Range: 0 – 32 GPM;
  • Head Range: 0 – 10 Feet;
  • Minimum Fluid Temperature: 40˚F (4˚C);
  • Maximum Fluid Temperature: 230°F (110˚C);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged.


Warranty:

  • 3 year manufacturer's warranty
Product Specs
Amperage: 1.17
Application Heating
Connection Size: 1"
Connection Type Flanged
Flow Range (GPM): 0-32
Head Range (ft.): 0-10
Hertz: 60
Horse Power: 1/8
Material1 Stainless Steel
Max Flow (GPM): 32
Max Head (Ft): 10
Max Pressure (PSI): 125
Phase: 1
RPM: 3250
Temperature Range (F): 40° to 230°F
Type1 Pump
Voltage 115v
Warranty: 3-Year Warranty

Write a review

Please login or register to review
  • Views: 4505
  • Taco 0010-SF3 Stainless Steel Circulator Pump, 1/8 HP, 115V QR Code
    QR
  • Model: 0010-SF3
  • MPN: 0010-SF3
  • Availability: Discontinued
  • $ 422.95
