UP15-29SU Stainless Steel Circulator Pump, 1-1/4” Union, 1/8 HP, 115V

UP15-29SU Stainless Steel Circulator Pump, 1-1/4” Union, 1/8 HP, 115V
UP15-29SU Stainless Steel Circulator Pump, 1-1/4” Union, 1/8 HP, 115V QR Code
QR-Code
Views: 6635 Model: 59896775
UPC: 632514174535

MPN: 59896775

Availability:13

Weight:6.00 lb

Dimensions (L x W x H ): 8.00 x 6.00 x 7.00

Usually ships: 1 business days
$318.95
Qty: Add to Cart

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

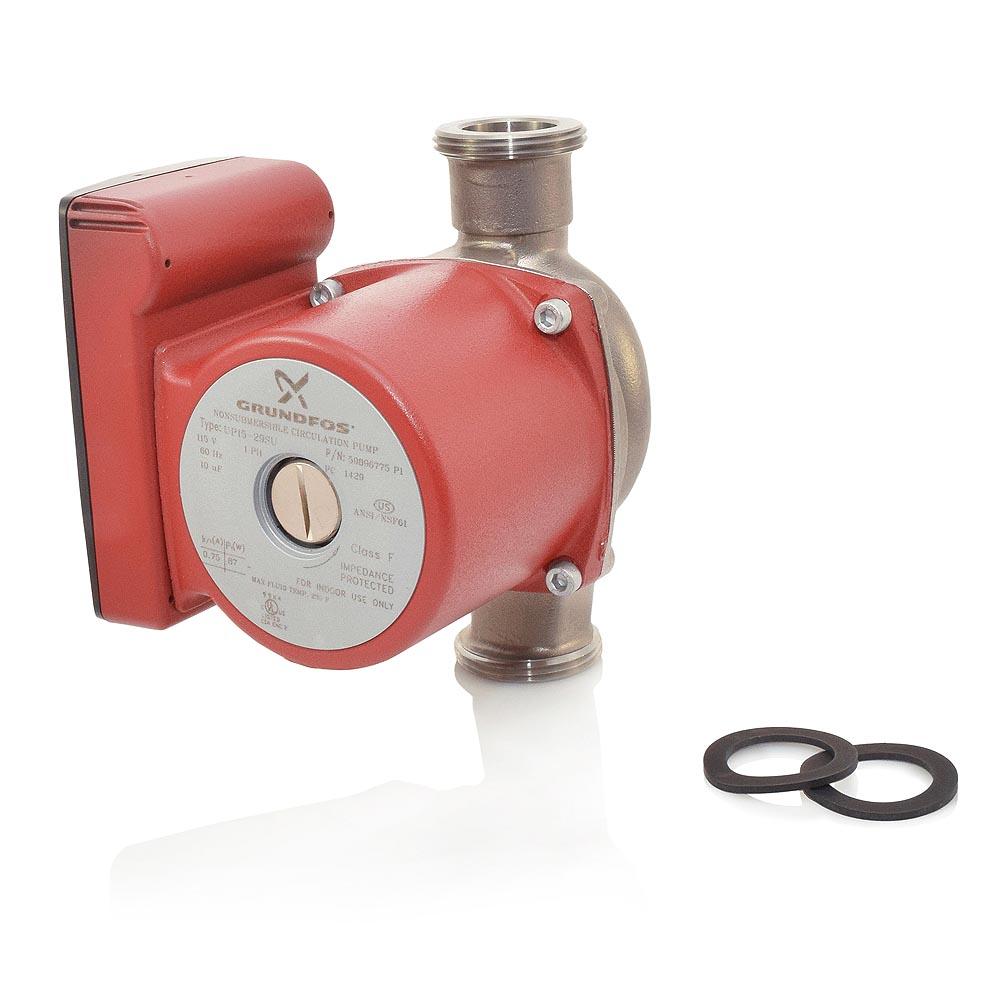

The 59896775 from Grundfos is a UP15-29SU Stainless Steel, Flanged Circulator Pump w/ 1-1/4” Union connection, 1/6HP, 115V. This item is used in open or closed loop heating systems, like radiant heating, hydronic heating, hot water recirculation, solar and more.

Features:

  • Built-in motor protection for longer life;
  • Quiet operation;
  • Stainless Steel circulator body;
  • UL/CSA listed
  • Includes (2) Gaskets;


Technical Specifications:

  • Voltage: 115V;
  • Amperage: 0.42 Amps;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Watts: 97W;
  • Max Pressure: 145 psi;
  • Max Temperature: 230F;
  • Min Temperature: 36F;
  • Flow Range: 0-20.5 GPM;
  • Head Range: 0-9.7 ft;
  • Horse Power: 1/6HP;
  • Body: Stainless Steel;
  • Connections: GU125 (1-1/4” Union)


Manufacturer's warranty:

  • 2 years from date of installation.
Product Specs
Amperage:0.42
Application:Heating
Connection Size:3/4"
Connection Type:Union
Flow Range (GPM):0-20.5
Head Range (ft.):0-9.7
Hertz:60
Horse Power:1/12
Material:Stainless Steel
Max Flow (GPM):20.5
Max Head (Ft):9.7
Max Pressure (PSI):145
Phase:1
Replaces:UP15-18SU
Temperature Range (F):36°-230°F
Type:1-Speed Pump
Voltage:115v
