UP10-16PMB5/LC Comfort Pump w/ Line Cord, 1/2” Sweat, 115/208-230V

UP10-16PMB5/LC Comfort Pump w/ Line Cord, 1/2” Sweat, 115/208-230V
UP10-16PMB5/LC Comfort Pump w/ Line Cord, 1/2” Sweat, 115/208-230V QR Code
QR-Code
Views: 7569 Model: 98420206
UPC: 571149471260

MPN: 98420206

Availability:Discontinued

Weight:2.51 lb

Dimensions (L x W x H ): 8.00 x 6.75 x 4.00

$190.95

ORDERS OVER $99 SHIP FREE

Have any questions?
Contact us at 1-800-246-9552

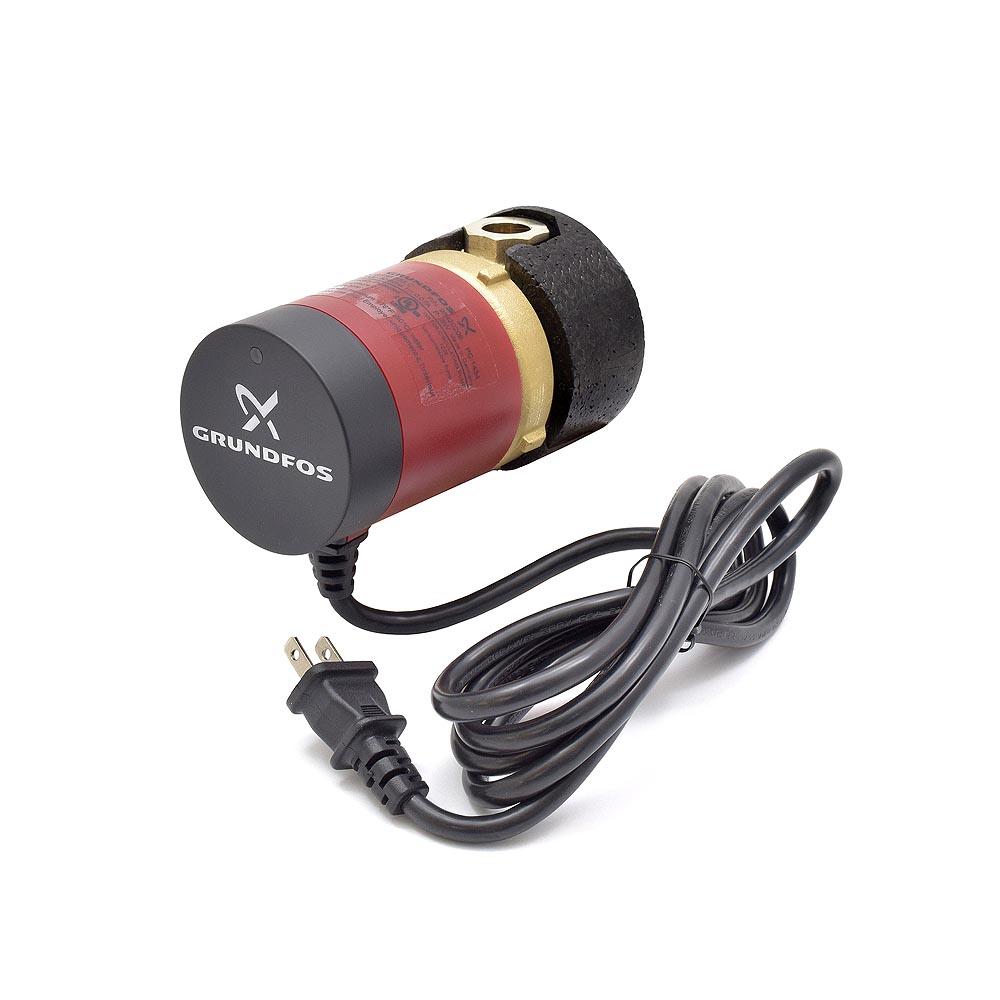

The 98420206 from Grundfos is a UP 10-16 PMB5/LC Comfort pump, 1/2” Sweat, Line Cord, 115/208-230V. It's designed for recirculation of domestic hot water in single-family homes with dedicated hot-water return piping.


Features:

  • Lower energy consumption;
  • Minimize water waste;
  • Easy Installation.

Technical Specifications:

  • Connection: 1/2" Sweat;
  • Flow Range: 0-2.2 GPM (0-0.5 m³/h);
  • Head Range: 0-3.9 ft (0-1.2 m);
  • Phase: 1;
  • Housing: EcoBrass;
  • Maximum Liquid Temperature: 185°F (85°C);
  • Minimum Liquid Temperature: 36° (2°C);
  • Maximum System Pressure: 145 psi (10 bar);
  • Voltage: 115/208-230V;
  • Amperage: 0.23 Amps;
  • Power: 5-8.5 Watts.
Product Specs
Connection Size: 1/2"
Connection Type: Sweat
Includes: Line Cord
Max Flow (GPM): 2.2
Max Head (Ft): 3.9
Max Pressure (PSI): 145
Phase: 1
Temperature Range (F): 36°F to 185°F
Type: Pump
Voltage: 115v
